VX405C

M/MA Module

Carrier

The VX405C carrier provides the mechanical and electrical interfaces between the VXIbus and up to six

(6) VITA 12-1996 standard M/MA Modules. The carrier provides VXI register configuration and access to the M/MA modules I/O space and memory (if present). Each M/MA module is controlled separately and appears as a different Logical Address in the VXI environment. Over 200 M/MA modules are available that can provide custom interfacing to the unit under test (UUT). Up to six (6) unique instruments or interfaces may be provided in a single VXI slot.

Specifications:

Number of M/MA Modules Carried:

•Up to six(6). Each appears as an independent VXI instrument.

Unique Logical Address for each M/MA Module:

•Can be configured for sequential numbering or Modulo-8 numbering for Agilent Command Module compatibility.

M/MA Module Triggers:

•TRIGA or TRIGB of M/MA module may be connected to any VXI TTL Trigger under software control.

Connectors:

•Each M/MA Module has its own front panel and connectors.

Indicators:MODID

SYSFAIL

M/MA Module Access (6)

Power: +5V @ 1.3 A typical Plus M/MA Power +12V and –12V provided to the

M/MA Modules but not used by the carrier.

VXIbus Compliance

Complies with ANSI/IEEE Std 1014- 1987, IEC8921, and VXIbus Rev 1.4

A16/24/32:D8/16/32 Slave

SYSFAIL: Supported

Interrupts: ROAK, programmable levels

BRX tied to BGX

TTL Triggers: Supports I/O synchronous (SYNC) trigger protocol

Form Factor: Size C

M/MA Module Interrupts:

•Each module interrupt can have a software programmable VXI IRQ level.

M/MA Module Identification:

•M/MA IDENT function supported.

Ordering Information

Description

Part Number

M/MA Mod. Carrier

11027050-0001

Applications

•Multiple instrument types in a single VXI slot.

•Port customer interfaces from ITA to a VXI slot

•VXI ATE “glue logic”

Page 1 Page 1
Page 1

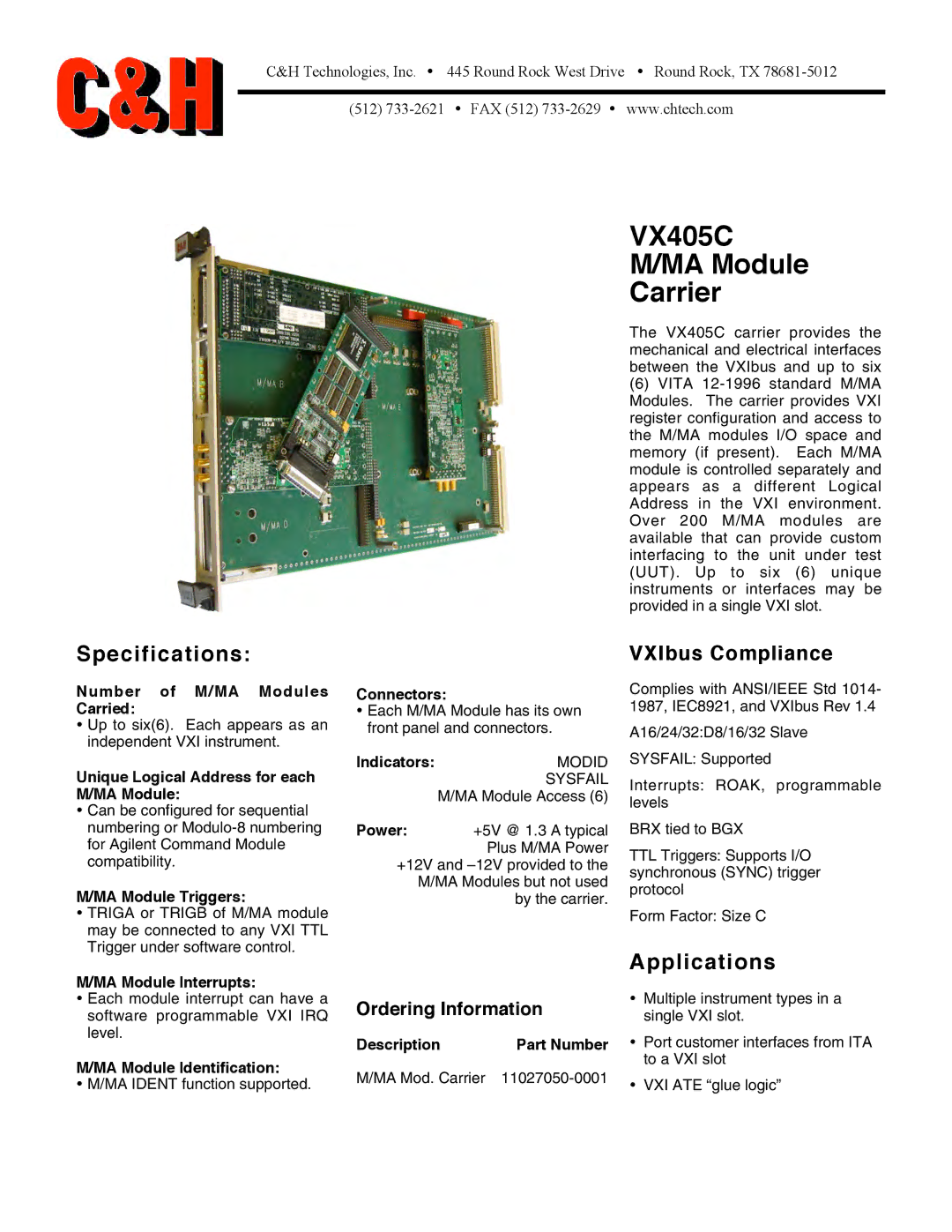

Image 1
