F L O O D L I G H T I N G

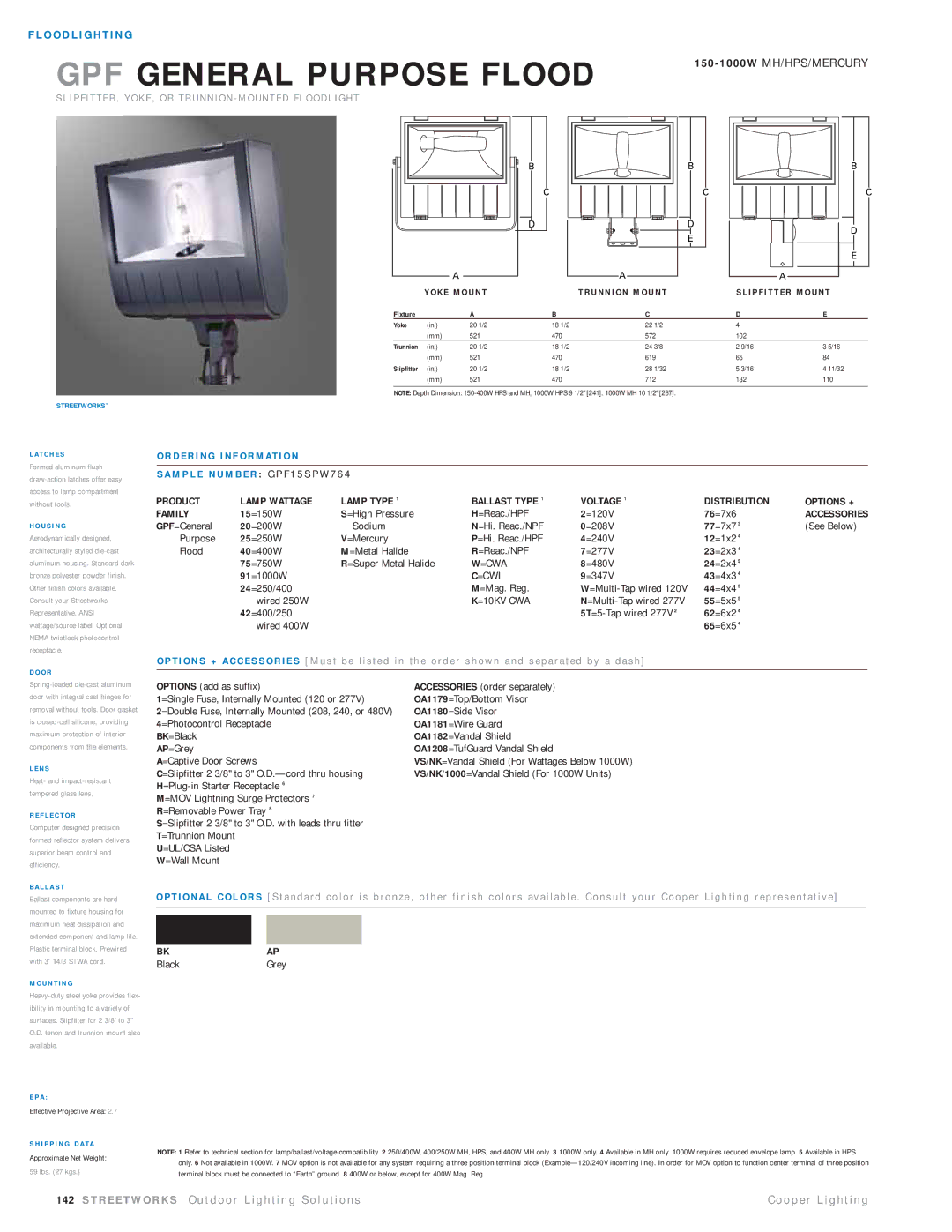

GPF GENERAL PURPOSE FLOOD |
|
| |
S L I P F I T T E R , Y O K E , O R T R U N N I O N - M O U N T E D F L O O D L I G H T |
|
A
B
C
D
B |
C |
D |
E |
A
B |
C |
D |
E |
A
| Y O K E M O U N T |
| T R U N N I O N M O U N T | S L I P F I T T E R M O U N T | |||
Fixture |
| A | B | C |
| D | E |
Yoke | (in.) | 20 1/2 | 18 1/2 | 22 | 1/2 | 4 |
|
S | (mm) | 521 | 470 | 572 | 102 |
| |
Trunnion | (in.) | 20 1/2 | 18 1/2 | 24 | 3/8 | 2 9/16 | 3 5/16 |
| (mm) | 521 | 470 | 619 | 65 | 84 | |
Slipfitter | (in.) | 20 1/2 | 18 1/2 | 28 | 1/32 | 5 3/16 | 4 11/32 |
| (mm) | 521 | 470 | 712 | 132 | 110 | |
NOTE: Depth Dimension:
STREETWORKS™
L AT C H E S
Formed aluminum flush
H O U S I N G
Aerodynamically designed, architecturally styled
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : G P F 1 5 S P W 7 6 4
PRODUCT | LAMP WATTAGE | LAMP TYPE 1 | BALLAST TYPE 1 | VOLTAGE 1 | DISTRIBUTION | OPTIONS + |
FAMILY | 15=150W | S=High Pressure | H=Reac./HPF | 2=120V | 76=7x6 | ACCESSORIES |
GPF=General | 20=200W | Sodium | N=Hi. Reac./NPF | 0=208V | 77=7x7 3 | (See Below) |
Purpose | 25=250W | V=Mercury | P=Hi. Reac./HPF | 4=240V | 12=1x2 4 |
|
Flood | 40=400W | M=Metal Halide | R=Reac./NPF | 7=277V | 23=2x3 4 |
|
| 75=750W | R=Super Metal Halide | W=CWA | 8=480V | 24=2x4 5 |
|
| 91=1000W |
| C=CWI | 9=347V | 43=4x3 4 |
|
| 24=250/400 |
| M=Mag. Reg. | 44=4x4 5 |
| |
| wired 250W |
| K=10KV CWA | 55=5x5 5 |
| |
| 42=400/250 |
|
| 62=6x2 4 |
| |
| wired 400W |
|
|
| 65=6x5 4 |
|
D O O R
O P T I O N S + A C C E S S O R I E S [ M u s t b e l i s t e d i n t h e o r d e r s h o w n a n d s e p a r a t e d b y a d a s h ]
L E N S
Heat- and
R E F L E C T O R
Computer designed precision formed reflector system delivers superior beam control and efficiency.
B A L L A S T
OPTIONS (add as suffix)
1=Single Fuse, Internally Mounted (120 or 277V)
2=Double Fuse, Internally Mounted (208, 240, or 480V)
4=Photocontrol Receptacle BK=Black
AP=Grey
A=Captive Door Screws
C=Slipfitter 2 3/8" to 3"
M=MOV Lightning Surge Protectors 7 R=Removable Power Tray 8
S=Slipfitter 2 3/8" to 3" O.D. with leads thru fitter T=Trunnion Mount
U=UL/CSA Listed W=Wall Mount
ACCESSORIES (order separately) OA1179=Top/Bottom Visor OA1180=Side Visor OA1181=Wire Guard OA1182=Vandal Shield OA1208=TufGuard Vandal Shield
VS/NK=Vandal Shield (For Wattages Below 1000W) VS/NK/1000=Vandal Shield (For 1000W Units)
Ballast components are hard mounted to fixture housing for maximum heat dissipation and extended component and lamp life. Plastic terminal block. Prewired with 3' 14/3 STWA cord.
O P T I O N A L C O L O R S [ S t a n d a r d c o l o r i s b r o n z e , o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]
BKAP
BlackGrey
M O U N T I N G
E PA :
Effective Projective Area: 2.7
S H I P P I N G D ATA
Approximate Net Weight:
59 lbs. (27 kgs.)
NOTE: 1 Refer to technical section for lamp/ballast/voltage compatibility. 2 250/400W, 400/250W MH, HPS, and 400W MH only. 3 1000W only. 4 Available in MH only. 1000W requires reduced envelope lamp. 5 Available in HPS only. 6 Not available in 1000W. 7 MOV option is not available for any system requiring a three position terminal block
142 S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s | C o o p e r L i g h t i n g |
