FAIL-SAFE®

D E S C R I P T I O N















































The Fail-Safe Harmony VR Linear Series provides exceptional aesthetics with



Catalog #









Type



















remarkable strength. A wide variety of lamp options and connection



















configurations offer unmatched versatility for a wide range of applications.



Project













Die-Cast end caps, heavy extruded aluminum body provides strength and

















rigidity for complex environments while an extruded prismatic polycarbonate



















Comments













lens obscures the lamp image and spreads light evenly.



























































A P P L I C AT I O N









Prepared by









Date



The Harmony VR Linear Series is ideal for areas where the need for aesthetics

































and protection from vandalism are critical. Perfect for schools, hospitals,

















corridors, dormitories, public restrooms, common areas, and transit stations.

















S P E C I F I C AT I O N F E AT U R E S





















A ...H o u s i n g



C ...Fastners





G ...Socket













Heavy duty extruded aluminum

Stainless steel TORX“ with center



Pressure lock lampholders.













rails and die-cast end caps provide

reject pin and allen head set screws



Listings













rigid construction. Smooth end

provided. Screw heads are side

















UL Listed and CSA Certified Wet













caps provided with internal 7/8"

mounted and concealed under lens.

















Location for covered ceiling surface









knockouts. Finished in white





















mount. Damp location standard for









standard. Optional architectural

D ...Reflector

















all other mountings.













colors available.



20 ga. CRS with white high













HVL

















B ...Lens





reflectance polyester powder coat

















finish. Reflector serves as ballast











CONTINUOUS

One piece extruded UV stabilized

and wireway cover.













polycarbonate. Unique prismatic

E ...Lamps















8” LINEAR

design provides even light

(By others)



















distribution while obscuring lamp





















image and direct glare. Internal

F ...Ballast













HARMONY VR

prisms reduce dirt build-up and

Ballasts are CBM/ETL Class "P" and



























make cleaning easier.



positively secured to housing.













1 4 W – 1 0 8 W





















A

B

C

D

E



F

G





Fluorescent































POLYCARBONATE





















LINEAR FLUORESCENT























LUMINAIRE





















Clear Prismatic or Opal





















Architectural Vandal





















Resistant Luminaire

E N D D I M E N S I O N S



8.0”









[203.2mm]

































3.8”









[96.52mm]

E N E R G Y D ATA

















For Energy Management related









technical data to support the









performance of this fixture series,



9.0”











refer to the ordering information for



[228.6mm]











input wattage.



TORX® is a registered trademark

COOPER LIGHTING

of Camcar Division of Textron Inc.

ADC050453

Page 1
Image 1

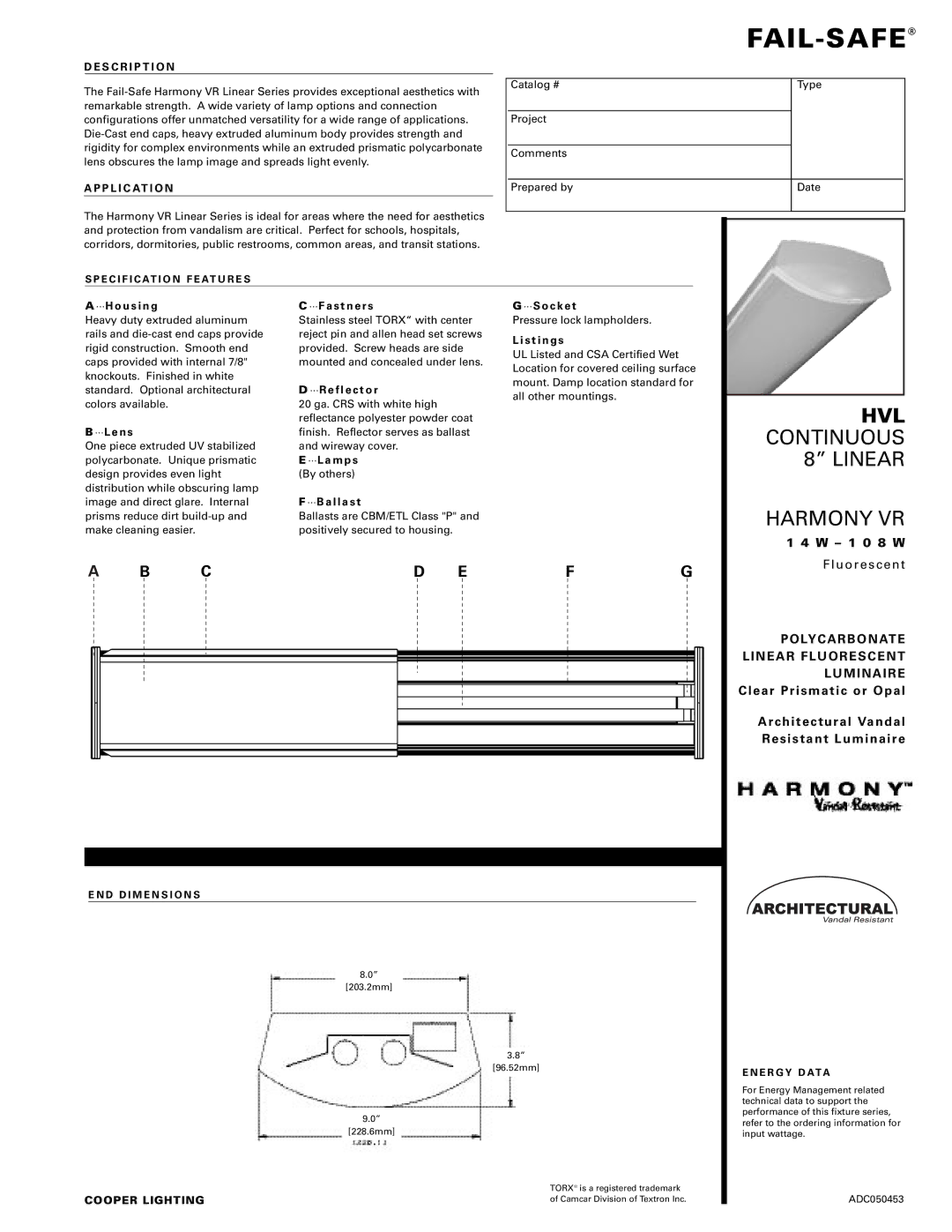

Cooper Lighting HVL dimensions S C R I P T I O N, P L I C At I O N, E C I F I C At I O N F E At U R E S, E R G Y D Ata
