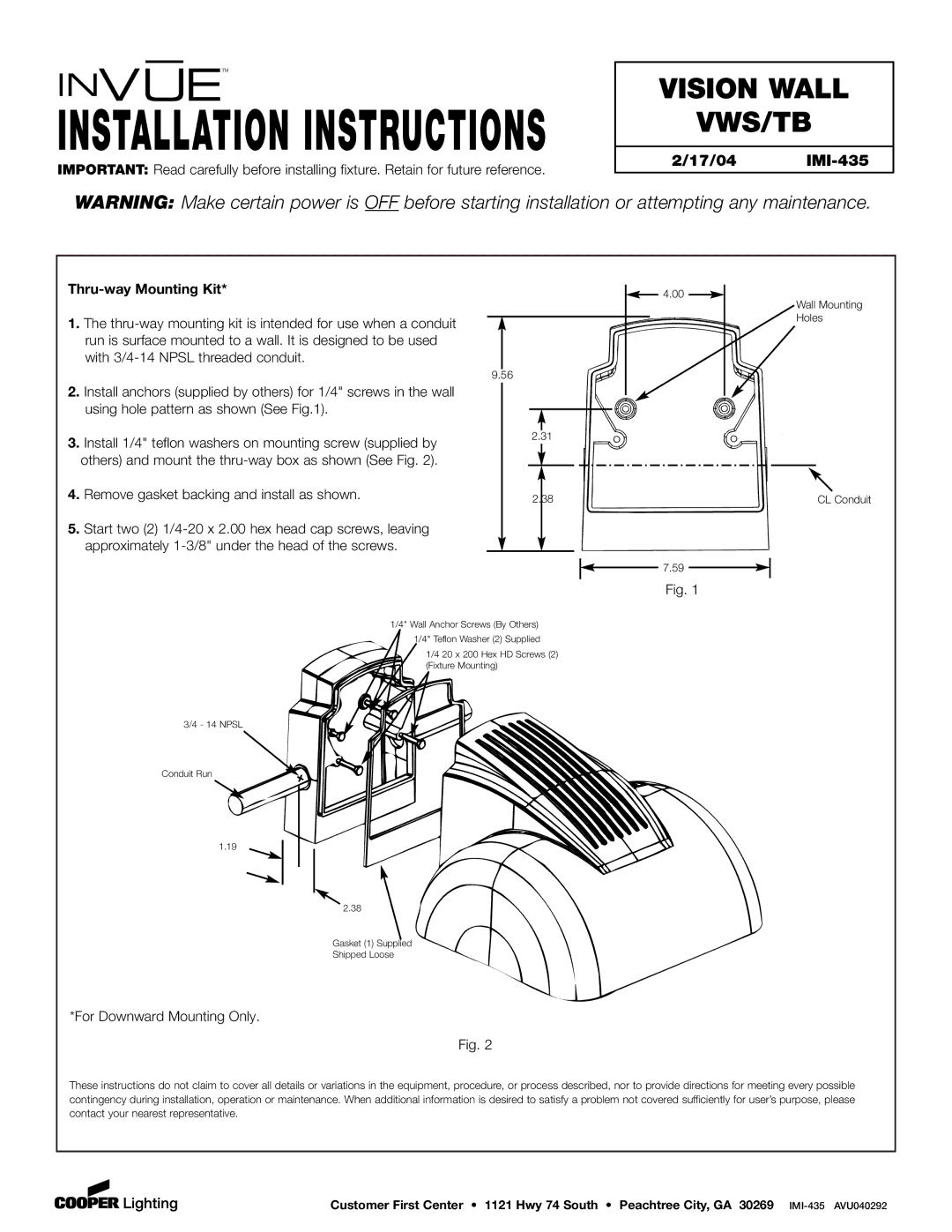

TM

INSTALLATION INSTRUCTIONS

IMPORTANT: Read carefully before installing fixture. Retain for future reference.

VISION WALL

VWS/TB

2/17/04 IMI-435

WARNING: Make certain power is OFF before starting installation or attempting any maintenance.

Thru-way Mounting Kit*







































4.00





1.

The thru-way mounting kit is intended for use when a conduit































































run is surface mounted to a wall. It is designed to be used

































with 3/4-14 NPSL threaded conduit.



































9.56



























2.

Install anchors (supplied by others) for 1/4" screws in the wall































































using hole pattern as shown (See Fig.1).





























































































































3.

Install 1/4" teflon washers on mounting screw (supplied by



2.31

















































4.

others) and mount the thru-way box as shown (See Fig. 2).































Remove gasket backing and install as shown.























2.38



















5.Start two (2) 1/4-20 x 2.00 hex head cap screws, leaving approximately 1-3/8" under the head of the screws.

7.59

Wall Mounting Holes

CL Conduit

Fig. 1

1/4" Wall Anchor Screws (By Others)

1/4" Teflon Washer (2) Supplied

1/4 20 x 200 Hex HD Screws (2)

(Fixture Mounting)

3/4 - 14 NPSL

Conduit Run

1.19

2.38

Gasket (1) Supplied

Shipped Loose

*For Downward Mounting Only.

Fig. 2

These instructions do not claim to cover all details or variations in the equipment, procedure, or process described, nor to provide directions for meeting every possible contingency during installation, operation or maintenance. When additional information is desired to satisfy a problem not covered sufficiently for user’s purpose, please contact your nearest representative.

Customer First Center • 1121 Hwy 74 South • Peachtree City, GA 30269 IMI-435 AVU040292

Page 1
