R O A D W AY





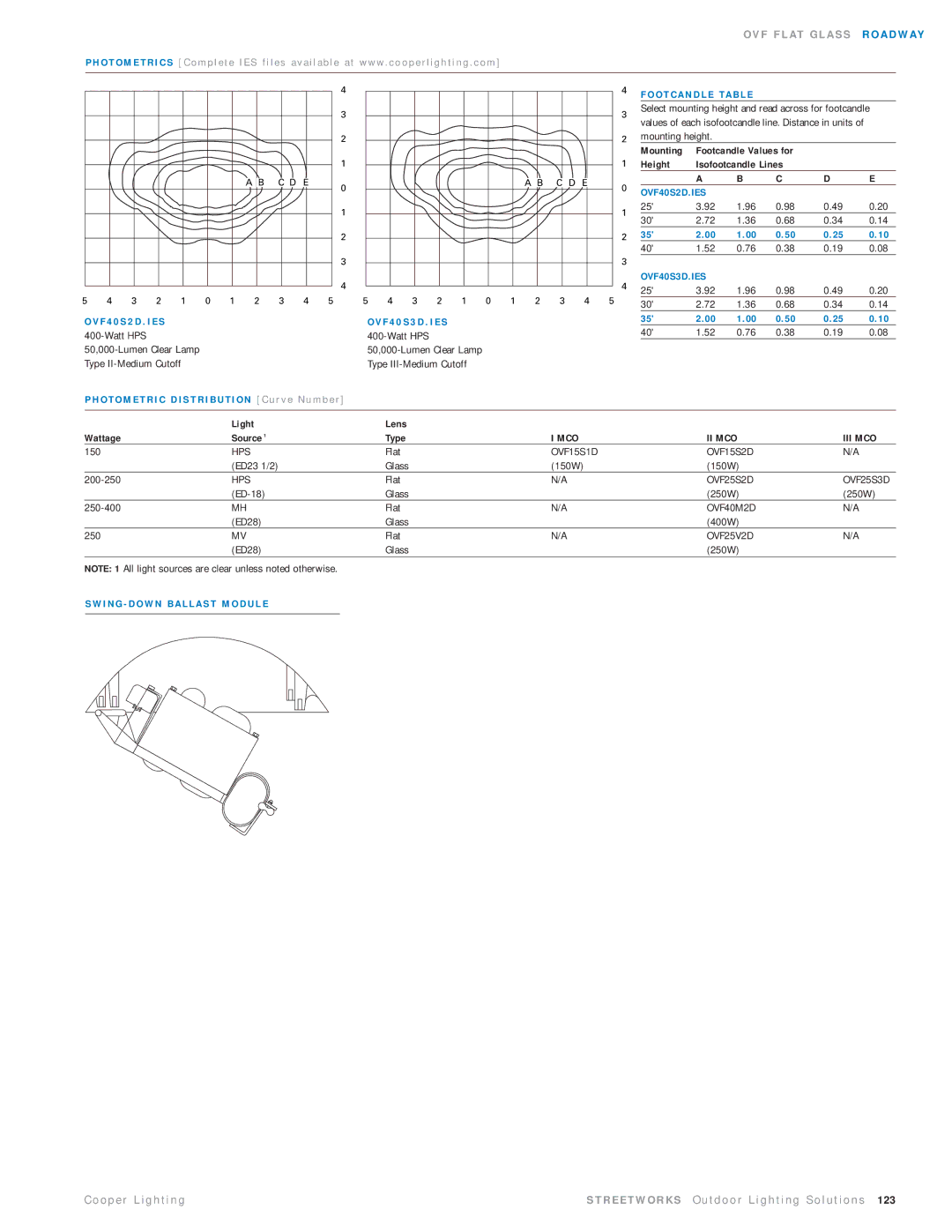

OVF FLAT GLASS



150-400W



MH/HPS/MERCURY

R O A D WAY L U M I N A I R E











30" [762mm]

7"

[178mm]

16 15/16" [430mm]

STREETWORKS

H O U S I N G

Die-cast aluminum housing with stainless steel bail latch. Standard grey polyester powder coat finish.

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : O V F 1 5 S W W 2 D 4

Other finish colors available. Consult your Streetworks Representative. Optional NEMA twistlock photocontrol receptacle also available.

S O C K E T

Adjustable mogul-base porcelain socket.

D O O R

Die-cast aluminum door frame with integral hinges for hands free

PRODUCT

LAMP WATTAGE

LAMP TYPE 3

BALLAST TYPE 3

VOLTAGE 3

DISTRIBUTION 5

FAMILY

15=150W 1

S=High Pressure

C=CWI

2=120V

1=Type I

OVF

20=200W

Sodium

M=Mag. Reg.

0=208V

2=Type II



25=250W

V=Mercury 4

W=CWA

4=240V

3=Type III



31=310W

M=Metal Halide

R=Reac./NPF

7=277V





40=400W 2



P=Hi. Reac./HPF

8=480V





24=250/400W



H=Reac./HPF

9=347V





wired 250W 2



N=Hi. Reac./NPF

F=120/240 wired 120V





42=400/250W



K=10KV CWA

P=240 w/PCR wired 120V





wired 400W 2





W=Multi-Tap wired 120V











N=Multi-Tap wired 277V











V=Multi-Tap wired 240V



CUTOFF

OPTIONS +

D=MCO

ACCESSORIES



(See Below)

installation, relamping and maintenance. ANSI wattage/source label.

L E N S

Removable tempered flat glass lens.

R E F L E C T O R

The optical system is a hydroformed anodized aluminum reflector with a Dacron polyester filter.

B A L L A S T A S S E M B LY

Hard mounted ballast with encapsulated starter for protection from environmental abuse. Standard two position tunnel type compression terminal block. Optional swing-down ballast bridge also available (Not available for 3G applications).

M O U N T I N G

Two-bolt/one bracket slipfitter with cast-in pipe stop and leveling steps. Fixed-in-place birdguard seals around 1 1/4" or 2" mounting arms. (Birdguard not needed for 2" arm.)

E PA :

Effective Projective Area: .51

S H I P P I N G D ATA

Approximate Net Weight:

30 lbs. (18 kgs.)

O P T I O N S + A C C E S S O R I E S [ M u s t b e l i s t e d i n t h e o r d e r s h o w n a n d s e p a r a t e d b y a d a s h ]

OPTIONS (add as suffix)

ACCESSORIES (order separately)

1=Single Fuse, Internally Mounted (120, 277V)

OA/RA1013=Photocontrol Shorting Cap

2=Double Fuse, Internally Mounted (208, 240 & 480V)

OA/RA1014=120V Photocontrol

4=Photocontrol Receptacle

OA/RA1016=105V-285V Photocontrol

WH=White

OA/RA1027=480V Photocontrol

BK=Black

OA1028=Field Installed PCR Kit

BZ=Bronze

OA1214=TufGuard Vandal Shield

E=150W/100V/HPS Ballast



H=Plug-in Starter Receptacle



K=Level Indicator



L=Lamp



M=MOV Lightning Surge Protector 5



T=Swing-down Ballast Bridge



U=UL/CSA Listed



O P T I O N A L C O L O R S [ S t a n d a r d c o l o r i s g r e y, o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]

WH

BK

BZ

White

Black

Bronze

NOTE: 1 150W units are for S55 lamp. 2 Metal Halide requires ED28 lamp. 3 Refer to technical section for lamp/ballast/voltage compatibility. 4 Not available in 400W. 5 MOV option is not available for any system requiring a three position terminal block (Example—240V with PCR wired120V). In order for MOV option to function center terminal of three position terminal block must be connected to “Earth” ground.

122 S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s

C o o p e r L i g h t i n g

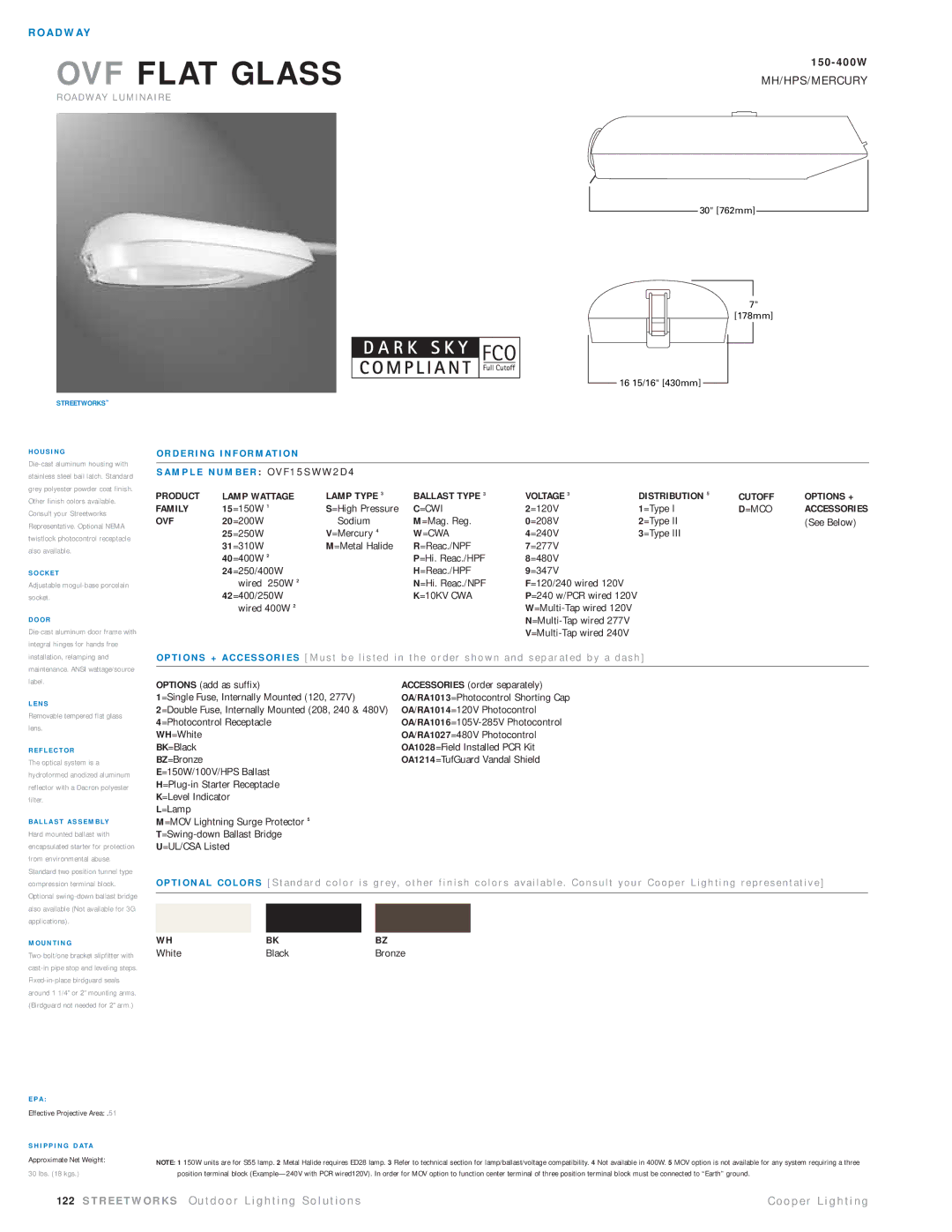

Page 1
