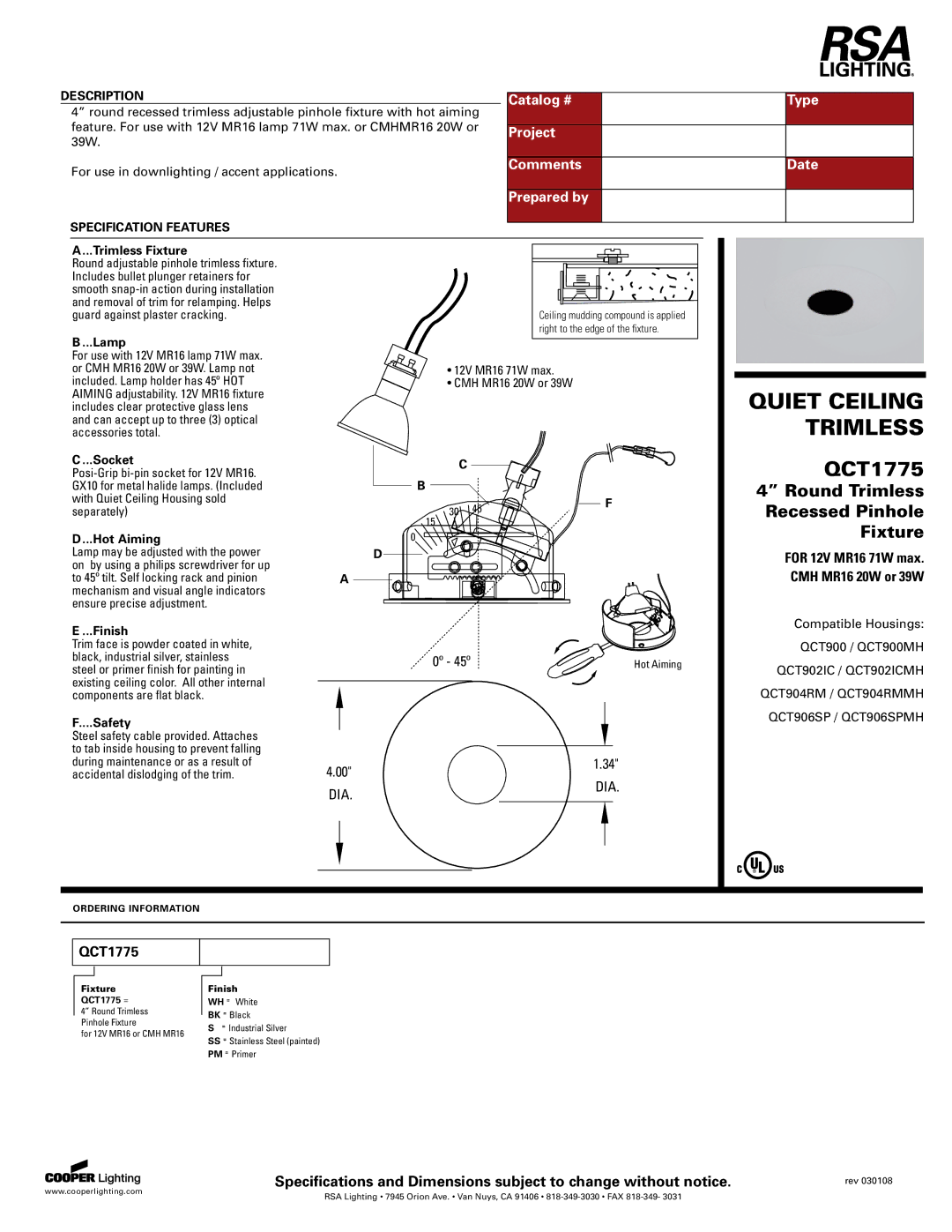

DESCRIPTION |
| Catalog # | Type |
4” round recessed trimless adjustable pinhole fixture with hot aiming |
|
| |
feature. For use with 12V MR16 lamp 71W max. or CMHMR16 20W or | Project |
| |
39W. |
|
| |
|
|
| |
For use in downlighting / accent applications. |
| Comments | Date |
|
|
| |
|
| Prepared by |
|
SPECIFICATION FEATURES |
|
|
|
A....Trimless Fixture |
|
|
|
Round adjustable pinhole trimless fixture. |
|
|
|
Includes bullet plunger retainers for |
|
|
|
smooth |
|
|
|
and removal of trim for relamping. Helps |
|
|
|
guard against plaster cracking. |
| Ceiling mudding compound is applied |
|
B....Lamp |
| right to the edge of the fixture. |
|
|
|
| |
For use with 12V MR16 lamp 71W max. |
|
|
|
or CMH MR16 20W or 39W. Lamp not | • 12V MR16 71W max. |
| |
included. Lamp holder has 45º HOT | • CMH MR16 20W or 39W |
| |
AIMING adjustability. 12V MR16 fixture |
|
| QUIET CEILING |
includes clear protective glass lens |
|
| |
and can accept up to three (3) optical |
|
| TRIMLESS |
accessories total. |
|
| |
C....Socket | C |
|
|
| QCT1775 |
|
|
| |||
|
|
|
| ||
GX10 for metal halide lamps. (Included | B |
|
|
| 4” Round Trimless |
with Quiet Ceiling Housing sold |
|
| F |
| |
| 45 |
| Recessed Pinhole | ||
separately) | 30 |
| |||
|
| ||||
| 15 |
|
|
| Fixture |
D....Hot Aiming | 0 |
|
|
| |
Lamp may be adjusted with the power | D |
|
|
| FOR 12V MR16 71W max. |
on by using a philips screwdriver for up |
|
|
|
| |
|
|
|
| CMH MR16 20W or 39W | |
to 45º tilt. Self locking rack and pinion | A |
|
|
| |
mechanism and visual angle indicators |
|
|
|
|
|
ensure precise adjustment. |
|
|
|
|
|
E....Finish |
|
|
|
| Compatible Housings: |
|
|
|
|
| |
Trim face is powder coated in white, |
|
|
|
| QCT900 / QCT900MH |
black, industrial silver, stainless | 0º - 45º |
|
| Hot Aiming | QCT902IC / QCT902ICMH |
steel or primer finish for painting in |
|
|
|
| |
existing ceiling color. All other internal |
|
|
|
| QCT904RM / QCT904RMMH |
components are flat black. |
|
|
|
| |
F....Safety |
|
|
|
| QCT906SP / QCT906SPMH |
|
|
|
|
| |
Steel safety cable provided. Attaches |
|
|
|
|
|
to tab inside housing to prevent falling |
|
| 1.34" |
|
|
during maintenance or as a result of | 4.00" |
|
|
| |
accidental dislodging of the trim. |
| DIA. |
|
| |
| DIA. |
|
|
| |
|
|
|
|
|
ORDERING INFORMATION
QCT1775
Fixture
QCT1775 =
4” Round Trimless Pinhole Fixture
for 12V MR16 or CMH MR16
Finish
WH = White
BK = Black
S= Industrial Silver
SS= Stainless Steel (painted) PM = Primer
Specifications and Dimensions subject to change without notice.
rev 030108
www.cooperlighting.com | RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • |
|
