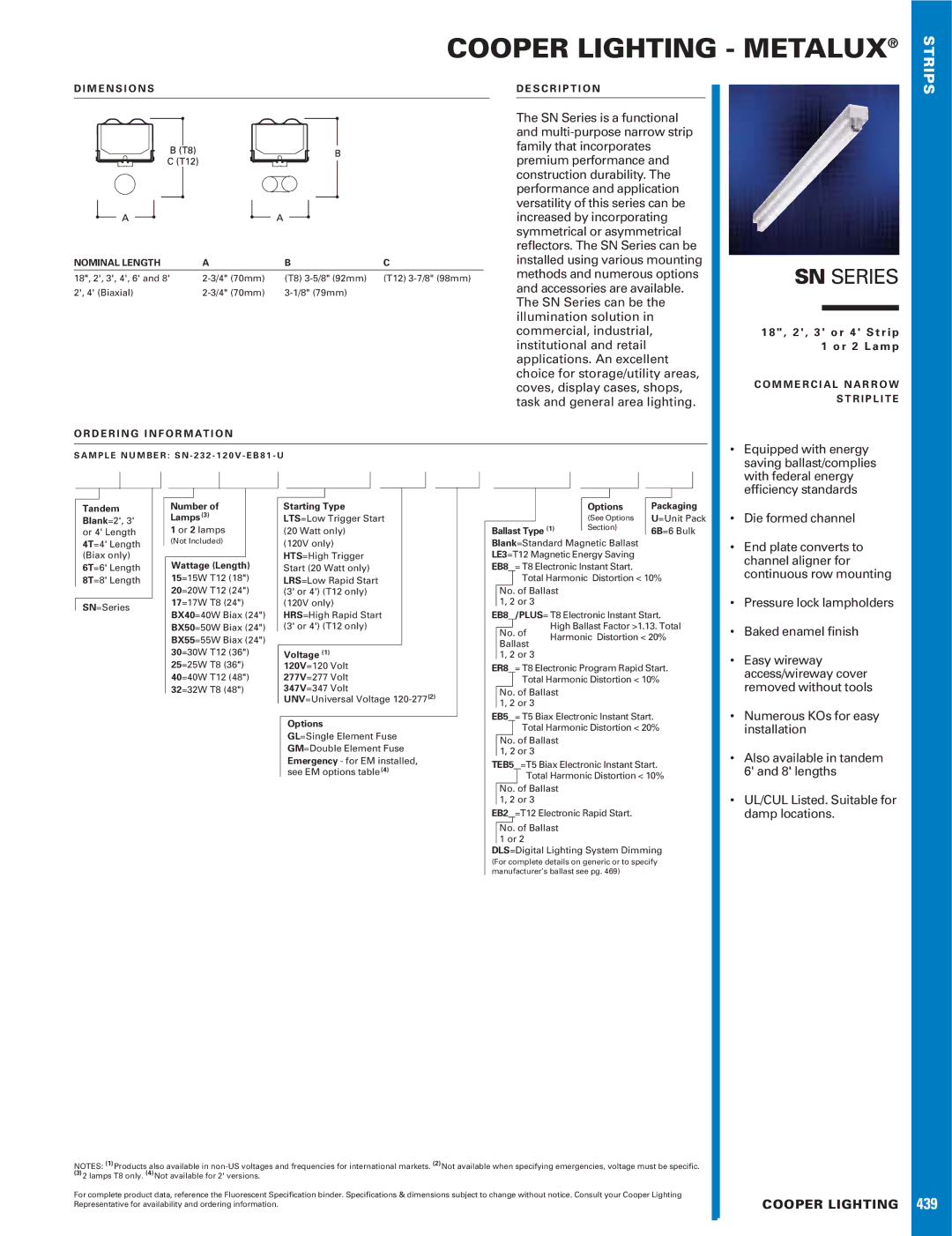

COOPER LIGHTING - METALUX®

STRIPS

D I M E N S I O N S

NOMINAL LENGTH

A

B

C

18", 2', 3', 4', 6' and 8'

2-3/4" (70mm)

(T8) 3-5/8" (92mm)

(T12) 3-7/8" (98mm)

2', 4' (Biaxial)

2-3/4" (70mm)

3-1/8" (79mm)



O R D E R I N G I N F O R M AT I O N

D E S C R I P T I O N

The SN Series is a functional and multi-purpose narrow strip family that incorporates premium performance and construction durability. The performance and application versatility of this series can be increased by incorporating symmetrical or asymmetrical reflectors. The SN Series can be installed using various mounting methods and numerous options and accessories are available. The SN Series can be the illumination solution in commercial, industrial, institutional and retail applications. An excellent choice for storage/utility areas, coves, display cases, shops, task and general area lighting.

SN SERIES

1 8 " , 2 ' , 3 ' o r 4 ' S t r i p 1 o r 2 L a m p

C O M M E R C I A L N A R R O W S T R I P L I T E

S A M P L E N U M B E R : S N - 2 3 2 - 1 2 0 V - E B 8 1 - U

• Equipped with energy

saving ballast/complies

with federal energy

efficiency standards

Tandem

Blank=2', 3' or 4' Length 4T=4' Length (Biax only) 6T=6' Length 8T=8' Length

SN=Series

Number of

Lamps (3)

1 or 2 lamps

(Not Included)

Wattage (Length)

15=15W T12 (18")

20=20W T12 (24")

17=17W T8 (24") BX40=40W Biax (24") BX50=50W Biax (24") BX55=55W Biax (24") 30=30W T12 (36")

25=25W T8 (36")

40=40W T12 (48")

32=32W T8 (48")

Starting Type

LTS=Low Trigger Start (20 Watt only)

(120V only)

HTS=High Trigger Start (20 Watt only) LRS=Low Rapid Start (3' or 4') (T12 only) (120V only) HRS=High Rapid Start (3' or 4') (T12 only)

Voltage (1)

120V=120 Volt

277V=277 Volt

347V=347 Volt

UNV=Universal Voltage 120-277(2)

Options

GL=Single Element Fuse GM=Double Element Fuse Emergency - for EM installed, see EM options table (4)

















































Options



Packaging









(See Options



U=Unit Pack

Ballast Type (1)



Section)



6B=6 Bulk



Blank=Standard Magnetic Ballast

LE3=T12 Magnetic Energy Saving

EB8 = T8 Electronic Instant Start.

Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB8 /PLUS= T8 Electronic Instant Start.







High Ballast Factor >1.13. Total

No. of

Harmonic Distortion < 20%

Ballast



1, 2 or 3



ER8 = T8 Electronic Program Rapid Start. Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB5 = T5 Biax Electronic Instant Start. Total Harmonic Distortion < 20%

No. of Ballast 1, 2 or 3

TEB5 =T5 Biax Electronic Instant Start. Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB2 =T12 Electronic Rapid Start.

No. of Ballast 1 or 2

DLS=Digital Lighting System Dimming

(For complete details on generic or to specify manufacturer’s ballast see pg. 469)

Die formed channel

• End plate converts to



channel aligner for



continuous row mounting

Pressure lock lampholders

Baked enamel finish

Easy wireway



access/wireway cover



removed without tools

• Numerous KOs for easy



installation

• Also available in tandem



6' and 8' lengths

• UL/CUL Listed. Suitable for



damp locations.

NOTES: (1)Products also available in non-US voltages and frequencies for international markets. (2)Not available when specifying emergencies, voltage must be specific.



(3)2 lamps T8 only. (4)Not available for 2' versions.



For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting

COOPER LIGHTING

Representative for availability and ordering information.

439
