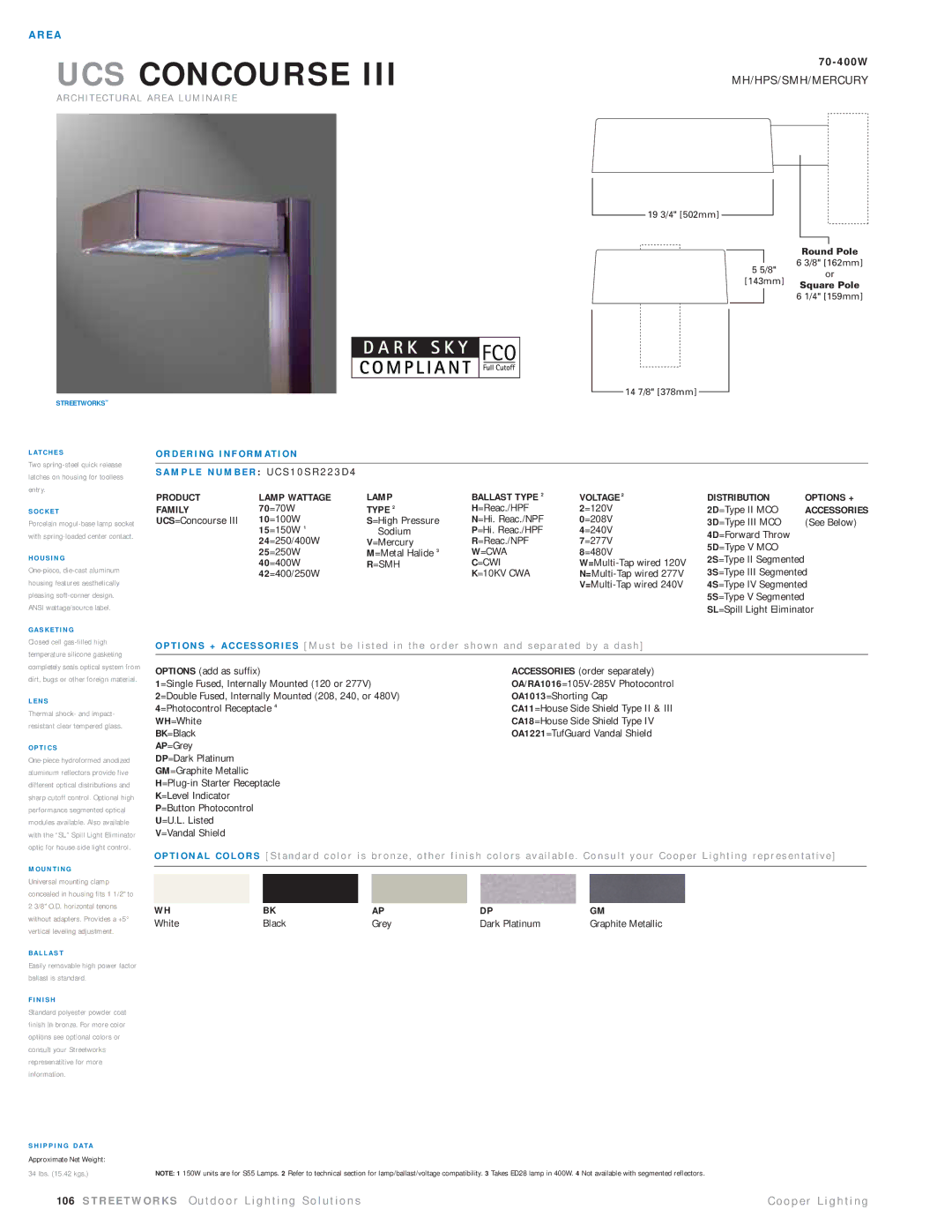

Cooper Lighting UCS10SR223D4 manual Ucs Concourse, A R E A, 70-400W, Mh/Hps/Smh/Mercury

A R E A
UCS CONCOURSE III	70-400W
	MH/HPS/SMH/MERCURY
A R C H I T E C T U R A L A R E A L U M I N A I R E

19 3/4" [502mm]

	Round Pole
	6 3/8" [162mm]
5 5/8"
	or
[143mm]
	Square Pole
	6 1/4" [159mm]

14 7/8" [378mm]

STREETWORKS™

L AT C H E S

Two spring-steel quick release latches on housing for toolless entry.

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : U C S 1 0 S R 2 2 3 D 4

S O C K E T

Porcelain mogul-base lamp socket with spring-loaded center contact.

H O U S I N G

One-piece, die-cast aluminum housing features aesthetically pleasing soft-corner design.

ANSI wattage/source label.

PRODUCT	LAMP WATTAGE	LAMP	BALLAST TYPE 2	VOLTAGE 2
FAMILY	70=70W	TYPE 2	H=Reac./HPF	2=120V
UCS=Concourse III	10=100W	S=High Pressure	N=Hi. Reac./NPF	0=208V
	15=150W 1	Sodium	P=Hi. Reac./HPF	4=240V
	24=250/400W	V=Mercury	R=Reac./NPF	7=277V
	25=250W	M=Metal Halide 3	W=CWA	8=480V
	40=400W	R=SMH	C=CWI	W=Multi-Tap wired 120V
	42=400/250W		K=10KV CWA	N=Multi-Tap wired 277V

V=Multi-Tap wired 240V

DISTRIBUTION	OPTIONS +
2D=Type II MCO	ACCESSORIES
3D=Type III MCO	(See Below)
4D=Forward Throw
5D=Type V MCO
2S=Type II Segmented

3S=Type III Segmented

4S=Type IV Segmented

5S=Type V Segmented

SL=Spill Light Eliminator

G A S K E T I N G

Closed cell gas-filled high temperature silicone gasketing completely seals optical system from dirt, bugs or other foreign material.

L E N S

Thermal shock- and impact- resistant clear tempered glass.

O P T I C S

One-piece hydroformed anodized aluminum reflectors provide five different optical distributions and sharp cutoff control. Optional high performance segmented optical modules available. Also available with the “SL” Spill Light Eliminator optic for house side light control.

M O U N T I N G

Universal mounting clamp concealed in housing fits 1 1/2" to 2 3/8" O.D. horizontal tenons without adapters. Provides a +5° vertical leveling adjustment.

B A L L A S T

Easily removable high power factor ballast is standard.

F I N I S H

Standard polyester powder coat finish in bronze. For more color options see optional colors or consult your Streetworks represenatitive for more information.

S H I P P I N G D ATA

Approximate Net Weight:

34 lbs. (15.42 kgs.)

O P T I O N S + A C C E S S O R I E S [ M u s t b e l i s t e d i n t h e o r d e r s h o w n a n d s e p a r a t e d b y a d a s h ]

OPTIONS (add as suffix)	ACCESSORIES (order separately)
1=Single Fused, Internally Mounted (120 or 277V)	OA/RA1016=105V-285V Photocontrol
2=Double Fused, Internally Mounted (208, 240, or 480V)	OA1013=Shorting Cap
4=Photocontrol Receptacle 4	CA11=House Side Shield Type II & III
WH=White	CA18=House Side Shield Type IV
BK=Black	OA1221=TufGuard Vandal Shield
AP=Grey
DP=Dark Platinum
GM=Graphite Metallic
H=Plug-in Starter Receptacle
K=Level Indicator
P=Button Photocontrol
U=U.L. Listed
V=Vandal Shield

O P T I O N A L C O L O R S [ S t a n d a r d c o l o r i s b r o n z e , o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]

WH	BK	AP	DP	GM
White	Black	Grey	Dark Platinum	Graphite Metallic

NOTE: 1 150W units are for S55 Lamps. 2 Refer to technical section for lamp/ballast/voltage compatibility. 3 Takes ED28 lamp in 400W. 4 Not available with segmented reflectors.

106 S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s C o o p e r L i g h t i n g
