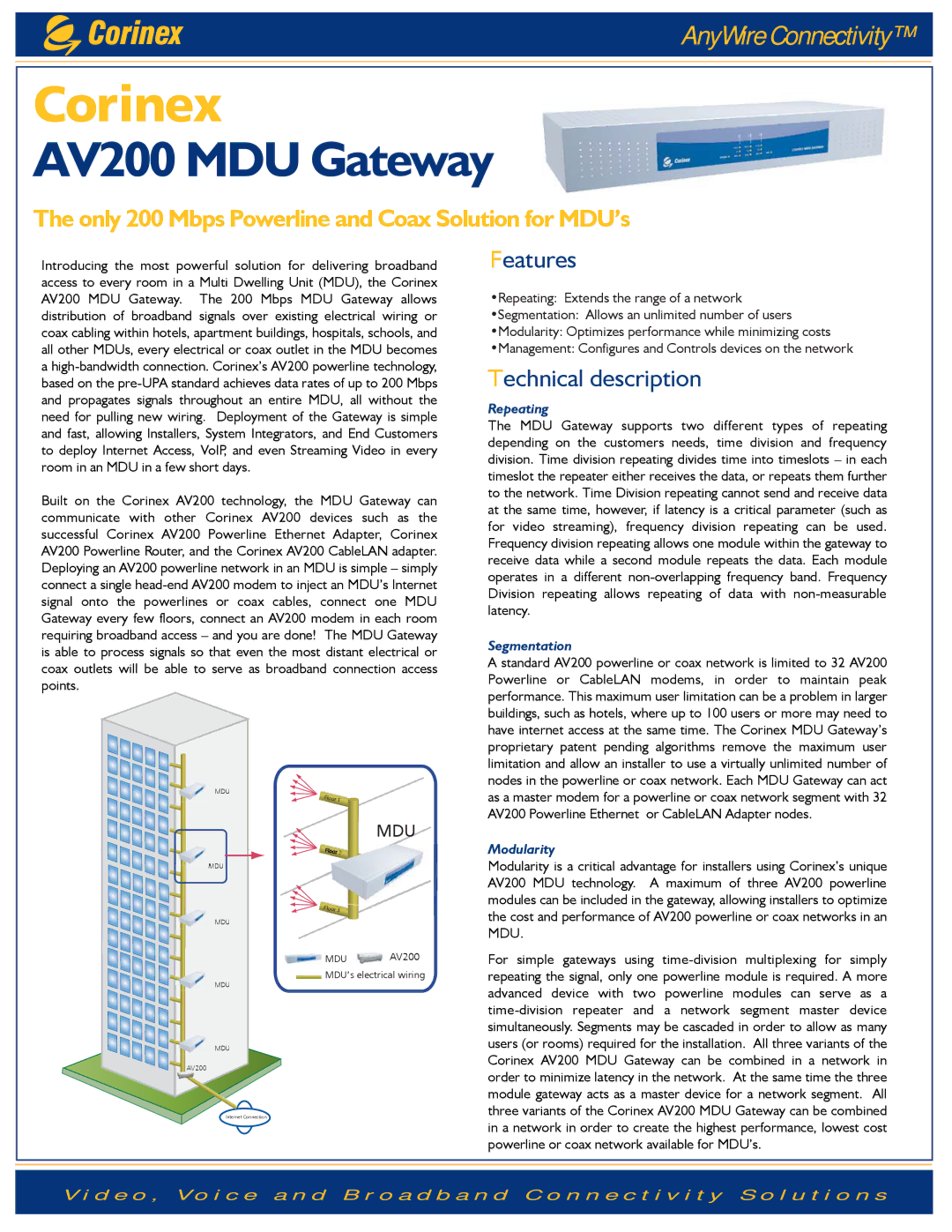

AnyWire Connectivity™
Management
The Corinex AV200 MDU Gateway and all other AV200 powerline or CableLAN products from Corinex can be easily configured using the Corinex AV200 Network Management software using SNMP. From monitoring and configuration to remotely accessing and controlling devices, Corinex’s powerful GUI based management software gives network managers control of the network from any web enabled PC.

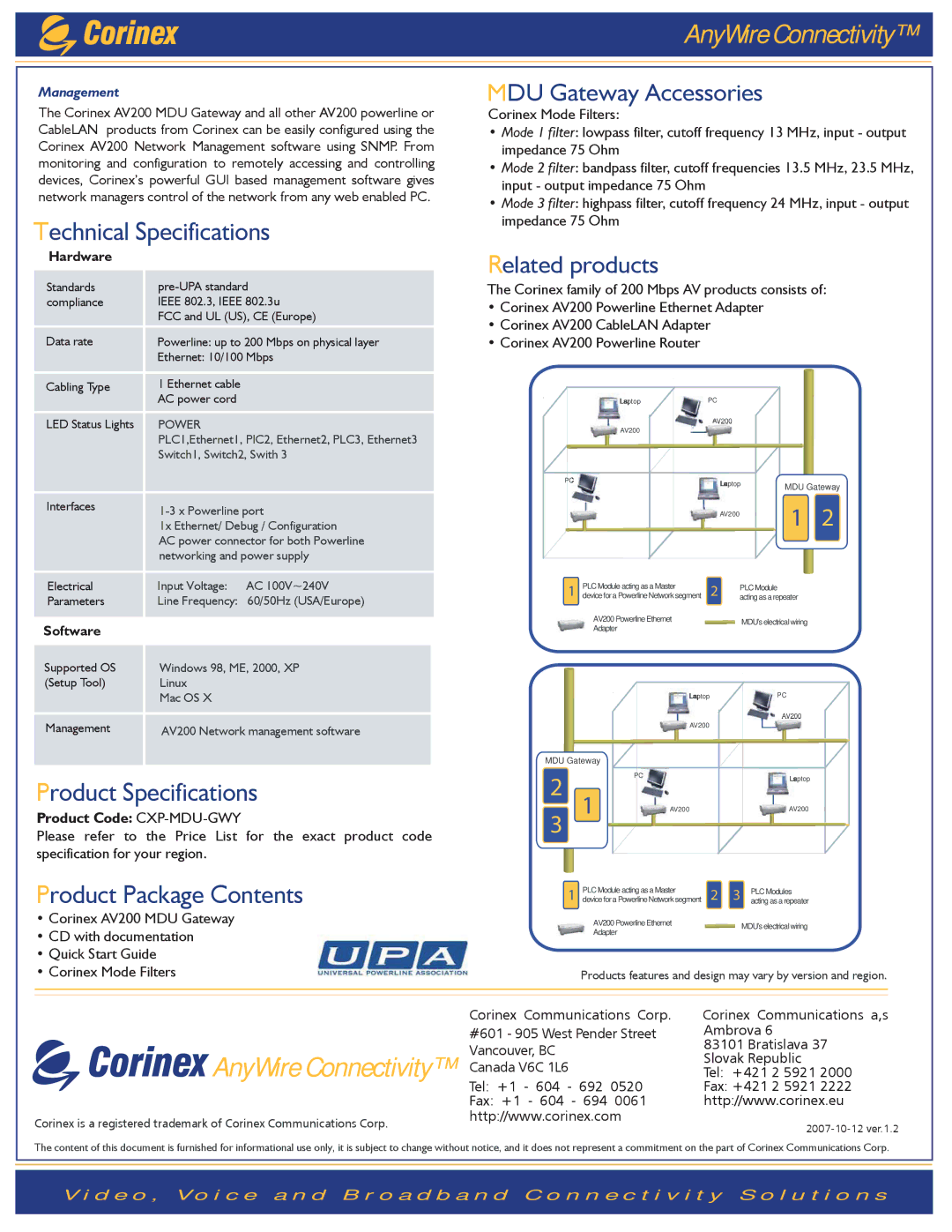

Technical Specifications
Hardware
Standards | ||
compliance | IEEE 802.3, IEEE 802.3u | |
| FCC and UL (US), CE (Europe) | |
Data rate | Powerline: up to 200 Mbps on physical layer | |
| Ethernet: 10/100 Mbps | |
Cabling Type | 1 Ethernet cable |
|
| AC power cord |
|
LED Status Lights | POWER |
|
| PLC1,Ethernet1, PlC2, Ethernet2, PLC3, Ethernet3 | |
| Switch1, Switch2, Swith 3 | |
Interfaces | ||
| ||
| 1x Ethernet/ Debug / Configuration | |
| AC power connector for both Powerline | |
| networking and power supply | |
Electrical | Input Voltage: | AC 100V~240V |
Parameters | Line Frequency: | 60/50Hz (USA/Europe) |
|
|
|
Software |
|
|
Supported OS | Windows 98, ME, 2000, XP | |
(Setup Tool) | Linux |
|
| Mac OS X |
|
Management | AV200 Network management software | |
Product Specifications
Product Code:
Please refer to the Price List for the exact product code specification for your region.
Product Package Contents
•Corinex AV200 MDU Gateway
•CD with documentation
•Quick Start Guide
•Corinex Mode Filters
MDU Gateway Accessories
Corinex Mode Filters:
•Mode 1 filter: lowpass filter, cutoff frequency 13 MHz, input - output impedance 75 Ohm
•Mode 2 filter: bandpass filter, cutoff frequencies 13.5 MHz, 23.5 MHz, input - output impedance 75 Ohm
•Mode 3 filter: highpass filter, cutoff frequency 24 MHz, input - output impedance 75 Ohm
Related products
The Corinex family of 200 Mbps AV products consists of:
•Corinex AV200 Powerline Ethernet Adapter
•Corinex AV200 CableLAN Adapter
•Corinex AV200 Powerline Router
|
| Laptop | PC |
|
|
| ||
|
|
|
|
| V200 |
|
| |
|
| AV200 |
|
|
|
| ||
PC |
|
|
|
|
| Laptop | MDU Gateway | |
|
|
|
|
|
| |||
|
|
|
|
|
| AV200 | 1 | 2 |
|
|
|
|
|
| |||
|
|
|
|
|
| |||
|
|
|
|
|
|
|
| |
1 | PLC Module acting as a Master | 2 | PLC Module |
| ||||
device for a Powerline Network segment | acting as a repeater |
| ||||||
| AV200 Powerline Ethernet |
|
| MDU’s electrical wiring |
| |||
| Adapter |
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| Laptop |
| PC |
| |
|
|
|
| AV200 |
| AV200 |
| |
|
|
|
|
|
| |||
|
|
|
|
|
|
| ||
MDU Gateway |
|
|
|
|
|
|
| |
2 |
| PC |
|
| Laptop |
| ||
|
|
|
|
|
|
| ||
1 |
|
|
|
|
|
|
| |
3 |
| AV200 |
|
| AV200 |
| ||
|
|
|
|
| ||||
|
|
|
|
|
|
|
| |
1 | PLC Module acting as a Master | 2 | 3 | PLC Modules |
| |||
device for a Powerline Network segment | acting as a repeater |
| ||||||
AV200 Powerline Ethernet | MDU’s electrical wiring | |
Adapter | ||
|
Products features and design may vary by version and region.
| Corinex Communications Corp. | Corinex Communications a,s | |
| #601 - 905 West Pender Street | Ambrova 6 | |
AnyWire Connectivity™ | Vancouver, BC | 83101 Bratislava 37 | |
Tel: +421 2 5921 2000 | |||
Canada V6C 1L6 | |||
|
| Slovak Republic | |
| Tel: +1 - 604 - 692 0520 | Fax: +421 2 5921 2222 | |
| Fax: +1 - 604 - 694 0061 | http://www.corinex.eu | |
Corinex is a registered trademark of Corinex Communications Corp. | http://www.corinex.com | ||
| |||
|
|
The content of this document is furnished for informational use only, it is subject to change without notice, and it does not represent a commitment on the part of Corinex Communications Corp.
