Dell E6320 - page 106

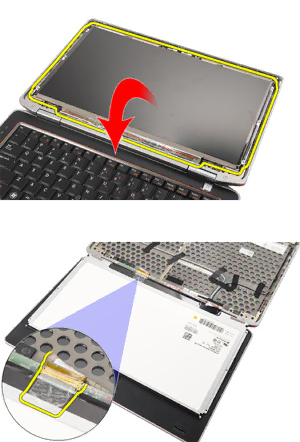

6. Disconnect the Low-Voltage Differential Signaling (LVDS) cable from the display

panel.

7. Remove the display panel from the display assembly.

106
