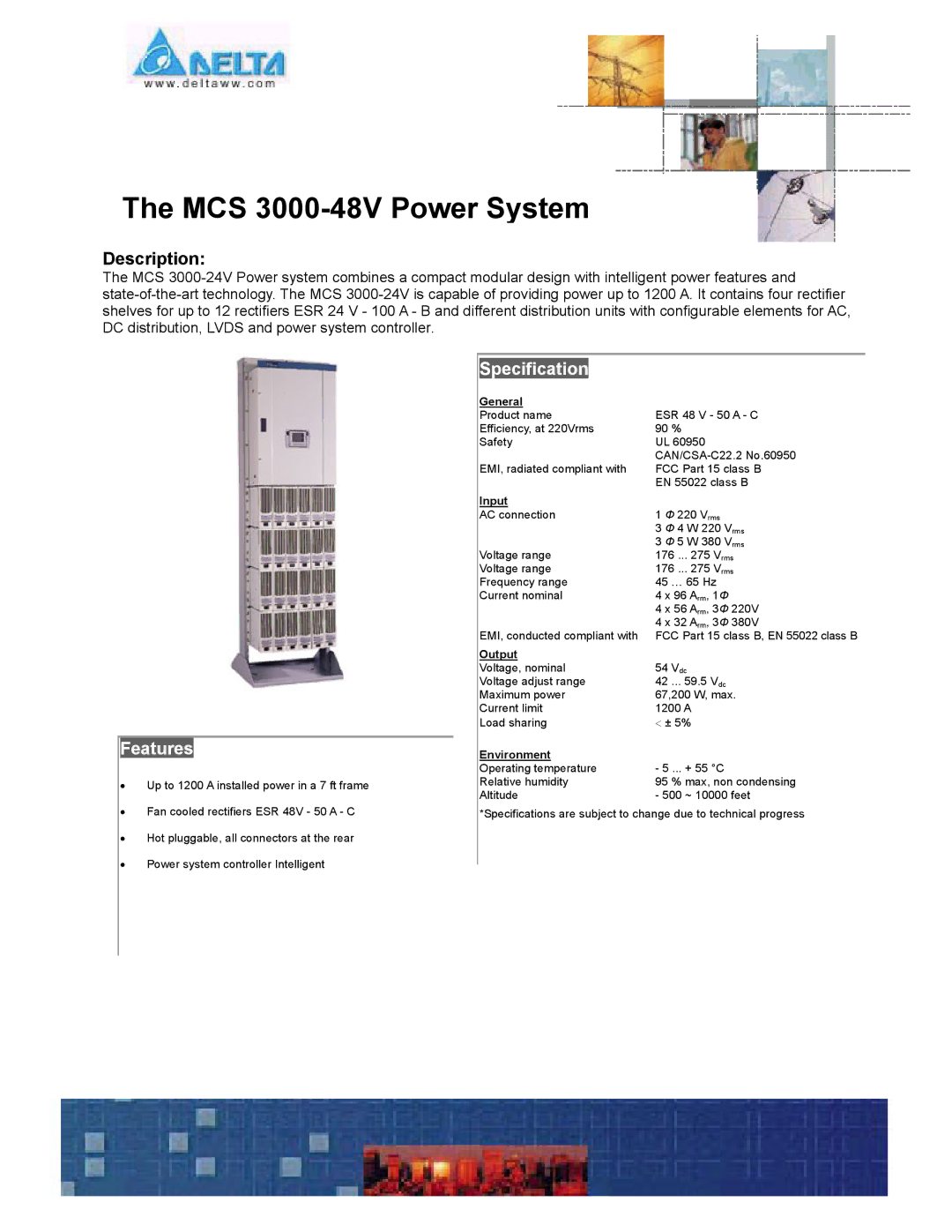

The MCS 3000-48V Power System

Description:

The MCS 3000-24V Power system combines a compact modular design with intelligent power features and state-of-the-art technology. The MCS 3000-24V is capable of providing power up to 1200 A. It contains four rectifier shelves for up to 12 rectifiers ESR 24 V - 100 A - B and different distribution units with configurable elements for AC, DC distribution, LVDS and power system controller.

Features

Up to 1200 A installed power in a 7 ft frame

Fan cooled rectifiers ESR 48V - 50 A - C

Hot pluggable, all connectors at the rear

Power system controller Intelligent

Specification

General



Product name

ESR 48 V - 50 A - C

Efficiency, at 220Vrms

90 %

Safety

UL 60950



CAN/CSA-C22.2 No.60950

EMI, radiated compliant with

FCC Part 15 class B



EN 55022 class B

Input



AC connection

1 Ф 220 Vrms



3 Ф 4 W 220 Vrms



3 Ф 5 W 380 Vrms

Voltage range

176 ... 275 Vrms

Voltage range

176 ... 275 Vrms

Frequency range

45 … 65 Hz

Current nominal

4 x 96 Arm, 1Ф



4 x 56 Arm, 3Ф 220V

EMI, conducted compliant with

4 x 32 Arm, 3Ф 380V

FCC Part 15 class B, EN 55022 class B

Output



Voltage, nominal

54 Vdc

Voltage adjust range

42 ... 59.5 Vdc

Maximum power

67,200 W, max.

Current limit

1200 A

Load sharing

< ± 5%

Environment



Operating temperature

- 5 ... + 55 °C

Relative humidity

95 % max, non condensing

Altitude

- 500 ~ 10000 feet

*Specifications are subject to change due to technical progress

Page 1
