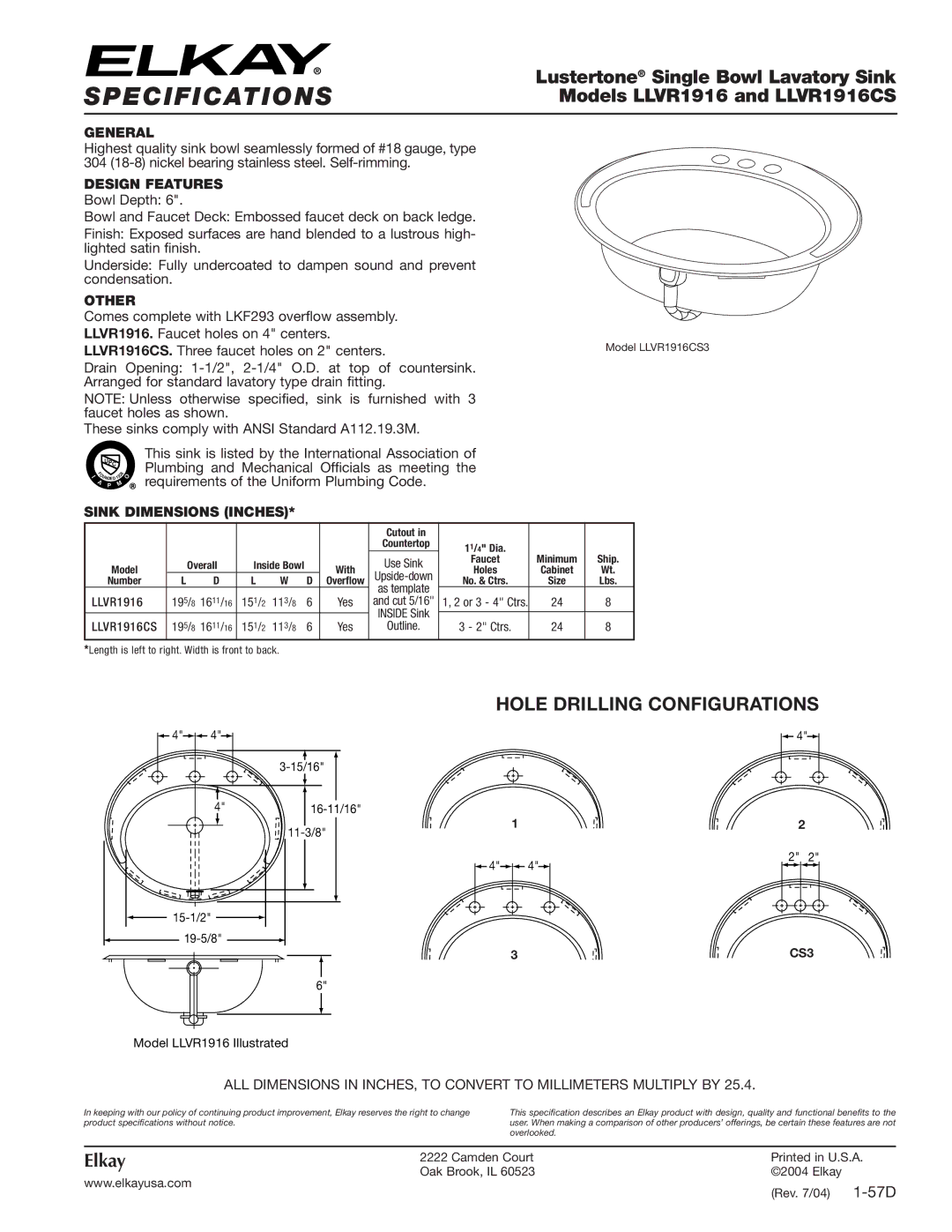

Lustertone® Single Bowl Lavatory Sink

SPECIFICATIONS

Models LLVR1916 and LLVR1916CS





GENERAL

Highest quality sink bowl seamlessly formed of #18 gauge, type 304 (18-8) nickel bearing stainless steel. Self-rimming.

DESIGN FEATURES

Bowl Depth: 6".

Bowl and Faucet Deck: Embossed faucet deck on back ledge.

Finish: Exposed surfaces are hand blended to a lustrous high- lighted satin finish.

Underside: Fully undercoated to dampen sound and prevent condensation.

OTHER

Comes complete with LKF293 overflow assembly. LLVR1916. Faucet holes on 4" centers. LLVR1916CS. Three faucet holes on 2" centers.

Drain Opening: 1-1/2", 2-1/4" O.D. at top of countersink. Arranged for standard lavatory type drain fitting.

NOTE: Unless otherwise specified, sink is furnished with 3 faucet holes as shown.

These sinks comply with ANSI Standard A112.19.3M.

Model LLVR1916CS3



UP





C



F



6

I O



92

UNDED1

A

P

M

O

This sink is listed by the International Association of Plumbing and Mechanical Officials as meeting the requirements of the Uniform Plumbing Code.

SINK DIMENSIONS (INCHES)*















Cutout in





















Countertop

11/4" Dia.







Overall

Inside Bowl





Use Sink

Faucet

Minimum

Ship.

Model



With

Holes

Cabinet

Wt.











Upside-down

Number

L

D

L

W

D

Overflow

No. & Ctrs.

Size

Lbs.

as template





















LLVR1916

195/8

1611/16

151/2

113/8

6

Yes

and cut 5/16"

1, 2 or 3 - 4" Ctrs.

24

8















INSIDE Sink



























LLVR1916CS

195/8

1611/16

151/2

113/8

6

Yes

Outline.

3 - 2" Ctrs.

24

8

*Length is left to right. Width is front to back.

4" 4"

3-15/16"

4"16-11/16" 11-3/8"

HOLE DRILLING CONFIGURATIONS

4"

1

2

15-1/2"

19-5/8"

4" 4"

2" 2"

6"

Model LLVR1916 Illustrated

3

CS3

ALL DIMENSIONS IN INCHES, TO CONVERT TO MILLIMETERS MULTIPLY BY 25.4.

In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice.

This specification describes an Elkay product with design, quality and functional benefits to the user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.

Elkay

2222 Camden Court

Printed in U.S.A.

www.elkayusa.com

Oak Brook, IL 60523

©2004 Elkay



(Rev. 7/04) 1-57D





Page 1
