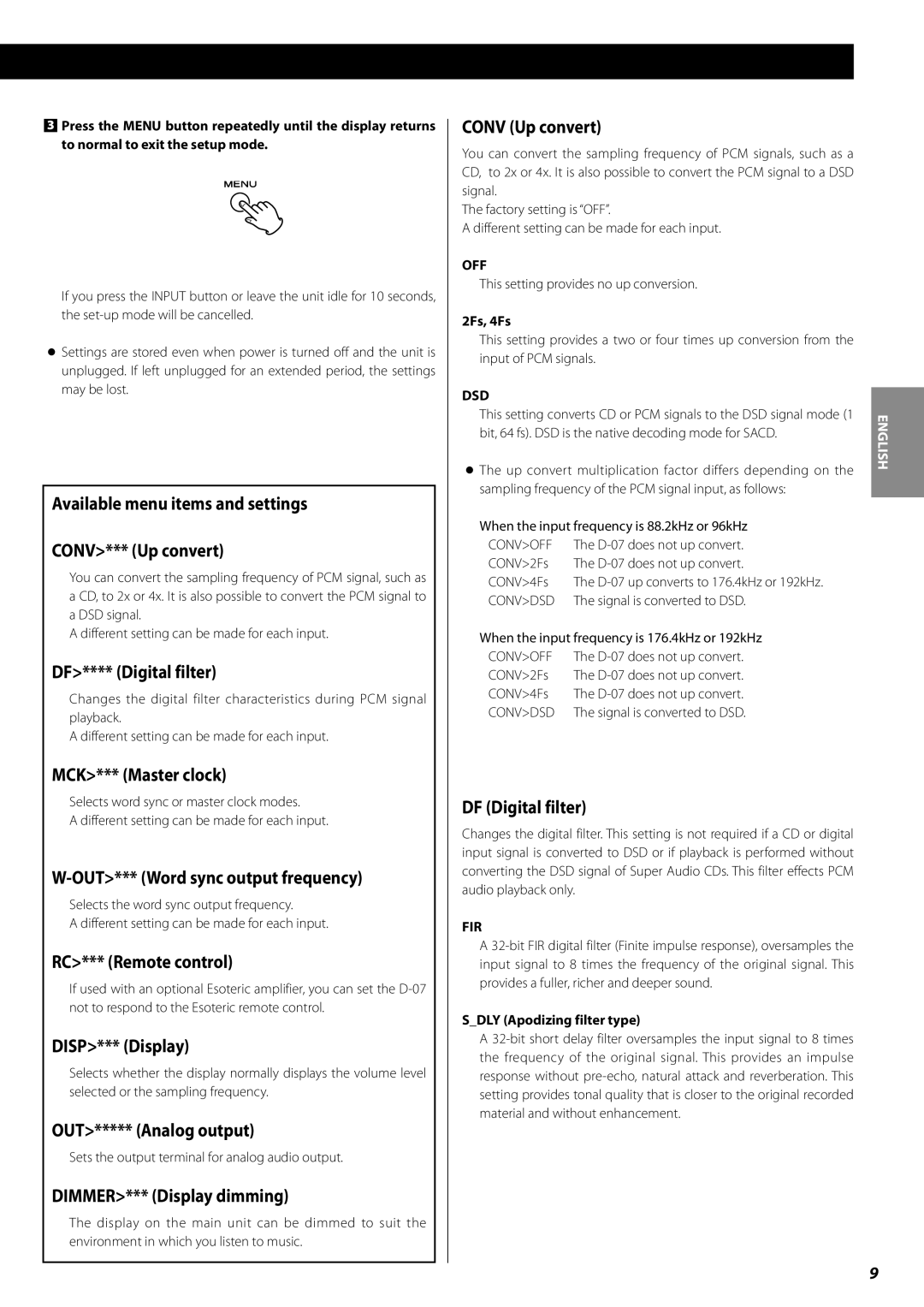

3Press the MENU button repeatedly until the display returns to normal to exit the setup mode.

If you press the INPUT button or leave the unit idle for 10 seconds, the set-up mode will be cancelled.

<Settings are stored even when power is turned off and the unit is unplugged. If left unplugged for an extended period, the settings may be lost.

Available menu items and settings

CONV>*** (Up convert)

You can convert the sampling frequency of PCM signal, such as a CD, to 2x or 4x. It is also possible to convert the PCM signal to a DSD signal.

A different setting can be made for each input.

DF>**** (Digital filter)

Changes the digital filter characteristics during PCM signal playback.

A different setting can be made for each input.

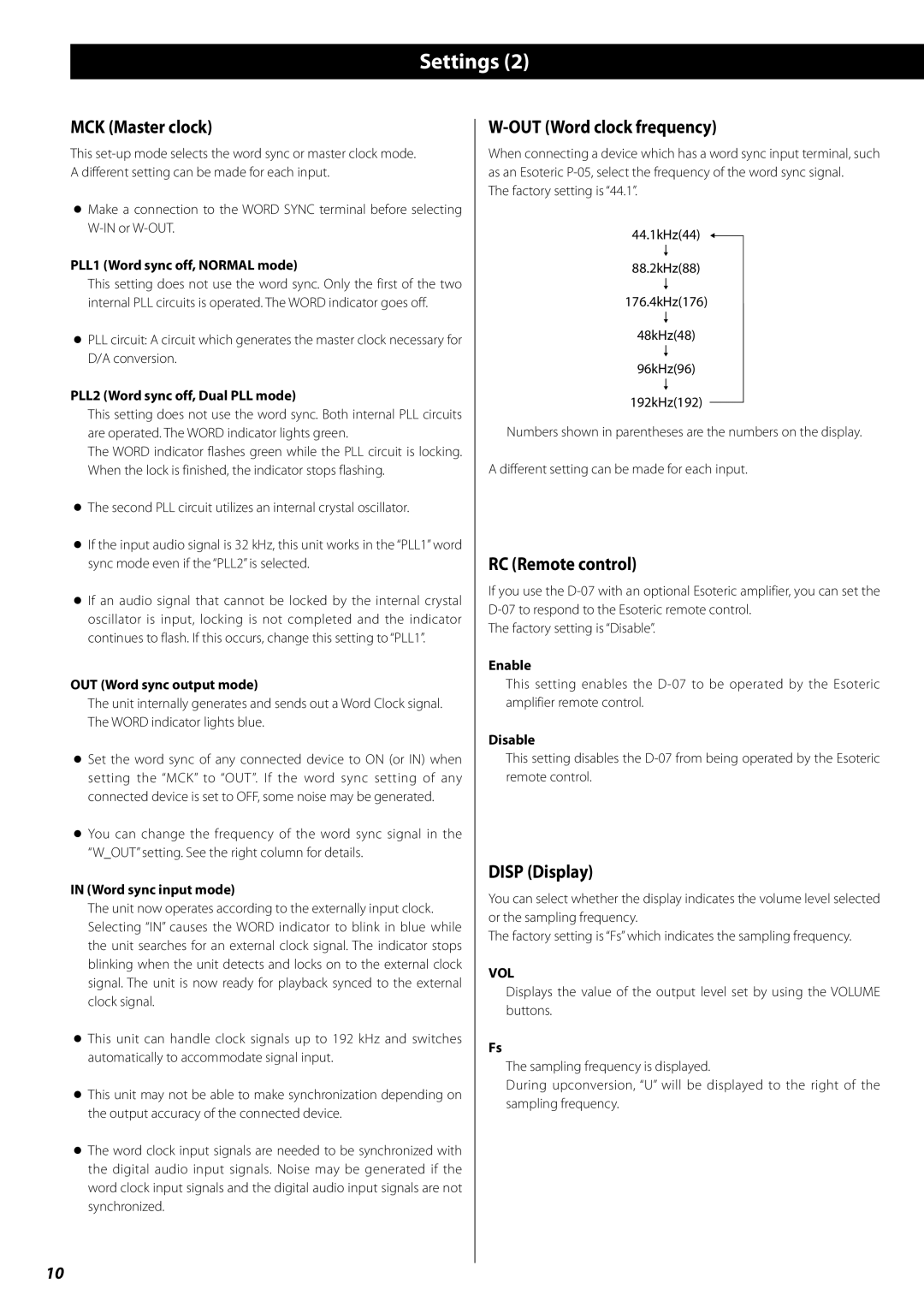

MCK>*** (Master clock)

Selects word sync or master clock modes.

A different setting can be made for each input.

W-OUT>*** (Word sync output frequency)

Selects the word sync output frequency.

A different setting can be made for each input.

RC>*** (Remote control)

If used with an optional Esoteric amplifier, you can set the D-07 not to respond to the Esoteric remote control.

DISP>*** (Display)

Selects whether the display normally displays the volume level selected or the sampling frequency.

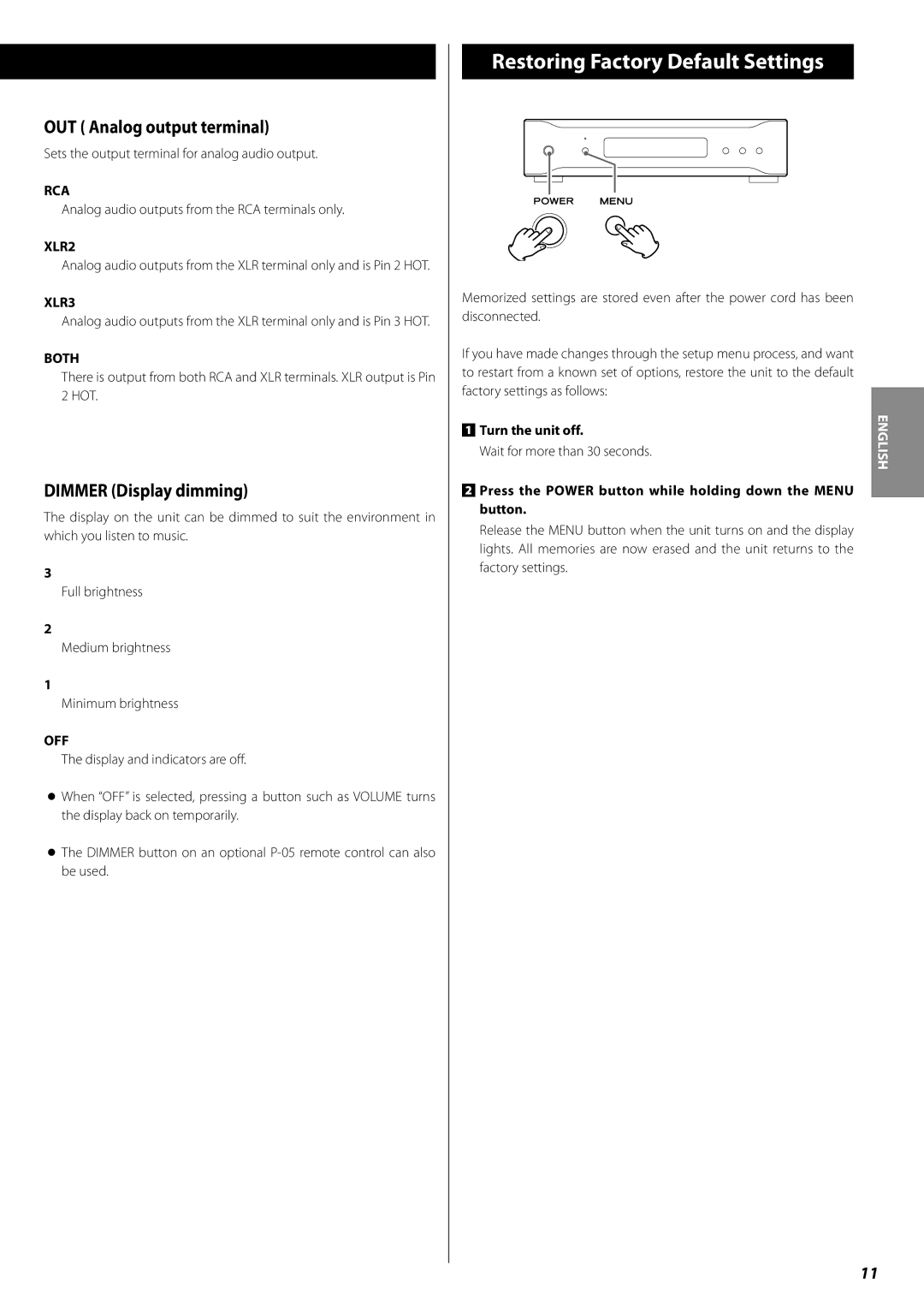

OUT>***** (Analog output)

Sets the output terminal for analog audio output.

DIMMER>*** (Display dimming)

The display on the main unit can be dimmed to suit the environment in which you listen to music.

CONV (Up convert)

You can convert the sampling frequency of PCM signals, such as a CD, to 2x or 4x. It is also possible to convert the PCM signal to a DSD signal.

The factory setting is “OFF”.

A different setting can be made for each input.

OFF

This setting provides no up conversion.

2Fs, 4Fs

This setting provides a two or four times up conversion from the input of PCM signals.

DSD





This setting converts CD or PCM signals to the DSD signal mode (1

ENGLISH

bit, 64 fs). DSD is the native decoding mode for SACD.



< The up convert multiplication factor differs depending on the



sampling frequency of the PCM signal input, as follows:



When the input frequency is 88.2kHz or 96kHz



CONV>OFF

The D-07 does not up convert.



CONV>2Fs

The D-07 does not up convert.



CONV>4Fs

The D-07 up converts to 176.4kHz or 192kHz.



CONV>DSD

The signal is converted to DSD.



When the input frequency is 176.4kHz or 192kHz



CONV>OFF

The D-07 does not up convert.



CONV>2Fs

The D-07 does not up convert.



CONV>4Fs

The D-07 does not up convert.



CONV>DSD

The signal is converted to DSD.



DF (Digital filter)

Changes the digital filter. This setting is not required if a CD or digital input signal is converted to DSD or if playback is performed without converting the DSD signal of Super Audio CDs. This filter effects PCM audio playback only.

FIR

A 32-bit FIR digital filter (Finite impulse response), oversamples the input signal to 8 times the frequency of the original signal. This provides a fuller, richer and deeper sound.

S_DLY (Apodizing filter type)

A 32-bit short delay filter oversamples the input signal to 8 times the frequency of the original signal. This provides an impulse response without pre-echo, natural attack and reverberation. This setting provides tonal quality that is closer to the original recorded material and without enhancement.
