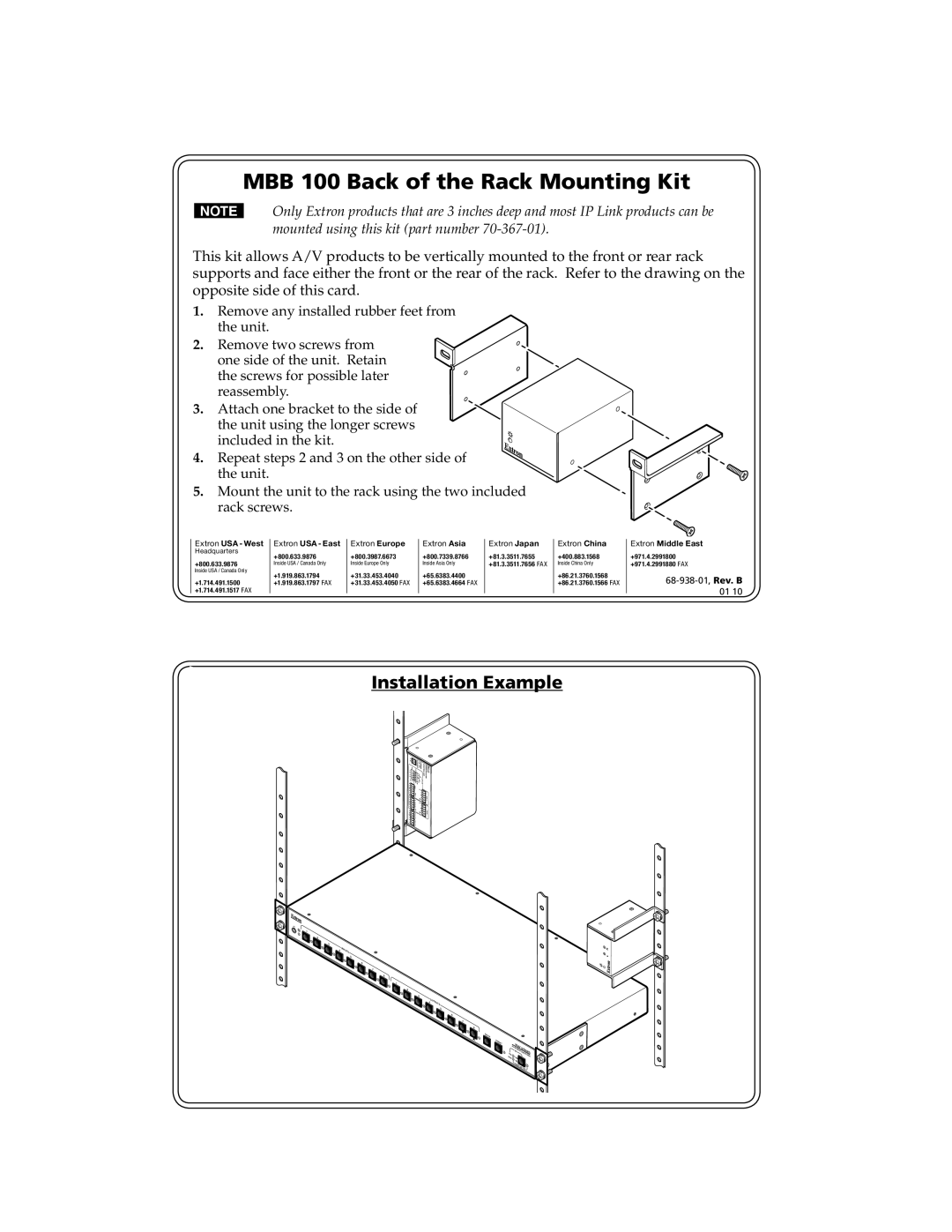

MBB 100 Back of the Rack Mounting Kit

NOnly Extron products that are 3 inches deep and most IP Link products can be mounted using this kit (part number 70-367-01).

This kit allows A/V products to be vertically mounted to the front or rear rack supports and face either the front or the rear of the rack. Refer to the drawing on the opposite side of this card.

1.Remove any installed rubber feet from the unit.

2. Remove two screws from one side of the unit. Retain the screws for possible later reassembly.

3. Attach one bracket to the side of the unit using the longer screws included in the kit.

4. Repeat steps 2 and 3 on the other side of the unit.

5.Mount the unit to the rack using the two included rack screws.

Extron USA - West

Headquarters

+800.633.9876

Inside USA / Canada Only

+1.714.491.1500 +1.714.491.1517 FAX

Extron USA - East

+800.633.9876

Inside USA / Canada Only

+1.919.863.1794 +1.919.863.1797 FAX

Extron Europe	Extron Asia	Extron Japan
+800.3987.6673	+800.7339.8766	+81.3.3511.7655
Inside Europe Only	Inside Asia Only	+81.3.3511.7656 FAX
+31.33.453.4040	+65.6383.4400
+31.33.453.4050 FAX	+65.6383.4664 FAX

Extron China

+400.883.1568

Inside China Only

+86.21.3760.1568 +86.21.3760.1566 FAX

Extron Middle East

+971.4.2991800 +971.4.2991880 FAX

68-938-01,Rev. B

01 10

Installation Example

	0.2AMAX	POWER		MIXER/VOLUME CONTROLLER
	LEVEL12V		INPUTS		MVC121
		48V
		L
		R
L
		L
R
OU		R
	TPUTS

IR

1

2

3

4 INPUTS

5

6

7

8

1

2

3

4OUTPUTS

5

6

7

8

ENTER

PRESET	MAV
AV		SERIES
	MA
VID	I/OTRIX	WITCHER
AUD	-+dB
	dB
	A
	UDIOS
		ETUP

L R
