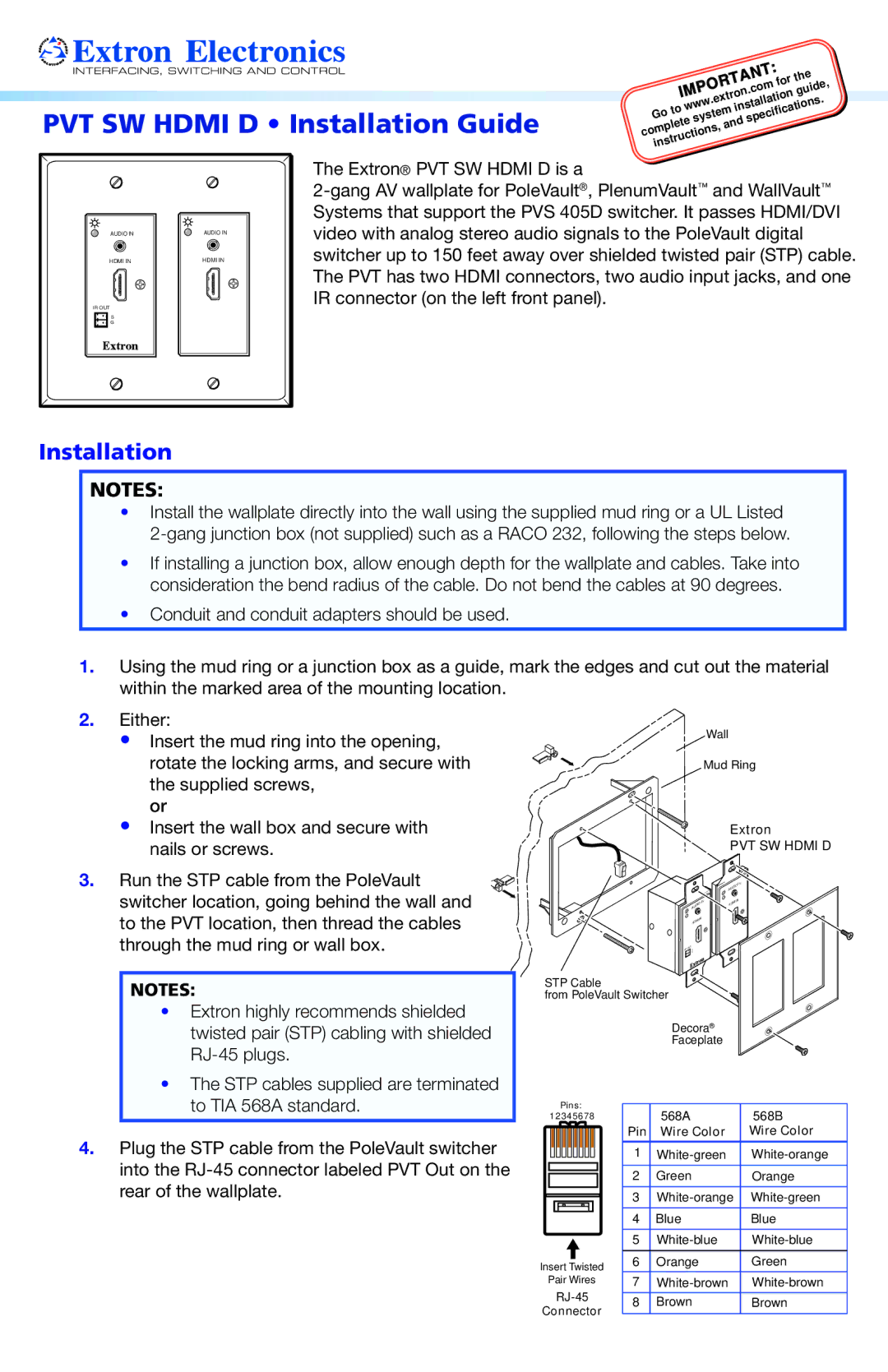

PVT SW HDMI D • Installation Guide

	IMPORTANT:					the
				.com	for	guide,
	.extron					.
	towww		installation
Go	system			specifications
complete		and
instructions,

		The Extron® PVT SW HDMI D is a
		2-gang AV wallplate for PoleVault®, PlenumVault™ and WallVault™
		Systems that support the PVS 405D switcher. It passes HDMI/DVI
AUDIO IN	AUDIO IN	video with analog stereo audio signals to the PoleVault digital
HDMI IN	HDMI IN	switcher up to 150 feet away over shielded twisted pair (STP) cable.
		The PVT has two HDMI connectors, two audio input jacks, and one
IR OUT		IR connector (on the left front panel).
S
G
Installation
NOTES:

•Install the wallplate directly into the wall using the supplied mud ring or a UL Listed

2-gang junction box (not supplied) such as a RACO 232, following the steps below.

•If installing a junction box, allow enough depth for the wallplate and cables. Take into consideration the bend radius of the cable. Do not bend the cables at 90 degrees.

•Conduit and conduit adapters should be used.

1.Using the mud ring or a junction box as a guide, mark the edges and cut out the material within the marked area of the mounting location.

2.Either:

•Insert the mud ring into the opening, rotate the locking arms, and secure with the supplied screws,

or

•Insert the wall box and secure with nails or screws.

3. Run the STP cable from the PoleVault switcher location, going behind the wall and to the PVT location, then thread the cables through the mud ring or wall box.

NOTES:

•Extron highly recommends shielded twisted pair (STP) cabling with shielded RJ-45 plugs.

•The STP cables supplied are terminated to TIA 568A standard.

4.Plug the STP cable from the PoleVault switcher into the RJ-45 connector labeled PVT Out on the rear of the wallplate.

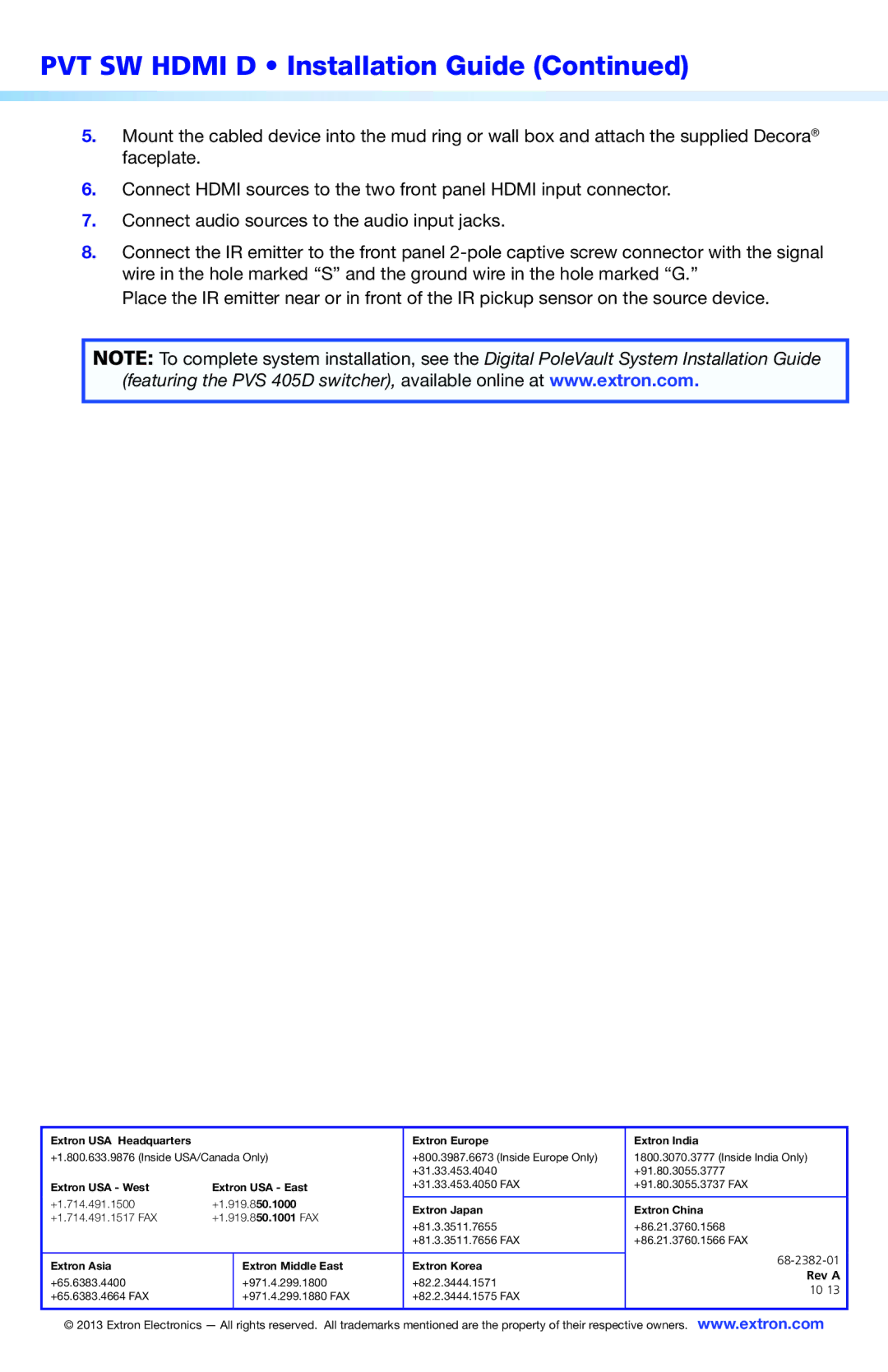

Wall

Mud Ring

			Extron
			PVT SW HDMI D
				IN
			AUDIO
		IN	HDMI	IN
		AUDIO
		IN
		HDMI
STP Cable
from PoleVault Switcher
		Decora®
		Faceplate
Pins:		568A		568B
12345678
	Pin	Wire Color		Wire Color
	1	White-green		White-orange
	2	Green		Orange
	3	White-orange		White-green
	4	Blue		Blue
	5	White-blue		White-blue
Insert Twisted	6	Orange		Green
Pair Wires	7	White-brown		White-brown
RJ-45	8	Brown		Brown
