24 inch refrigerators ’

FREE STANDING REFRIGERATORS: FFJA4845X / FFJA4845B

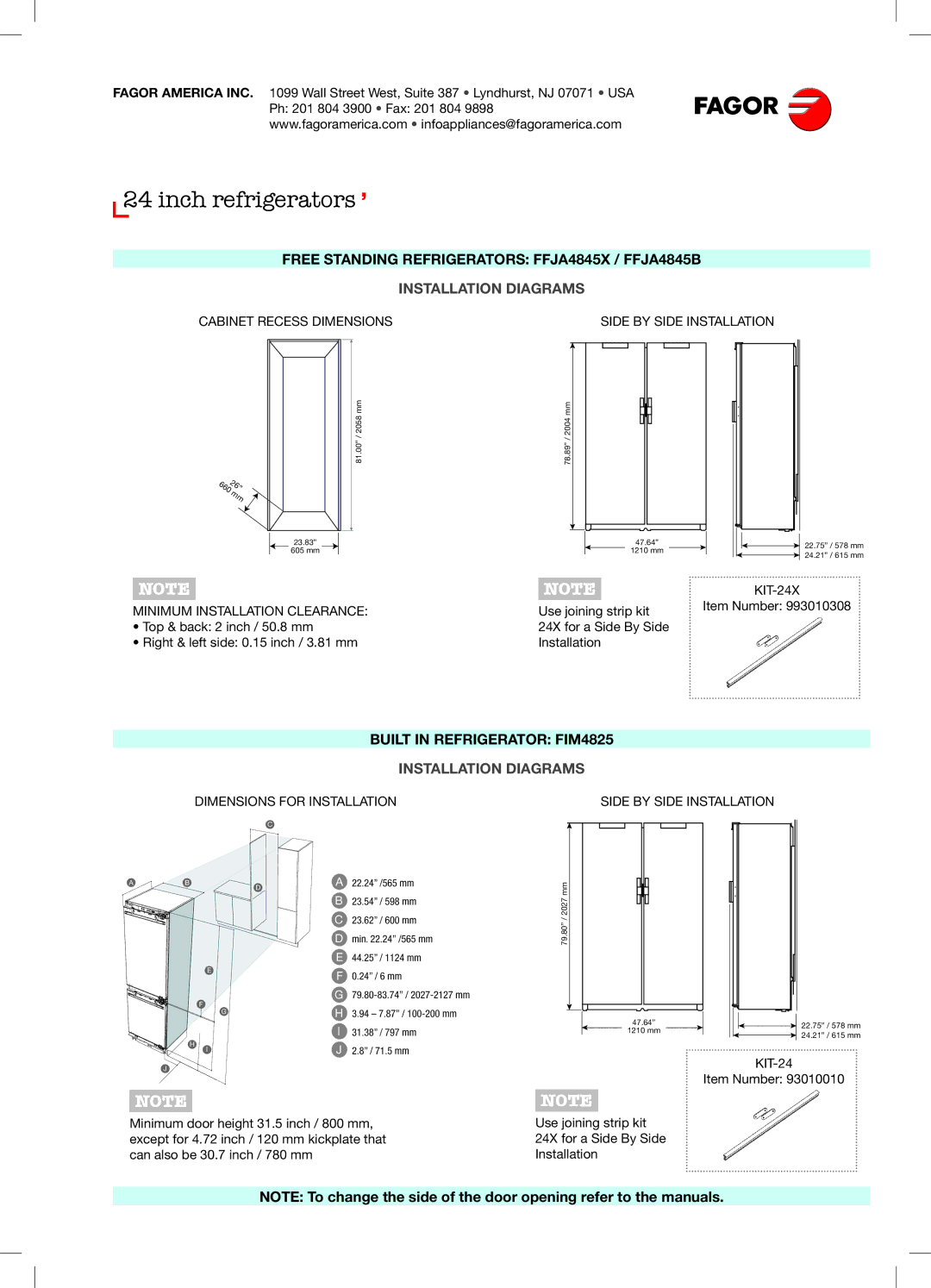

INSTALLATION DIAGRAMS

CABINET RECESS DIMENSIONS SIDE BY SIDE INSTALLATION

66026” mm

23.83”

605 mm

81.00” / 2058 mm	78.89” / 2004 mm
	47.64”
	1210 mm

22.75” / 578 mm 24.21” / 615 mm

NOTE	NOTE
MINIMUM INSTALLATION CLEARANCE:	Use joining strip kit
• Top & back: 2 inch / 50.8 mm	24X for a Side By Side
• Right & left side: 0.15 inch / 3.81 mm	Installation

KIT-24X

Item Number: 993010308

BUILT IN REFRIGERATOR: FIM4825

INSTALLATION DIAGRAMS

DIMENSIONS FOR INSTALLATION

C

A	B	D	A	22.24” /565 mm
			B	23.54” / 598 mm
			C	23.62” / 600 mm
			D	min. 22.24” /565 mm
			E	44.25” / 1124 mm
	E		F	0.24” / 6 mm
	F		G	79.80-83.74” / 2027-2127 mm
			H
	G			3.94 – 7.87” / 100-200 mm
			I	31.38” / 797 mm
	H		J	2.8” / 71.5 mm
	I
	J

NOTE

Minimum door height 31.5 inch / 800 mm, except for 4.72 inch / 120 mm kickplate that can also be 30.7 inch / 780 mm

SIDE BY SIDE INSTALLATION
79.80” / 2027 mm
47.64”	22.75” / 578 mm
1210 mm
	24.21” / 615 mm

KIT-24

Item Number: 93010010

NOTE

Use joining strip kit 24X for a Side By Side Installation

NOTE: To change the side of the door opening refer to the manuals.
