Frigidaire FGGC3045K S/W/B Built-InCooktop Specifications, Optional Accessories, Built-InCooktops

Built-In Cooktops

FGGC3045K S/W/B 30" Gas

	Product Dimensions				Required Clearances
A - Width	B - Depth	C - Height	G (min.)		H (min.)	I (min.)	J (min.)
30"	21-3/4"	5"	2"		7"	7"	2-1/4"
	Product Cutout Dimensions		K - Cabinet Opening Width			Utility Connection Locations
D - Width (min.- max.)	E - Depth (min.- max.)	F - Height (min.)*		(min.)		Power Supply	Gas Supply
27-1/4" - 28-1/2"	19-1/8" - 19-3/4"	8"		30"		Right Rear	Right Rear

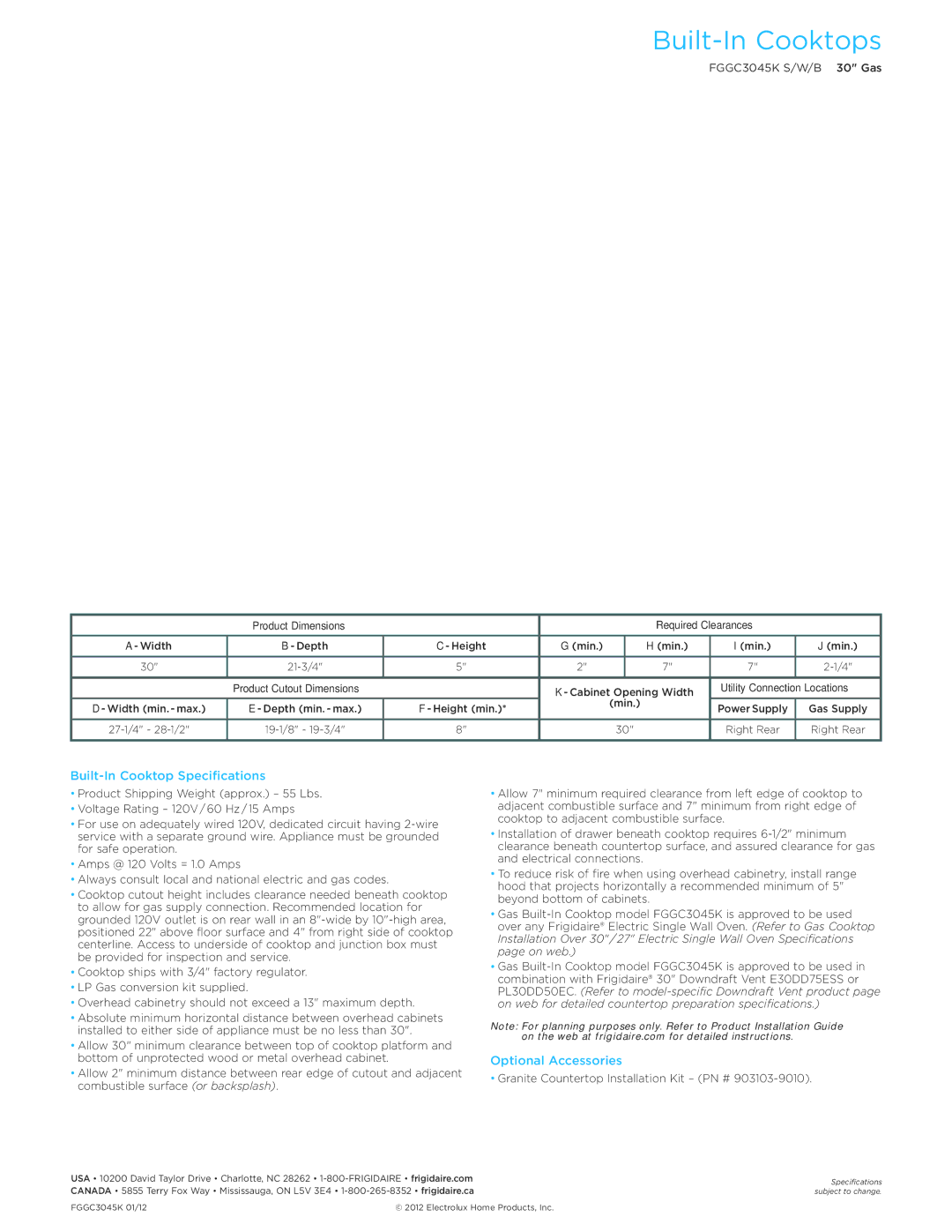

Built-In Cooktop Specifications

•Product Shipping Weight (approx.) – 55 Lbs.

•Voltage Rating – 120V / 60 Hz / 15 Amps

•For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate ground wire. Appliance must be grounded for safe operation.

•Amps @ 120 Volts = 1.0 Amps

•Always consult local and national electric and gas codes.

•Cooktop cutout height includes clearance needed beneath cooktop to allow for gas supply connection. Recommended location for grounded 120V outlet is on rear wall in an 8"-wide by 10"-high area, positioned 22" above floor surface and 4" from right side of cooktop centerline. Access to underside of cooktop and junction box must be provided for inspection and service.

•Cooktop ships with 3/4" factory regulator.

•LP Gas conversion kit supplied.

•Overhead cabinetry should not exceed a 13" maximum depth.

•Absolute minimum horizontal distance between overhead cabinets installed to either side of appliance must be no less than 30".

•Allow 30" minimum clearance between top of cooktop platform and bottom of unprotected wood or metal overhead cabinet.

•Allow 2" minimum distance between rear edge of cutout and adjacent combustible surface (or backsplash).

USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca

•Allow 7" minimum required clearance from left edge of cooktop to adjacent combustible surface and 7" minimum from right edge of cooktop to adjacent combustible surface.

•Installation of drawer beneath cooktop requires 6-1/2" minimum clearance beneath countertop surface, and assured clearance for gas and electrical connections.

•To reduce risk of fire when using overhead cabinetry, install range hood that projects horizontally a recommended minimum of 5" beyond bottom of cabinets.

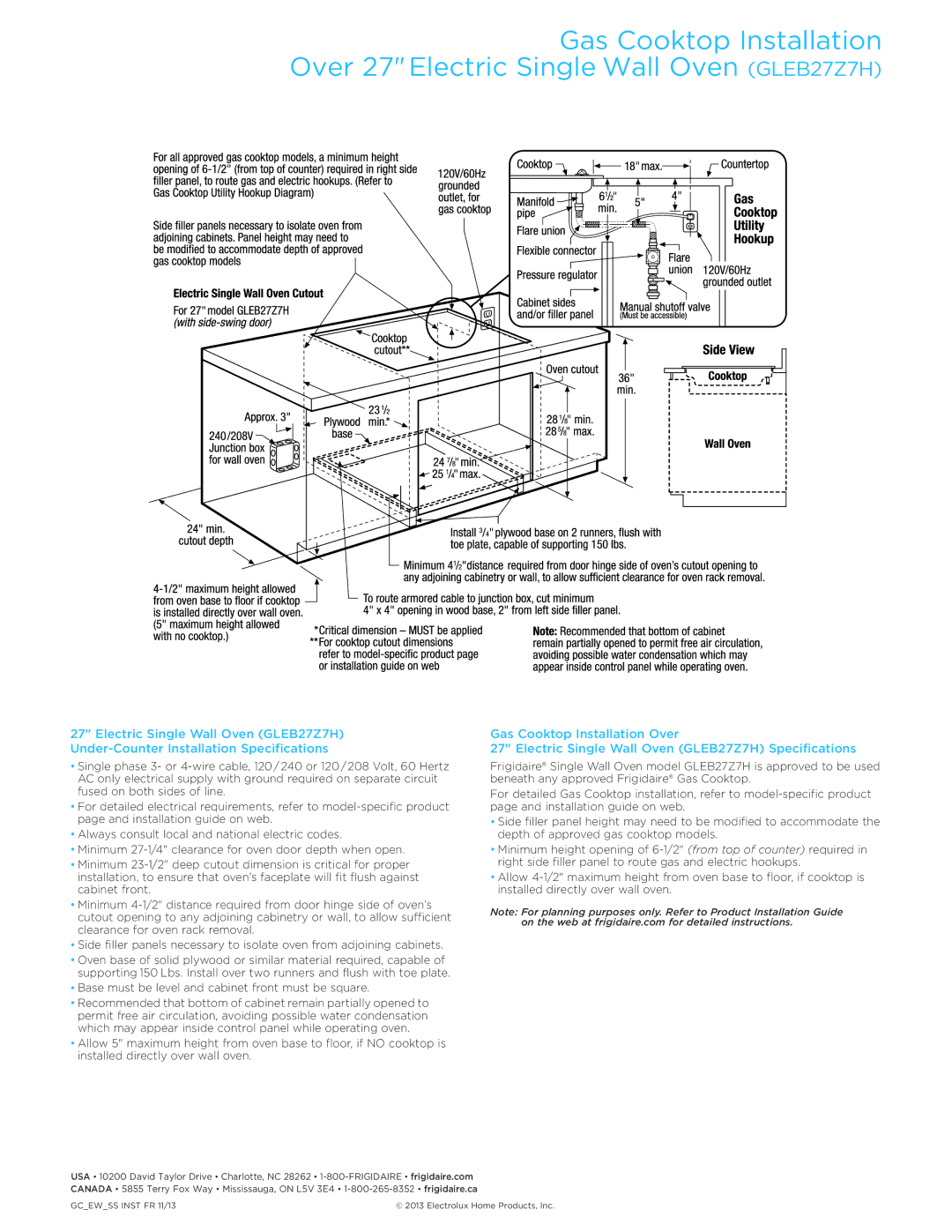

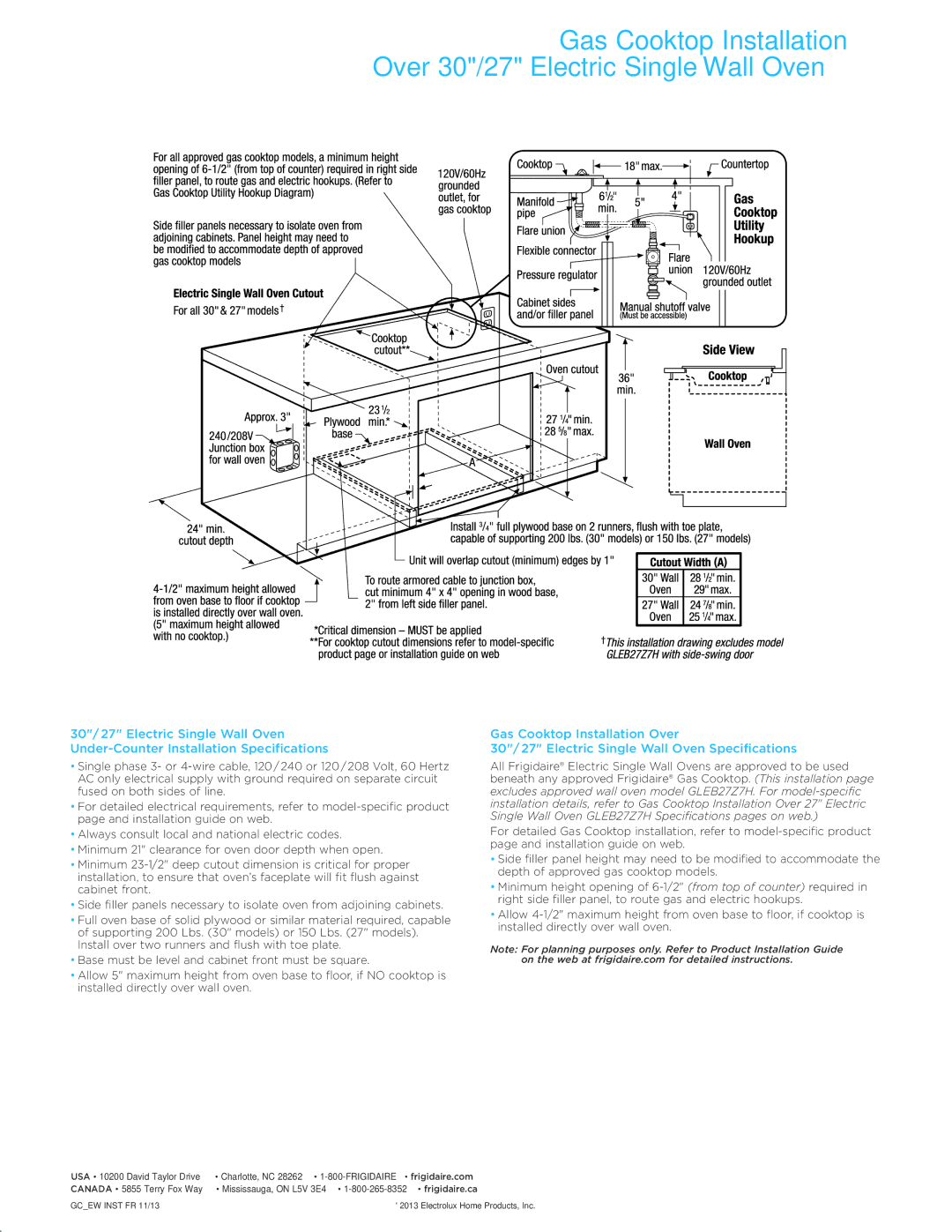

•Gas Built-In Cooktop model FGGC3045K is approved to be used over any Frigidaire® Electric Single Wall Oven. (Refer to Gas Cooktop Installation Over 30" / 27" Electric Single Wall Oven Specifications page on web.)

•Gas Built-In Cooktop model FGGC3045K is approved to be used in combination with Frigidaire® 30" Downdraft Vent E30DD75ESS or PL30DD50EC. (Refer to model-specific Downdraft Vent product page on web for detailed countertop preparation specifications.)

Note: For planning purposes only. Refer to Product Installation Guide on the web at frigidaire.com for detailed instructions.

Optional Accessories

•Granite Countertop Installation Kit – (PN # 903103-9010).

Accessories information available on the web at frigidaire.com

Specifications subject to change.

FGGC3045K 01/12 © 2012 Electrolux Home Products, Inc.
