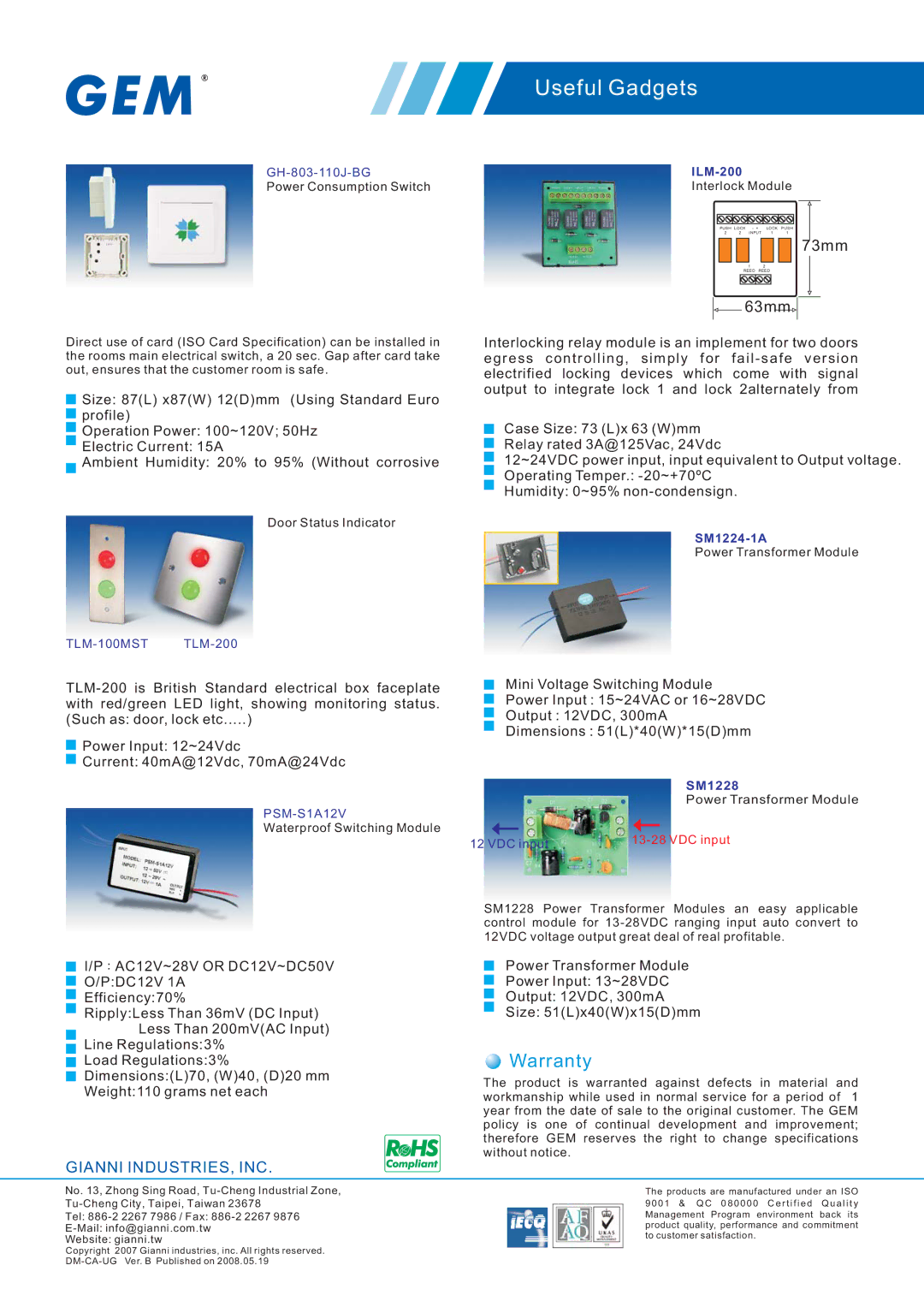

GH-803-110J-BG

Power Consumption Switch

Direct use of card (ISO Card Specification) can be installed in the rooms main electrical switch, a 20 sec. Gap after card take out, ensures that the customer room is safe.

Size: 87(L) x87(W) 12(D)mm (Using Standard Euro

profile)

Operation Power: 100~120V; 50Hz Electric Current: 15A

Ambient Humidity: 20% to 95% (Without corrosive

Door Status Indicator

TLM-100MST TLM-200

TLM-200 is British Standard electrical box faceplate with red/green LED light, showing monitoring status. (Such as: door, lock etc.....)

Power Input: 12~24Vdc

Current: 40mA@12Vdc, 70mA@24Vdc

PSM-S1A12V

Waterproof Switching Module

I/P ：AC12V~28V OR DC12V~DC50V

O/P:DC12V 1A

Efficiency:70%

Ripply:Less Than 36mV (DC Input)

Less Than 200mV(AC Input)

Line Regulations:3%

Load Regulations:3%

Dimensions:(L)70, (W)40, (D)20 mm

Weight:110 grams net each

GIANNI INDUSTRIES, INC.

No. 13, Zhong Sing Road, Tu-Cheng Industrial Zone,

Tu-Cheng City, Taipei, Taiwan 23678

Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876

E-Mail: info@gianni.com.tw

Website: gianni.tw

Copyright 2007 Gianni industries, inc. All rights reserved.

DM-CA-UG Ver. B Published on 2008.05.19

Useful Gadgets

ILM-200

Interlock Module

PUSH	LOCK	- +	LOCK	PUSH
2	2	INPUT	1	1

73mm

1 2

REED REED

63mm

Interlocking relay module is an implement for two doors e g r e s s c o n t r o l l i n g , s i m p l y f o r f a i l - s a f e v e r s i o n electrified locking devices which come with signal output to integrate lock 1 and lock 2alternately from

Case Size: 73 (L)x 63 (W)mm Relay rated 3A@125Vac, 24Vdc

12~24VDC power input, input equivalent to Output voltage. Operating Temper.: -20~+70ºC

Humidity: 0~95% non-condensign.

SM1224-1A

Power Transformer Module

Mini Voltage Switching Module

Power Input : 15~24VAC or 16~28VDC

Output : 12VDC, 300mA

Dimensions : 51(L)*40(W)*15(D)mm

SM1228

Power Transformer Module

12 VDC input 13-28 VDC input

SM1228 Power Transformer Modules an easy applicable control module for 13-28VDC ranging input auto convert to 12VDC voltage output great deal of real profitable.

Power Transformer Module

Power Input: 13~28VDC

Output: 12VDC, 300mA

Size: 51(L)x40(W)x15(D)mm

Warranty

The product is warranted against defects in material and workmanship while used in normal service for a period of 1 year from the date of sale to the original customer. The GEM policy is one of continual development and improvement; therefore GEM reserves the right to change specifications without notice.

The products are manufactured under an ISO 9 0 0 1 & Q C 0 8 0 0 0 0 C e r t i f i e d Q u a l i t y Management Program environment back its product quality, performance and commitment to customer satisfaction.
