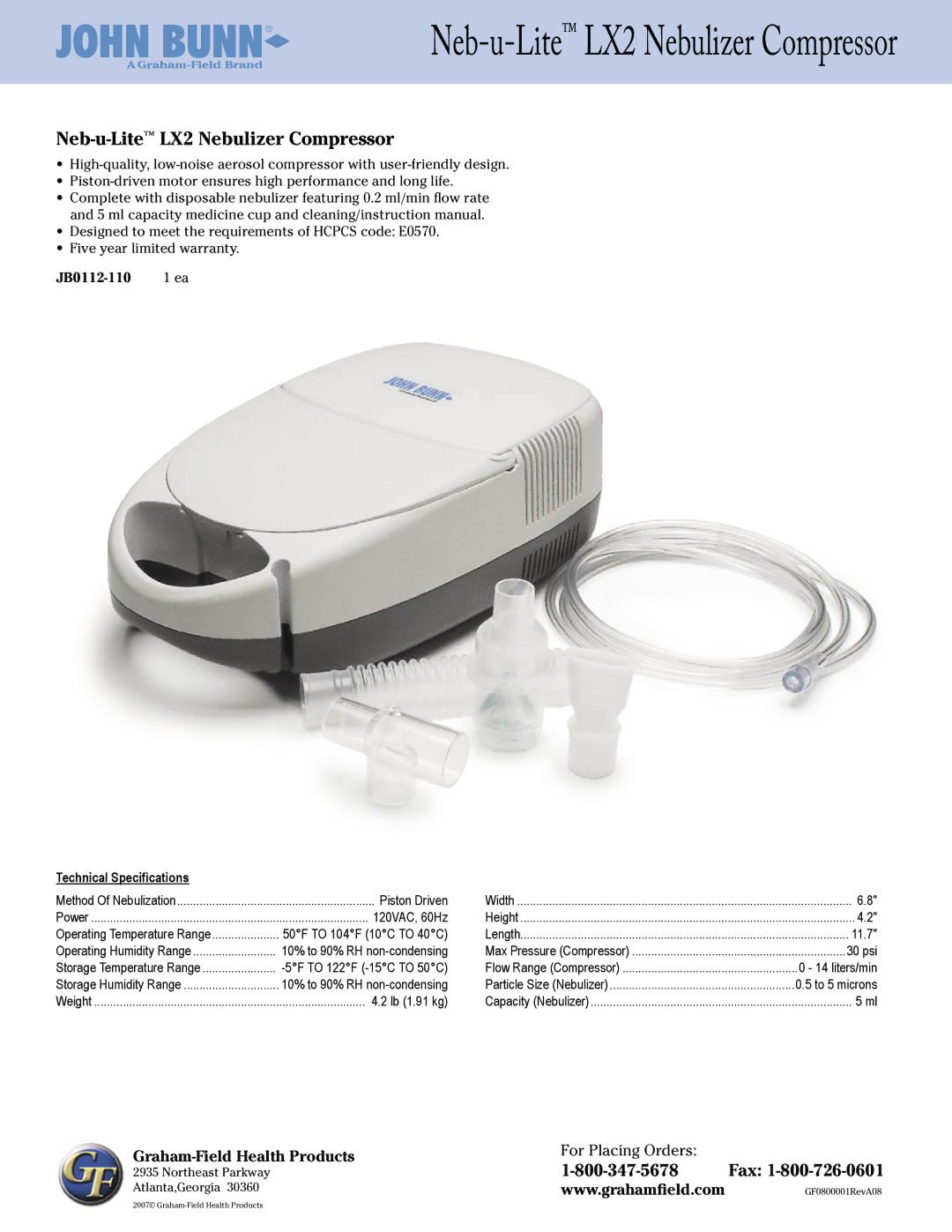

Neb-u-Lite™ LX2 Nebulizer Compressor
• High-quality, low-noise aerosol compressor with user-friendly design.
• Piston-driven motor ensures high performance and long life.
• Complete with disposable nebulizer featuring 0.2 ml/min fl ow rate
and 5 ml capacity medicine cup and cleaning/instruction manual.
• Designed to meet the requirements of HCPCS code: E0570.
• Five year limited warranty.
JB0112-110 1 ea
Method Of Nebulization .............................................................. Piston Driven
Power ....................................................................................... 120VAC, 60Hz
Operating Temperature Range ..................... 50°F TO 104°F (10°C TO 40°C)
Operating Humidity Range .......................... 10% to 90% RH non-condensing
Storage Temperature Range ....................... -5°F TO 122°F (-15°C TO 50°C)
Storage Humidity Range ..............................10% to 90% RH non-condensing
Weight ..................................................................................... 4.2 lb (1.91 kg)
Width ......................................................................................................... 6.8"
Height .........................................................................................................4.2"
Length.......................................................................................................11.7"
Max Pressure (Compressor) ...................................................................30 psi
Flow Range (Compressor) .......................................................0 - 14 liters/min
Particle Size (Nebulizer) ..........................................................0.5 to 5 microns
Capacity (Nebulizer) ..................................................................................5 ml
Technical Specifi cations
Neb-u-Lite™ LX2 Nebulizer Compressor
GF0800001RevA08
