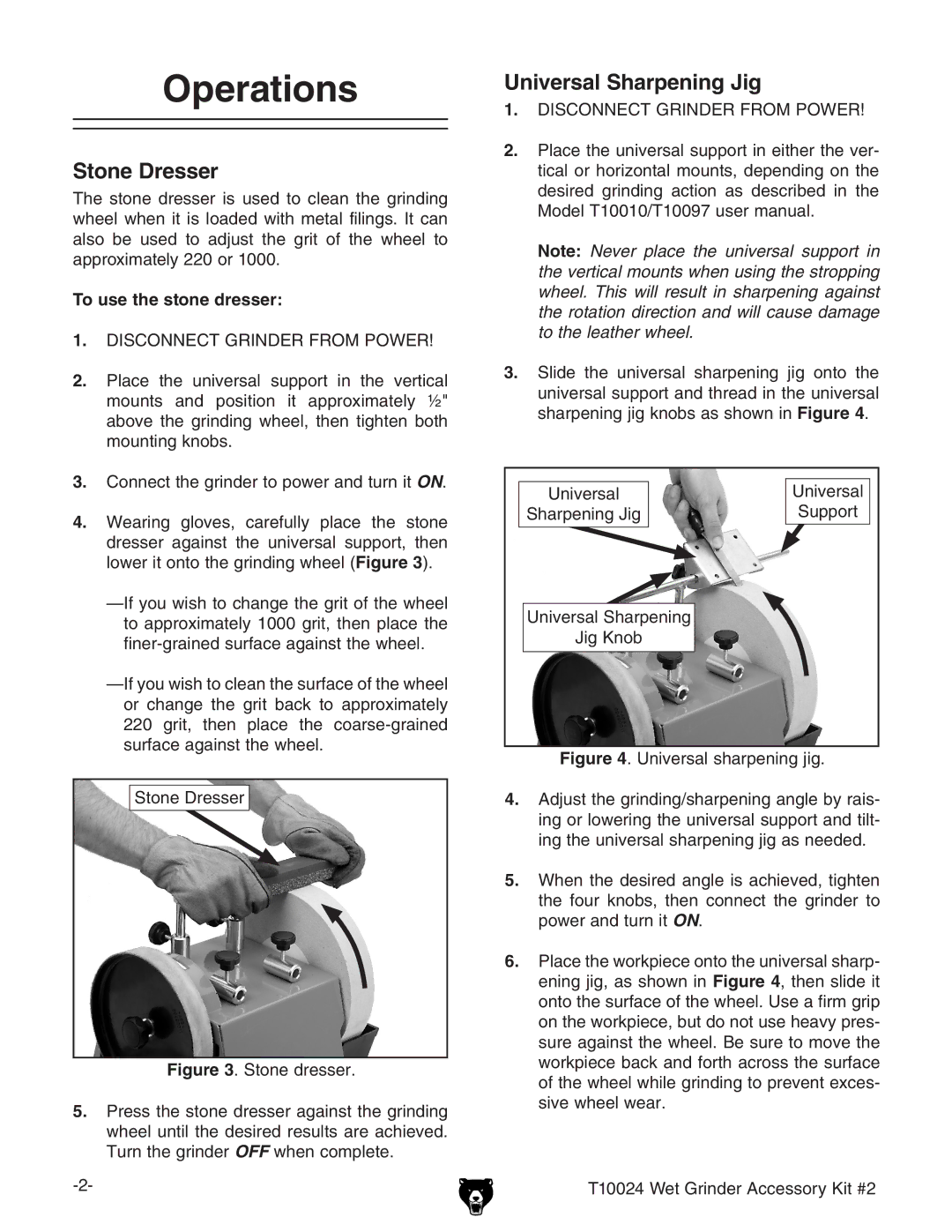

Operations

Stone Dresser

The stone dresser is used to clean the grinding wheel when it is loaded with metal filings. It can also be used to adjust the grit of the wheel to approximately 220 or 1000.

To use the stone dresser:

1.DISCONNECT GRINDER FROM POWER!

2.Place the universal support in the vertical mounts and position it approximately ½" above the grinding wheel, then tighten both mounting knobs.

3.Connect the grinder to power and turn it ON.

4.Wearing gloves, carefully place the stone dresser against the universal support, then lower it onto the grinding wheel (Figure 3).

—If you wish to change the grit of the wheel to approximately 1000 grit, then place the finer-grained surface against the wheel.

—If you wish to clean the surface of the wheel or change the grit back to approximately 220 grit, then place the coarse-grained surface against the wheel.

Stone Dresser

Figure 3. Stone dresser.

5.Press the stone dresser against the grinding wheel until the desired results are achieved. Turn the grinder OFF when complete.

-2-

Universal Sharpening Jig

1.DISCONNECT GRINDER FROM POWER!

2.Place the universal support in either the ver- tical or horizontal mounts, depending on the desired grinding action as described in the Model T10010/T10097 user manual.

Note: Never place the universal support in the vertical mounts when using the stropping wheel. This will result in sharpening against the rotation direction and will cause damage to the leather wheel.

3.Slide the universal sharpening jig onto the universal support and thread in the universal sharpening jig knobs as shown in Figure 4.

Universal	Universal
Sharpening Jig	Support
Universal Sharpening
Jig Knob

Figure 4. Universal sharpening jig.

4.Adjust the grinding/sharpening angle by rais- ing or lowering the universal support and tilt- ing the universal sharpening jig as needed.

5.When the desired angle is achieved, tighten the four knobs, then connect the grinder to power and turn it ON.

6.Place the workpiece onto the universal sharp- ening jig, as shown in Figure 4, then slide it onto the surface of the wheel. Use a firm grip on the workpiece, but do not use heavy pres- sure against the wheel. Be sure to move the workpiece back and forth across the surface of the wheel while grinding to prevent exces- sive wheel wear.

T10024 Wet Grinder Accessory Kit #2
