MODEL T10157

OAK WORKBENCH

INSTRUCTIONS

Figure 1. Model T10157 Oak Workbench.

Features

•Solid oak top (1 1⁄2" thick) with double rows of bench dog holes for each vise.

•Two storage drawers (with ball bearing slides) that are 14" wide x 13 3⁄4" long x 2 1⁄4" deep.

•Sturdy adjustable steel legs with leveling foot pads.

•Two oak-faced vises with removable top plate and 4" leadscrew travel, 13" wide x 2" thick.

•Four bench dogs.

•All wood surfaces finished with durable lac- quer.

•Overall dimensions: 62" wide x 30" in depth x 32"–39" tall.

•Weight: 155 lbs.

Inventory

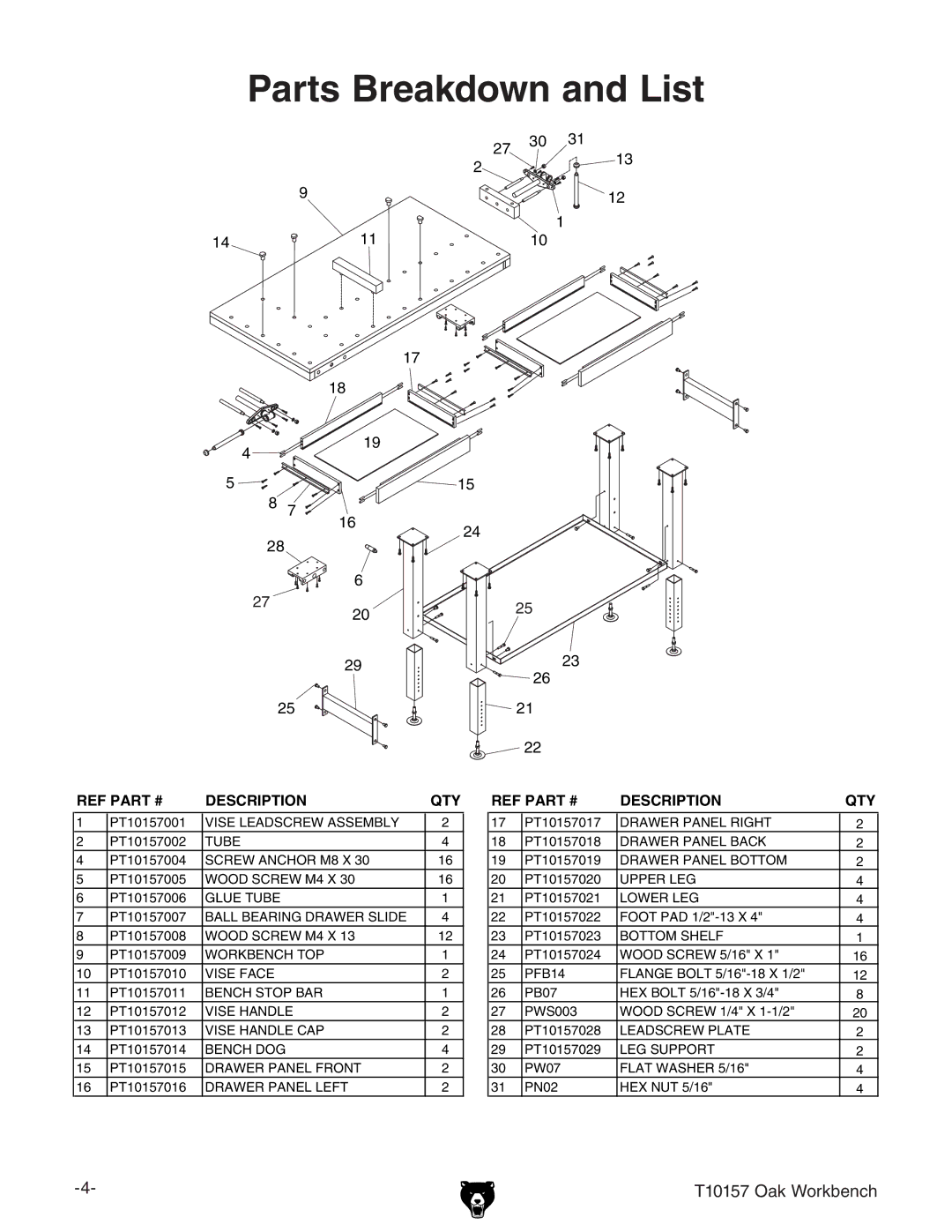

Use the parts breakdown and listing on Page 4 to perform an inventory of the shipment.

If any nonproprietary parts are missing (e.g. a bolt or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.

NOTICE

If you cannot find an item on the inventory parts list, check the mounting location on the workbench or examine the packaging materials carefully. Some items are pre- installed for shipping purposes.

Assembly



Tools Needed

Qty

Phillips Screwdriver #2

....................................... 1

Wrench or Socket 1⁄2"

1

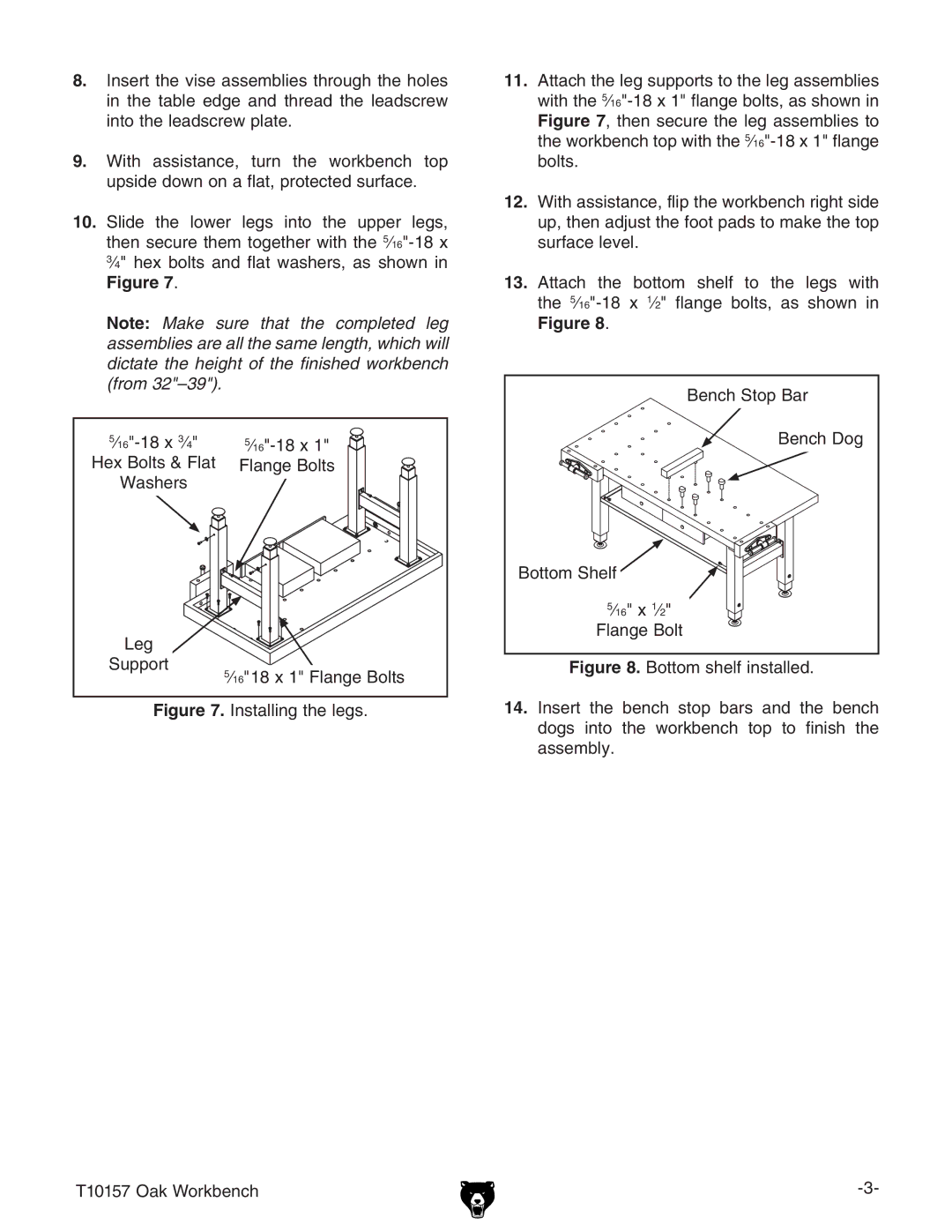

To assemble your workbench:

1.Insert the four M8 x 30 screw anchors into the holes at the ends of the front and back drawer panels for both drawers, as shown in

Figure 2.

M4 x 30

Wood Screws

M8 x 30

Screw Anchors

Figure 2. Attaching drawer side panels.
