Hitachi CP-S310W Ultra-PortableLCD Projector, Model, Performance Specifications, Dimensions

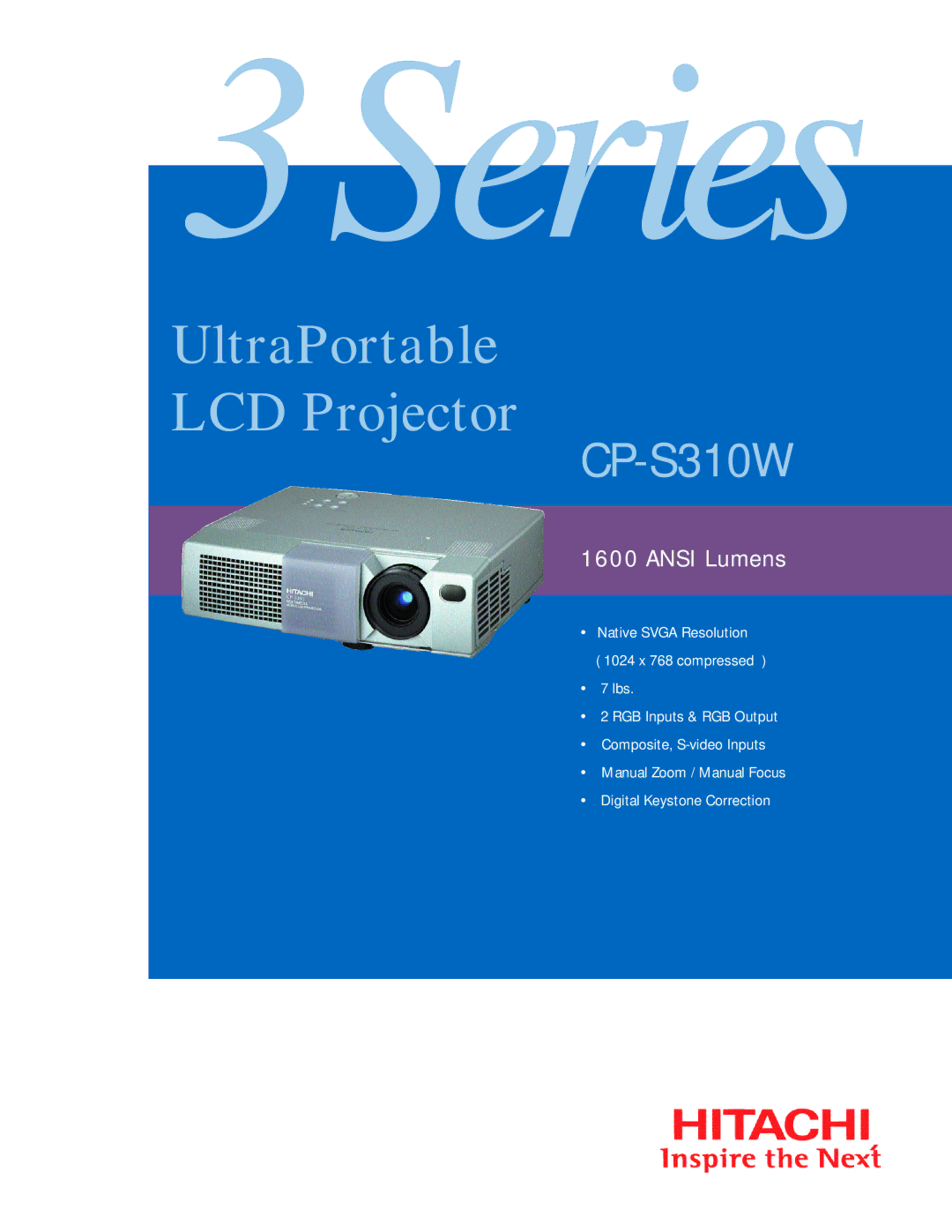

CP-S310W Ultra-Portable LCD Projector

Model

CP-S310W

Performance Specifications

Liquid crystal panel structure	0.9” polysilicon active-matrix TFT x 3
Number of Pixels	480,000 pixels ( H800 x V600 )
Resolution	800 x 600 color pixels
Lens	Manual zoom 1:1.2 ( F1.7 - 2.0 )
Lamp	160W UHB
Brightness	1, 600 ANSI lumens
Contrast ratio	300 : 1
Speakers	1W X 2 Stereo
Power supply	AC90-132V / AC220-240V 50 / 60HZ
Power consumption	250W
Operating temperature	0° - 35° C ( 32° - 95° F )
Input signals	VGA, S-VGA, XGA ( COMPRESSED ), MAC13”, MAC16”, NTSC, NTSC 4.43, PAL, M-PAL,
	N-PAL, PAL60, SECAM, S-Video
Noise level	37 dB

Input / Output Terminals

RGB iput signal terminals	RGB	D - sub 15 - pin shrink terminal x 2
	AUDIO	Mini jack x 2
RGB output signal terminals	RGB	D - sub 15 - pin shrink terminal x 1
	AUDIO	Mini jack x 1
Video signal input terminals	S-VIDEO	Mini - Din 4 pin terminal x 1
	COMPOSITE	RCA jack x 1
Control terminals		D - sub 15 - pin shrink terminal x 1

Dimensions

( W x H x D ) 11.7” x 3.O” x 8.98”

Weight

7 lbs.

Supplied Accessories

Card type remote control, PS/2 mouse cable, Batteries, Power cord ( U.S., UK, Euro ), Video / audio cable, RGB cable, Multiple language operator’s manual,

Handle strip and Carry case

a:Distance from the LCD projector to the screen. The projection distance shown in the table below are for full size ( 800 X 600 dots )
