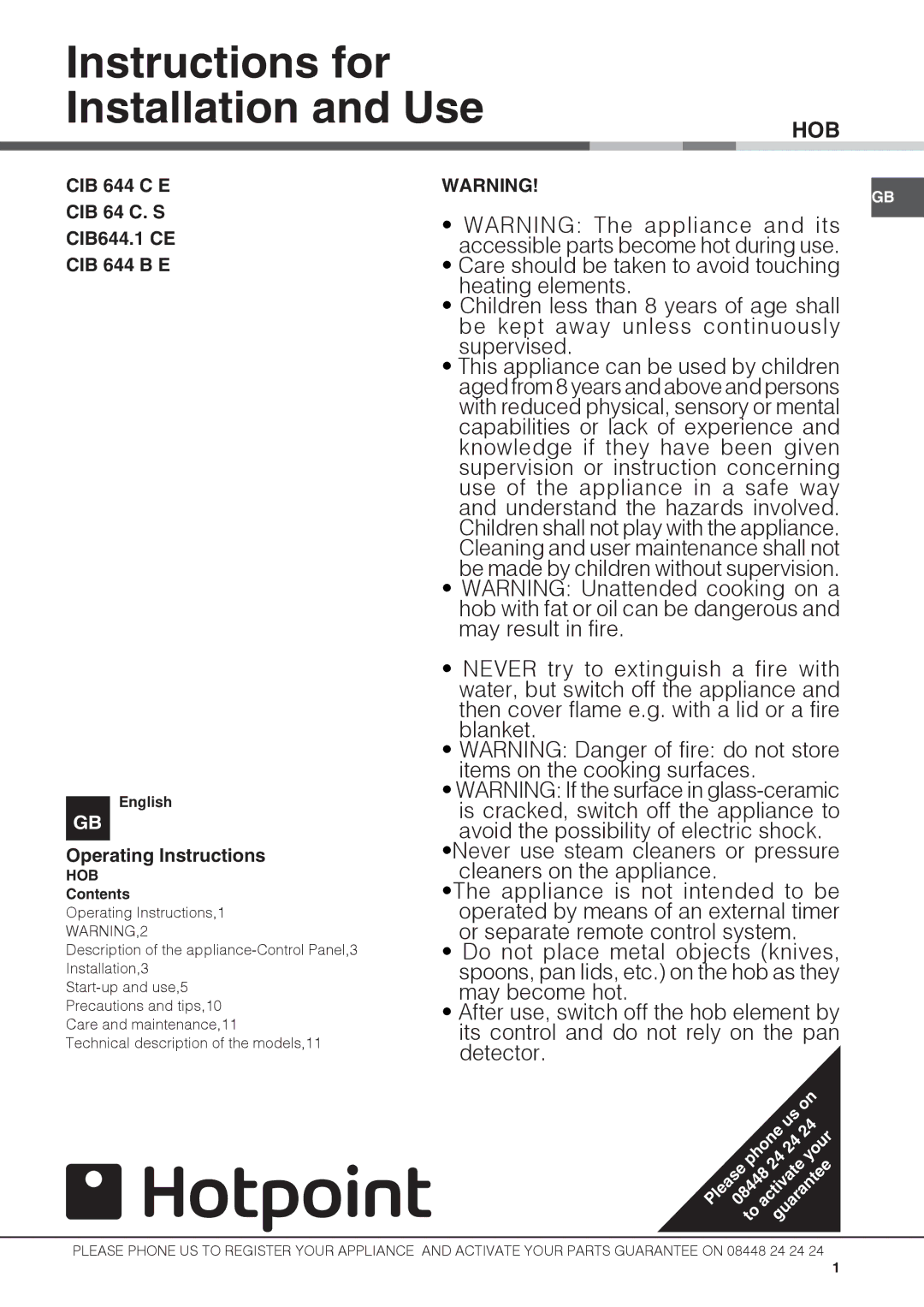

Hotpoint CIB 644 C E Installation, Description of the appliance, Positioning, Control panel

GB	Description of the appliance
	Control panel

6	1	5
3	2	4

The control panel described in this manual is only a representative example: it may not exactly match the panelon your appliance.

When using the touch control pannel panel:

Do not use gloves

Use a clean finger

Touch the glass smoothly

1INCREASE POWER/ TIME button - controls the power and time

2REDUCE POWER/ TIME button controls the power and time.

3COOKING ZONE SELECTOR button is used to select the desired cooking zone

4ON/OFF button switches the appliance on and off.

5CONTROL PANEL LOCK button prevents accidental changes to the hob settings and shows the control panel has been locked.

6HEATER DISPLAY -shows the cooking zone selected, power level, preset time of cooking, booster funcition activated.

!For detailed information on the control panel functions refer to “Start-up and use” section.

!This product complies with the requirements of the latest European Directive on the limitation of power

c o n s u m p t i o n o f t h e s t a n d b y m o d e . If no operations are carried out for a period of 2 minutes, after the residual heat indicator lights turn off and the fan stops (if present), the appliance a u t o m a t i c a l l y s w i t c h e s t o t h e . o f f m o d e . . The appliance resumes the operating mode once the ON/OFF button is pressed.

!Depending on the number of heaters/cooking zones on the hob the COOKING ZONE SELECTOR BUTTONS may

vary between and

Installation

!Before operating your new appliance please read this instruction booklet carefully. It contains important information concerning the safe operation, installation and maintenance of the appliance.

!Please keep these operating instructions for future reference. Pass them on to any new owners of the appliance.

Positioning

!Keep all packaging material out of the reach of children. It may present a choking or suffocation hazard (see

Precautions and tips).

!The appliance must be installed by a qualified professional in accordance with the instructions provided. Incorrect installation may cause harm to people and animals or may damage property.

Built-in appliance

Use a suitable cabinet to ensure that the appliance functions properly.

•The supporting surface must be heat-resistant up to a temperature of approximately 100°C.

•If the appliance is to be installed above an oven, the oven must be equipped with a forced ventilation cooling system.

•Avoid installing the hob above a dishwasher: if this cannot be avoided, place a waterproof separation device between the two appliances.

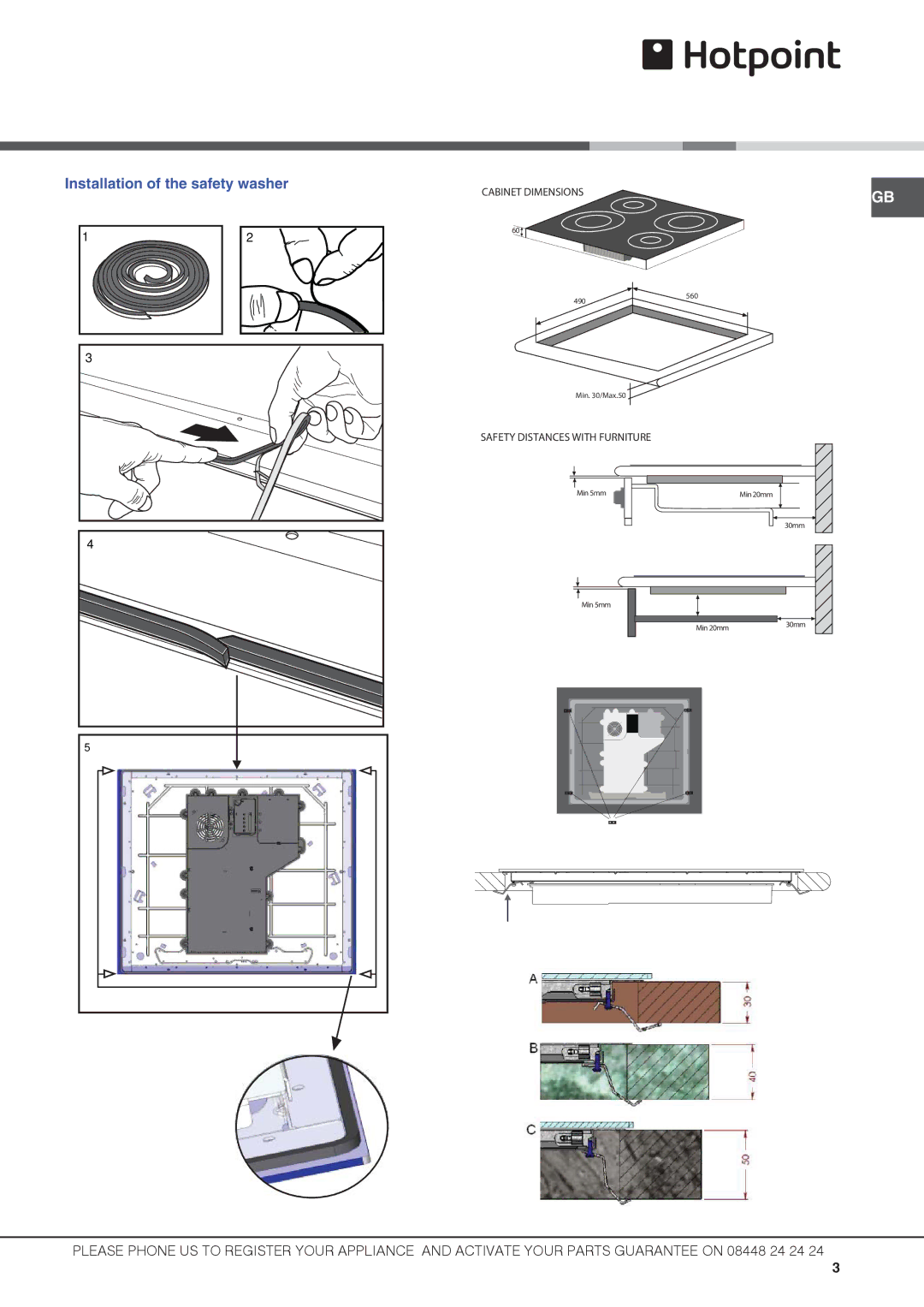

Ventilation

To allow adequate ventilation and to avoid overheating of the surrounding surfaces the hob should be positioned as follows:

•At a minimum distance of 40 mm from the back panel or any other vertical surfaces.

•So that a minimum distance of 20 mm is maintained between the installation cavity and the cabinet underneath.

•Kitchen cabinets adjacent to the appliance and taller than the top of the hob must be at least 450 mm from the edge of the hob.

Fixing

The appliance must be installed on a perfectly level supporting surface. Any deformities caused by improper fixing could affect the features and operation of the hob. The thickness of the supporting surface should be taken into account when choosing the length of the screws for the fixing hooks:

• 3,5 mm thick: 9,5 mm screws

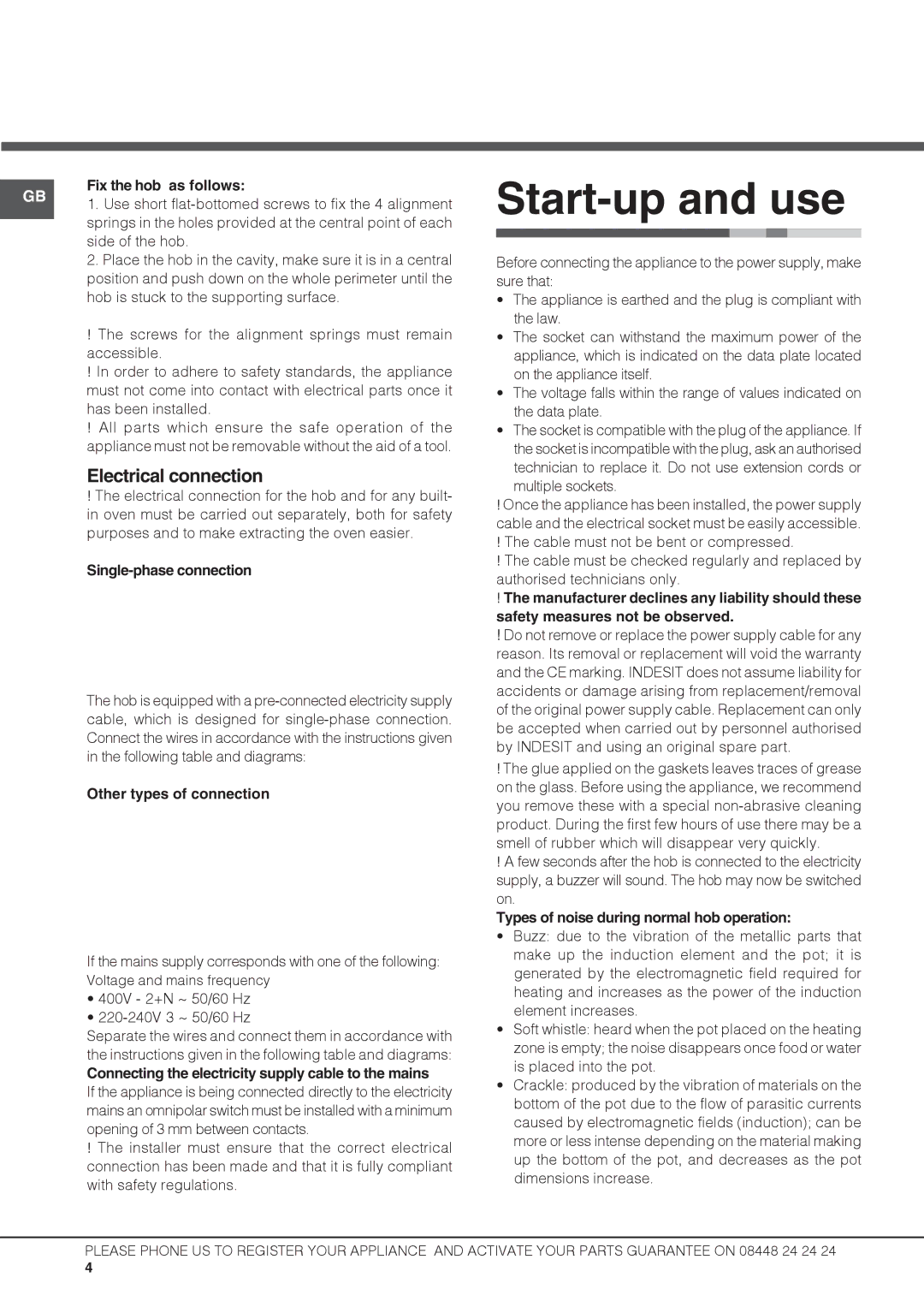

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

2
