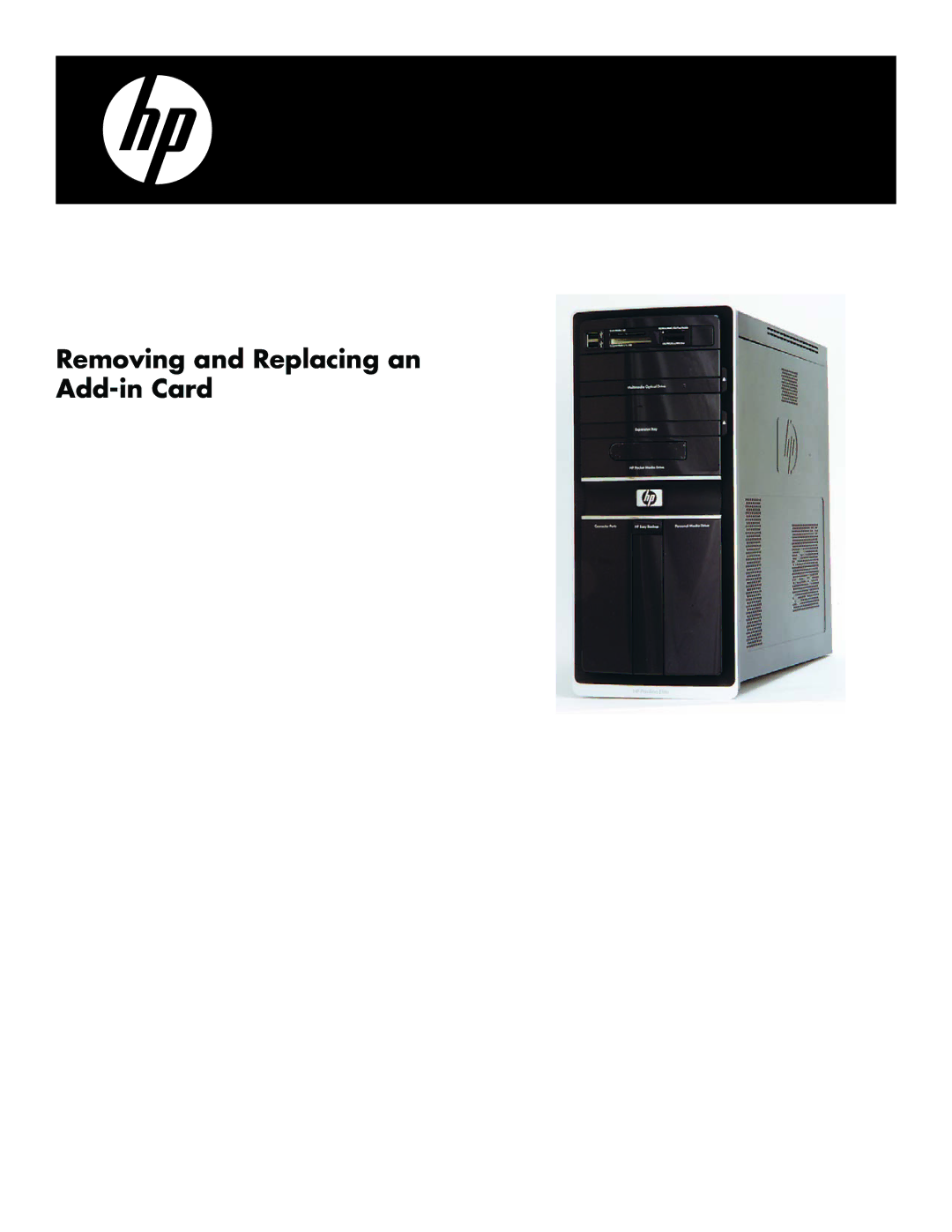

HP 200-5110 manual Removing and Replacing an Add-in Card

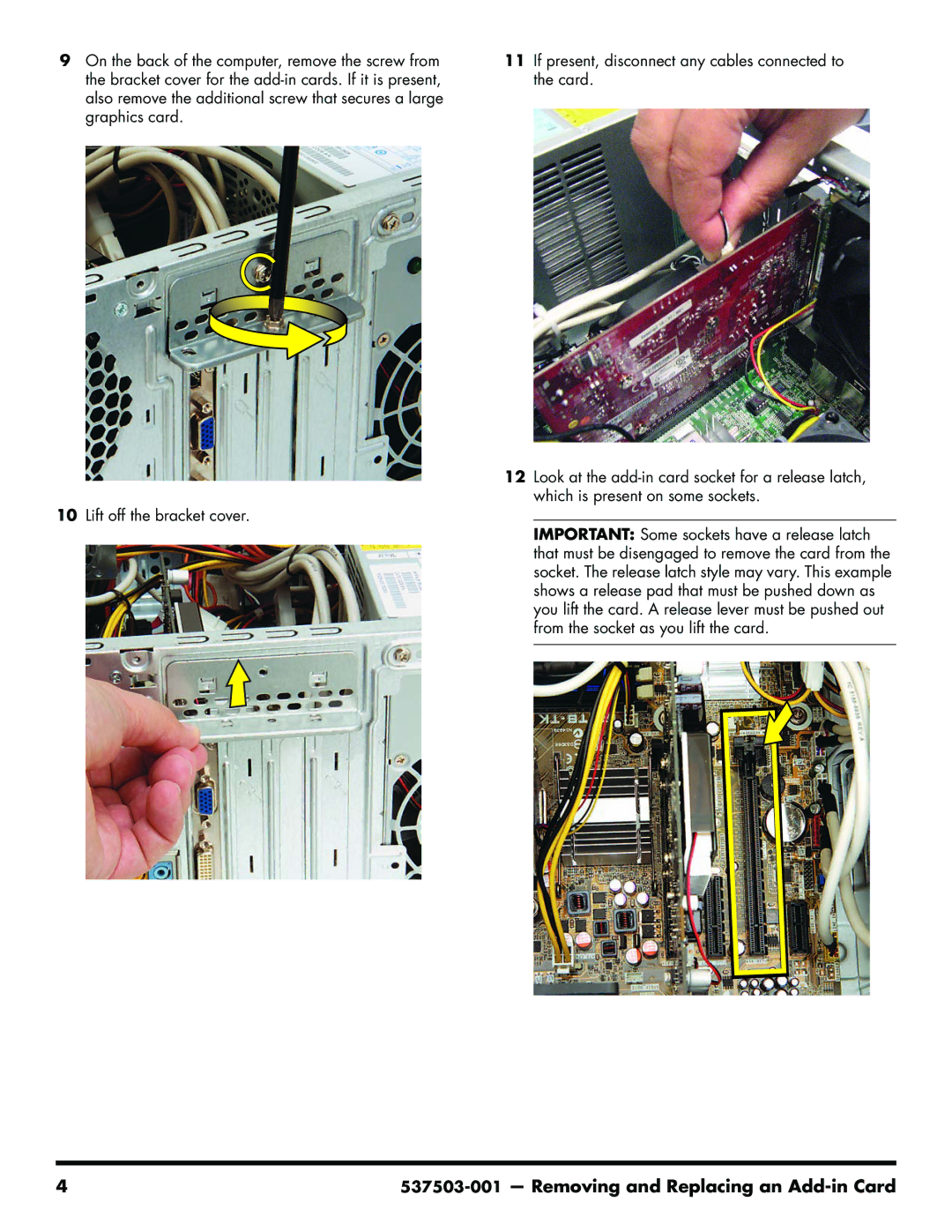

9On the back of the computer, remove the screw from the bracket cover for the add-in cards. If it is present, also remove the additional screw that secures a large graphics card.

10Lift off the bracket cover.

11If present, disconnect any cables connected to the card.

12Look at the add-in card socket for a release latch, which is present on some sockets.

IMPORTANT: Some sockets have a release latch that must be disengaged to remove the card from the socket. The release latch style may vary. This example shows a release pad that must be pushed down as you lift the card. A release lever must be pushed out from the socket as you lift the card.

4 537503-001— Removing and Replacing an Add-in Card
