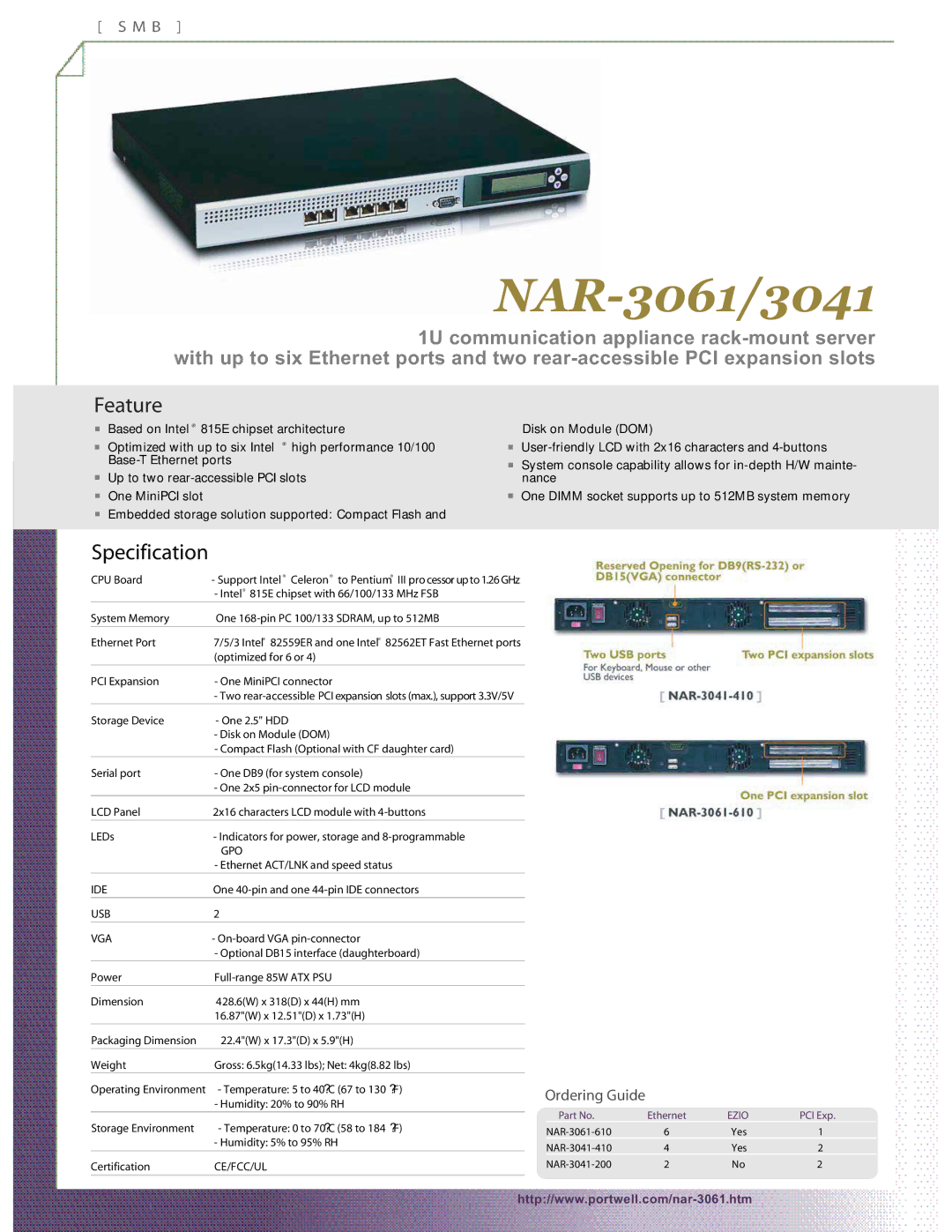

NAR-3061/3041

1U communication appliance rack-mount server with up to six Ethernet ports and two rear-accessible PCI expansion slots

Based on Intel ® 815E chipset architecture	Disk on Module (DOM)
Optimized with up to six Intel ® high performance 10/100	User-friendly LCD with 2x16 characters and 4-buttons
Base-T Ethernet ports	System console capability allows for in-depth H/W mainte-
Up to two rear-accessible PCI slots	nance
One MiniPCI slot	One DIMM socket supports up to 512MB system memory
Embedded storage solution supported: Compact Flash and

CPU Board	- Support Intel ® Celeron® to Pentium® III processor up to 1.26 GHz
	- Intel® 815E chipset with 66/100/133 MHz FSB
System Memory	One 168-pin PC 100/133 SDRAM, up to 512MB
Ethernet Port	7/5/3 Intel® 82559ER and one Intel® 82562ET Fast Ethernet ports
	(optimized for 6 or 4)
PCI Expansion	- One MiniPCI connector
	- Two rear-accessible PCI expansion slots (max.), support 3.3V/5V
Storage Device	- One 2.5" HDD
	- Disk on Module (DOM)
	- Compact Flash (Optional with CF daughter card)
Serial port	- One DB9 (for system console)
	- One 2x5 pin-connector for LCD module
LCD Panel	2x16 characters LCD module with 4-buttons
LEDs	- Indicators for power, storage and 8-programmable
	GPO
	- Ethernet ACT/LNK and speed status
IDE	One 40-pin and one 44-pin IDE connectors
USB	2
VGA	- On-board VGA pin-connector
	- Optional DB15 interface (daughterboard)
Power	Full-range 85W ATX PSU
Dimension	428.6(W) x 318(D) x 44(H) mm
	16.87"(W) x 12.51"(D) x 1.73"(H)
Packaging Dimension	22.4"(W) x 17.3"(D) x 5.9"(H)
Weight	Gross: 6.5kg(14.33 lbs); Net: 4kg(8.82 lbs)
Operating Environment	- Temperature: 5 to 40?C (67 to 130 ?F)
	- Humidity: 20% to 90% RH
Storage Environment	- Temperature: 0 to 70?C (58 to 184 ?F)

-Humidity: 5% to 95% RH

CertificationCE/FCC/UL
