Intel QME7342-CK Host Bus Interface Specifications, Physical Specifications, Tools and Utilities

d a t a s h e e t

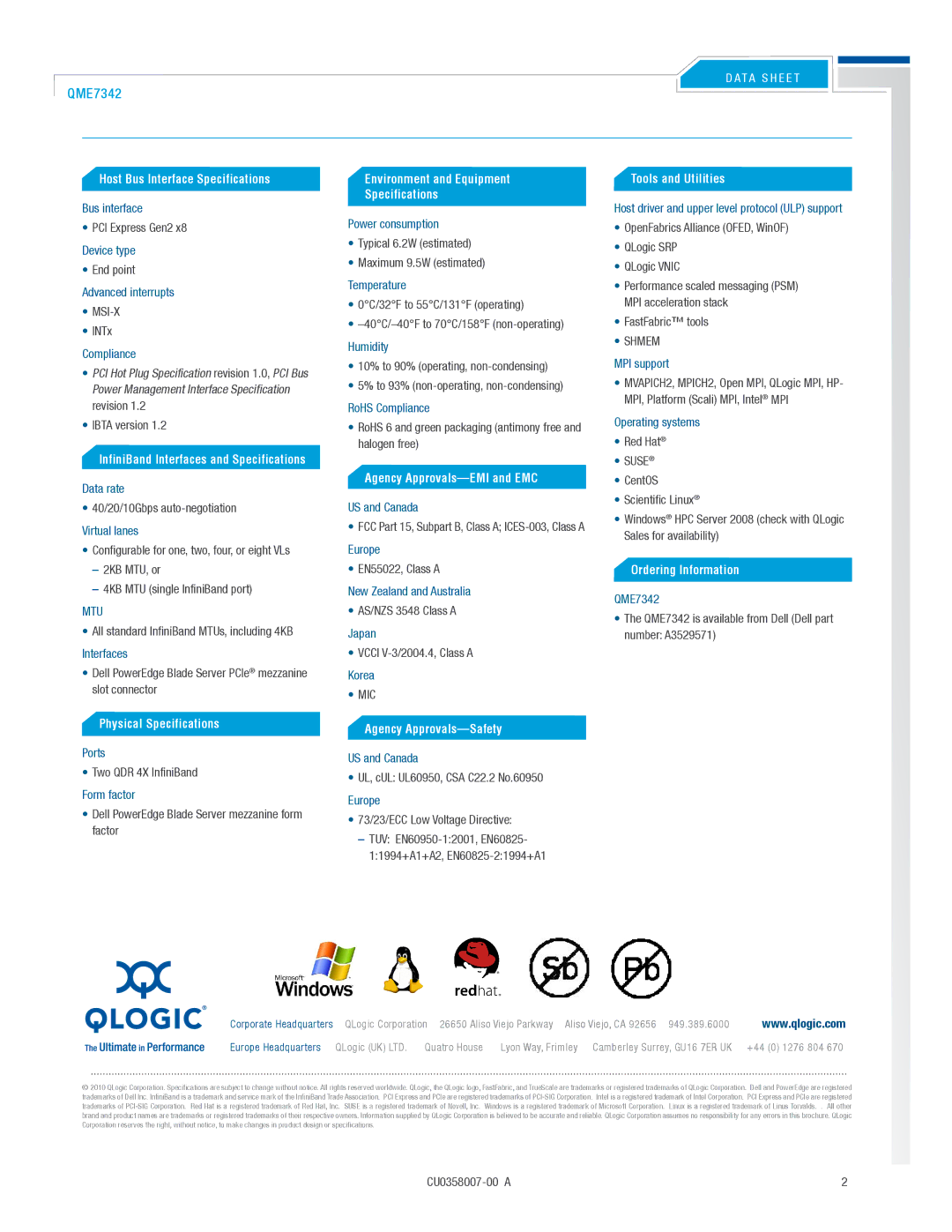

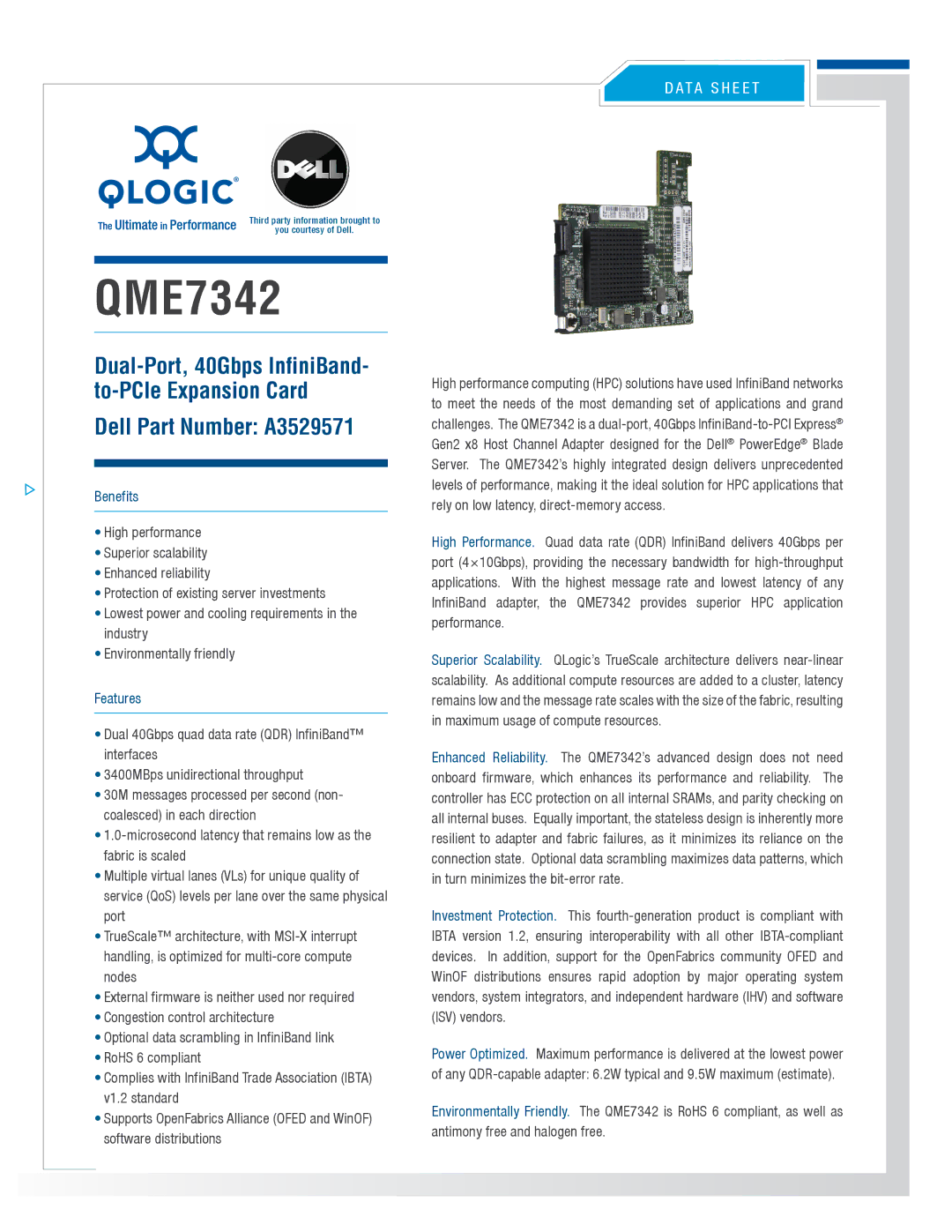

QME7342

Host Bus Interface Specifications

Bus interface

••PCI Express Gen2 x8 Device type

••End point Advanced interrupts

••MSI-X

••INTx Compliance

••PCI Hot Plug Specification revision 1.0, PCI Bus Power Management Interface Specification revision 1.2

••IBTA version 1.2

InfiniBand Interfaces and Specifications

Data rate

••40/20/10Gbps auto-negotiation Virtual lanes

••Configurable for one, two, four, or eight VLs

––2KB MTU, or

––4KB MTU (single InfiniBand port)

MTU

••All standard InfiniBand MTUs, including 4KB Interfaces

••Dell PowerEdge Blade Server PCIe® mezzanine slot connector

Physical Specifications

Ports

••Two QDR 4X InfiniBand Form factor

••Dell PowerEdge Blade Server mezzanine form factor

Environment and Equipment

Specifications

Power consumption

••Typical 6.2W (estimated)

••Maximum 9.5W (estimated) Temperature

••0°C/32°F to 55°C/131°F (operating)

••–40°C/–40°F to 70°C/158°F (non-operating) Humidity

••10% to 90% (operating, non-condensing)

••5% to 93% (non-operating, non-condensing) RoHS Compliance

••RoHS 6 and green packaging (antimony free and halogen free)

Agency Approvals—EMI and EMC

US and Canada

••FCC Part 15, Subpart B, Class A; ICES-003, Class A

Europe

••EN55022, Class A

New Zealand and Australia

••AS/NZS 3548 Class A

Japan

••VCCI V-3/2004.4, Class A

Korea

••MIC

Agency Approvals—Safety

US and Canada

••UL, cUL: UL60950, CSA C22.2 No.60950

Europe

••73/23/ECC Low Voltage Directive:

––TUV: EN60950-1:2001, EN60825-

1:1994+A1+A2, EN60825-2:1994+A1

Tools and Utilities

Host driver and upper level protocol (ULP) support

••OpenFabrics Alliance (OFED, WinOF)

••QLogic SRP

••QLogic VNIC

••Performance scaled messaging (PSM) MPI acceleration stack

••FastFabric™ tools

••SHMEM MPI support

••MVAPICH2, MPICH2, Open MPI, QLogic MPI, HP- MPI, Platform (Scali) MPI, Intel® MPI

Operating systems

••Red Hat®

••SUSE®

••CentOS

••Scientific Linux®

••Windows® HPC Server 2008 (check with QLogic Sales for availability)

Ordering Information

QME7342

••The QME7342 is available from Dell (Dell part number: A3529571)
