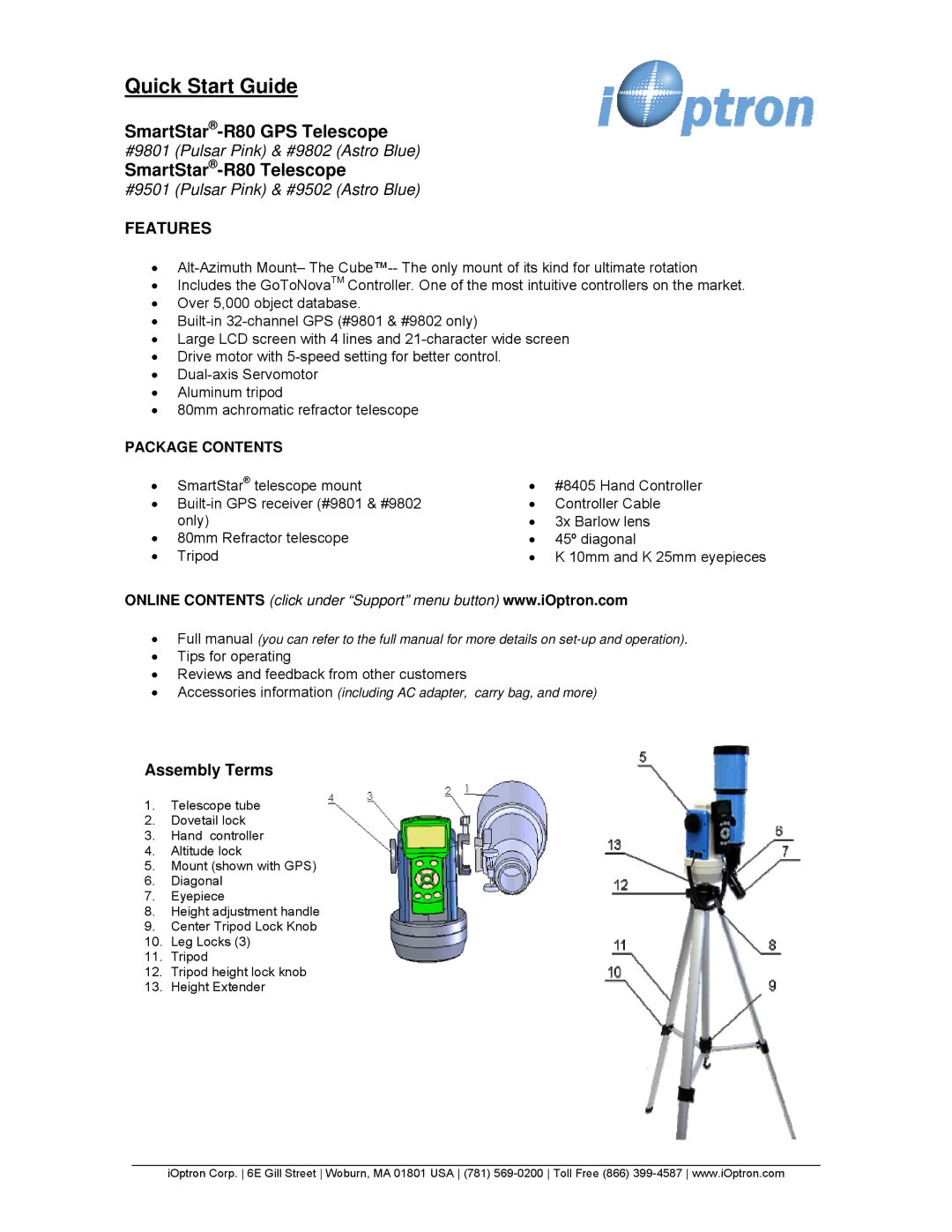

Quick Start Guide

SmartStar®-R80 GPS Telescope

#9801 (Pulsar Pink) & #9802 (Astro Blue)

SmartStar®-R80 Telescope

#9501 (Pulsar Pink) & #9502 (Astro Blue)

FEATURES

Alt-Azimuth Mount– The Cube™-- The only mount of its kind for ultimate rotation

Includes the GoToNovaTM Controller. One of the most intuitive controllers on the market.

Over 5,000 object database.

Built-in 32-channel GPS (#9801 & #9802 only)

Large LCD screen with 4 lines and 21-character wide screen

Drive motor with 5-speed setting for better control.

Dual-axis Servomotor

Aluminum tripod

80mm achromatic refractor telescope

PACKAGE CONTENTS

SmartStar® telescope mount

#8405 Hand Controller

Built-in GPS receiver (#9801 & #9802

Controller Cable

only)

3x Barlow lens

80mm Refractor telescope

45º diagonal

Tripod

K 10mm and K 25mm eyepieces

ONLINE CONTENTS (click under “Support” menu button) www.iOptron.com

Full manual (you can refer to the full manual for more details on set-up and operation).

Tips for operating

Reviews and feedback from other customers

Accessories information (including AC adapter, carry bag, and more)

Assembly Terms

1.Telescope tube

2.Dovetail lock

3.Hand controller

4.Altitude lock

5.Mount (shown with GPS)

6.Diagonal

7.Eyepiece

8.Height adjustment handle

9.Center Tripod Lock Knob

10.Leg Locks (3)

11.Tripod

12.Tripod height lock knob

13.Height Extender

iOptron Corp. 6E Gill Street Woburn, MA 01801 USA (781) 569-0200 Toll Free (866) 399-4587 www.iOptron.com

Page 1
