Ives 7226/26F installation instructions Installation Instructions, 3/4” Offset Top Pivot

Installation Instructions

7212, 7215/15F, 7222, 7226/26F, and 7227/27F

3/4” Offset Top Pivot

		Bearing leaf
Pin leaf		3/32” Allen wrench
Bearing		Set screw
leaf		Pin leaf
		1/4-20 tapped hole for
Left hand		pin removal (both ends)	Right hand
installation	Pivot	Pivot cap	installation
	pin
		5/32” Allen wrench

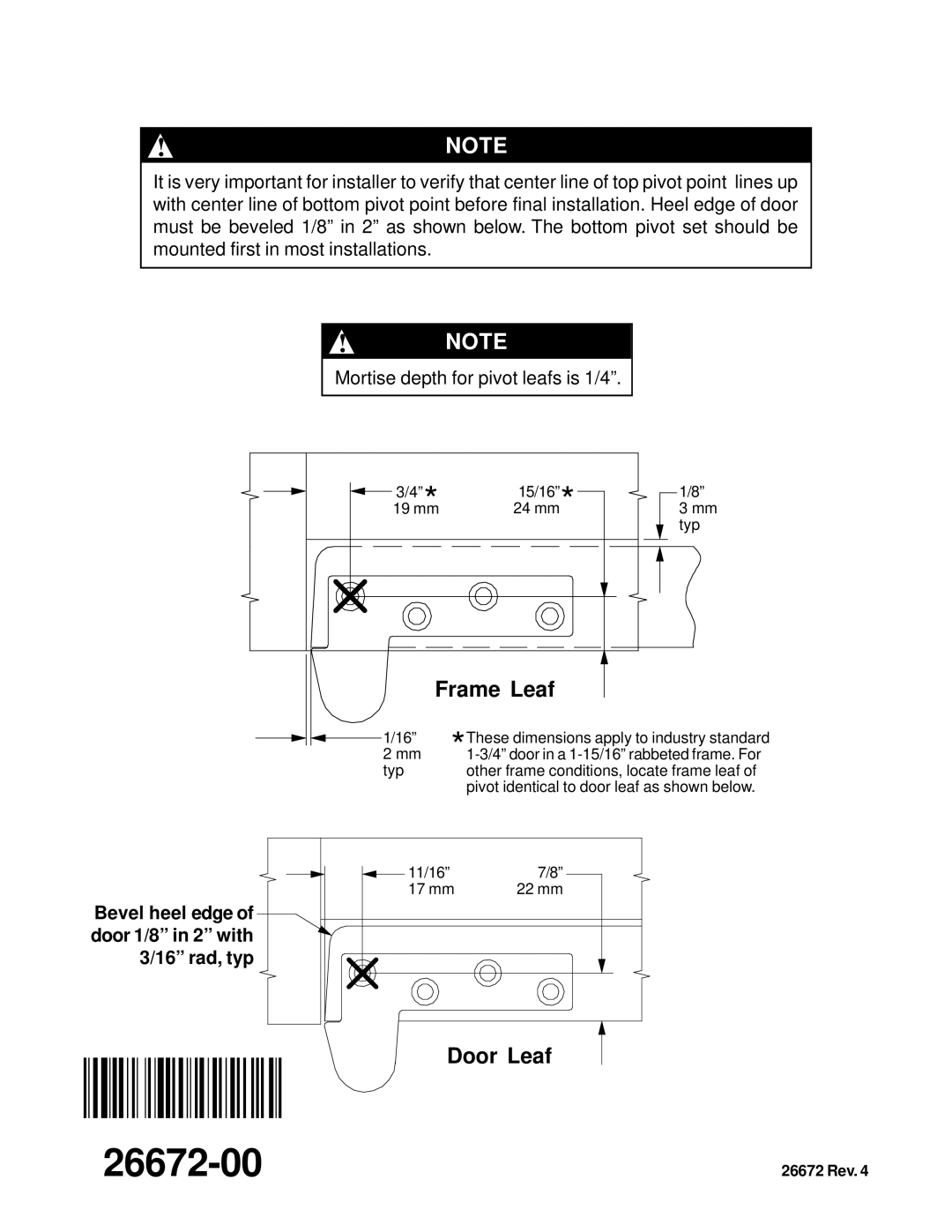

1.Prepare and mortise top of door and head jamb to receive pivot set. Determine pivot location using dimensions on reverse side. The pivots are non-handed. To determine hand of door and proper pivot position, see diagrams above.

2.Locate, drill, and tap 1/4-20 mounting holes for metal door or metal frame. Locate and drill pilot holes for #14 wood screws for wood door or wood frame. Install pivot leafs with 1/4-20 x 3/4” FHMS or #14 FHWS screws provided.

3.Loosen set screw in pin leaf with 3/32” Allen wrench provided and remove pivot pin.

4.Use 5/32” Allen wrench to remove pivot cap from door leaf, allowing for pivot pin re-insertion.

5.With door in open position (about 90° to jamb), carefully fit door onto bottom pivot at a slight angle. Tip door into vertical position, aligning top pivot leafs in door and jamb. With pivot leafs aligned, insert pivot pin into pivot set. Vertically align groove in pivot pin with set screw in pivot leaf. Tighten set screw securely with 3/32” Allen wrench. Re-install pivot cap.

6.To remove door from jamb: Remove pivot cap. Thread a 1/4-20 machine screw into end of pivot pin. Pull pivot pin out of pivots. Door can now be removed from opening.

!CAUTION

Improper pivot set installation can lead to personal injury or property damage. Follow all instructions carefully. For questions contact Technical Support at 1-888-371-7331.

26672 Rev. 4 © 2006 Ingersoll-Rand Company Limited
