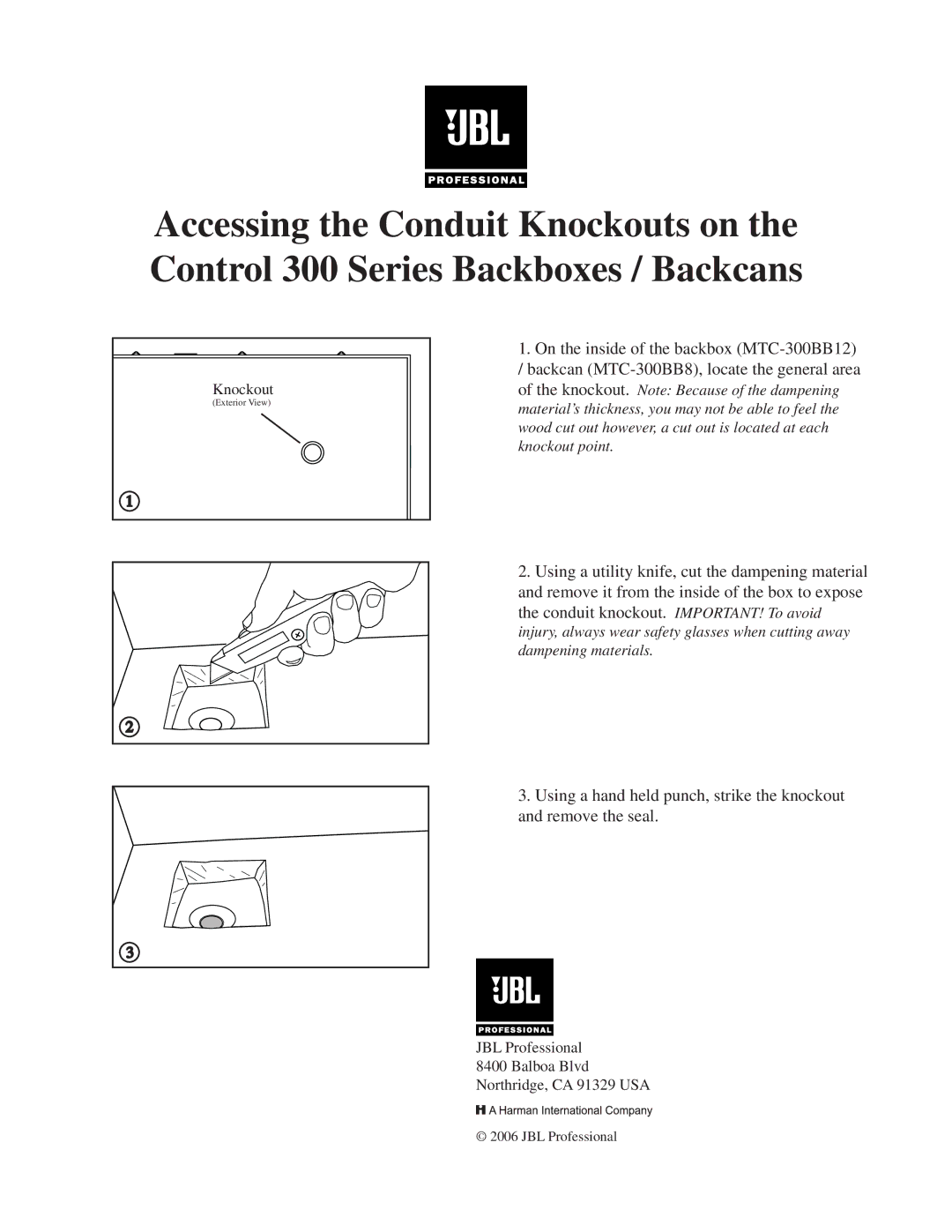

Accessing the Conduit Knockouts on the Control 300 Series Backboxes / Backcans

Knockout

(Exterior View)

1

2

3

1.On the inside of the backbox (MTC-300BB12) / backcan (MTC-300BB8), locate the general area of the knockout. Note: Because of the dampening material’s thickness, you may not be able to feel the wood cut out however, a cut out is located at each knockout point.

2.Using a utility knife, cut the dampening material and remove it from the inside of the box to expose the conduit knockout. IMPORTANT! To avoid injury, always wear safety glasses when cutting away dampening materials.

3.Using a hand held punch, strike the knockout and remove the seal.

JBL Professional

8400 Balboa Blvd

Northridge, CA 91329 USA

© 2006 JBL Professional

Page 1
