••THE WOODWORKERS

CHOICE FOR

PRECISION TOOLS

HEAVY-DUTY B3NCH™

10" BANDSAW

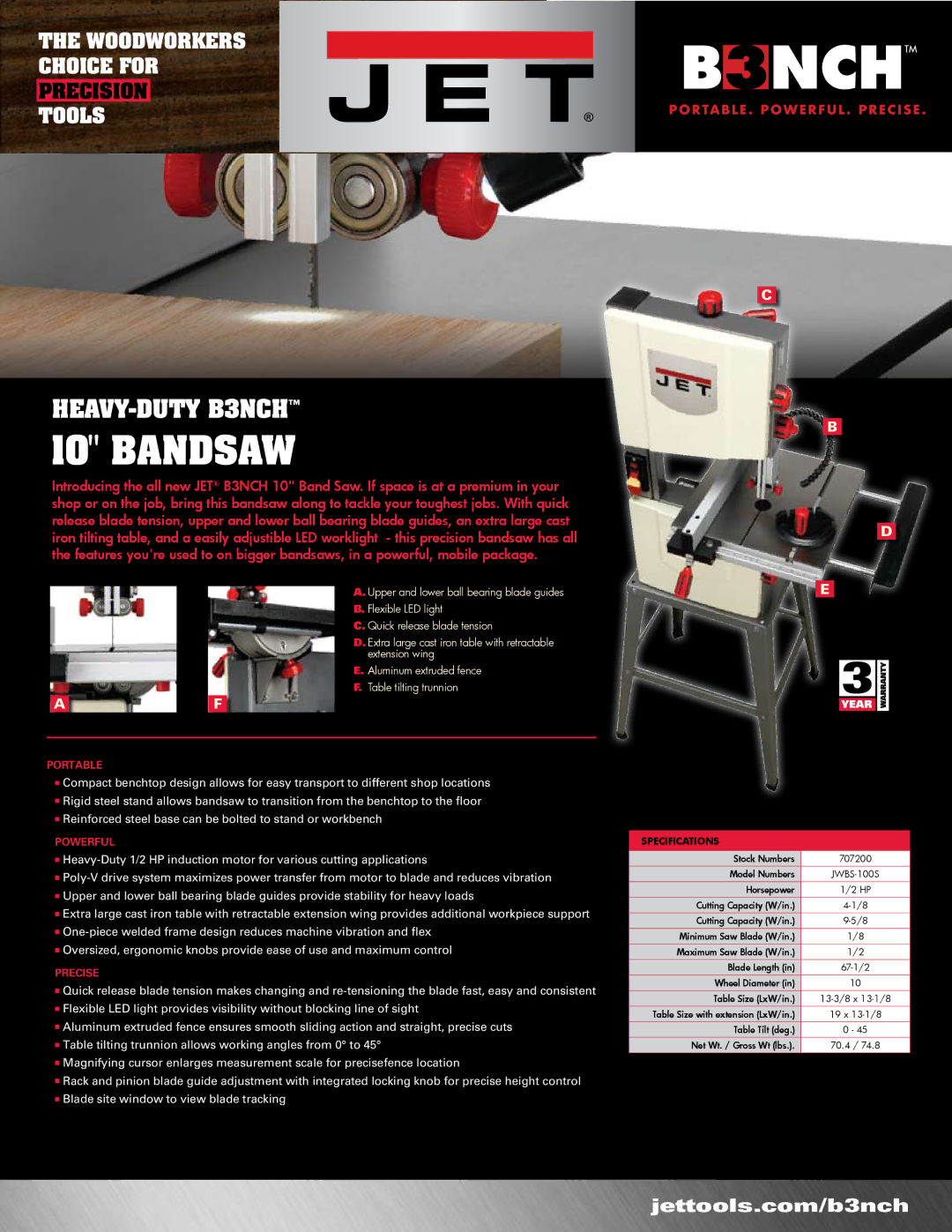

Introducing the all new JET® B3NCH 10" Band Saw. If space is at a premium in your shop or on the job, bring this bandsaw along to tackle your toughest jobs. With quick release blade tension, upper and lower ball bearing blade guides, an extra large cast iron tilting table, and a easily adjustible LED worklight - this precision bandsaw has all the features you're used to on bigger bandsaws, in a powerful, mobile package.

a. Upper and lower ball bearing blade guides b. Flexible LED light

c. Quick release blade tension

d. Extra large cast iron table with retractable extension wing

e. Aluminum extruded fence f. Table tilting trunnion

AF

Features

PORTABLE

•• ■ Compact benchtop design allows for easy transport to different shop locations

•• ■ Rigid steel stand allows bandsaw to transition from the benchtop to the floor

•• ■ Reinforced steel base can be bolted to stand or workbench

•• POWERFUL

•• ■ Heavy-Duty 1/2 HP induction motor for various cutting applications

•• ■ Poly-V drive system maximizes power transfer from motor to blade and reduces vibration

•• ■ Upper and lower ball bearing blade guides provide stability for heavy loads

•• ■ Extra large cast iron table with retractable extension wing provides additional workpiece support

•• ■ One-piece welded frame design reduces machine vibration and flex

•• ■ Oversized, ergonomic knobs provide ease of use and maximum control

•• PRECISE

•• ■ Quick release blade tension makes changing and re-tensioning the blade fast, easy and consistent

•• ■ Flexible LED light provides visibility without blocking line of sight

•• ■ Aluminum extruded fence ensures smooth sliding action and straight, precise cuts

•• ■ Table tilting trunnion allows working angles from 0° to 45°

•• ■ Magnifying cursor enlarges measurement scale for precisefence location

•• ■ Rack and pinion blade guide adjustment with integrated locking knob for precise height control

•• ■ Blade site window to view blade tracking

B

D

E

Specifications

Stock Numbers

707200

Model Numbers

JWBS-100S

Horsepower

1/2 HP

Cutting Capacity (W/in.)

4-1/8

Cutting Capacity (W/in.)

9-5/8

Minimum Saw Blade (W/in.)

1/8

Maximum Saw Blade (W/in.)

1/2

Blade Length (in)

67-1/2

Wheel Diameter (in)

10

Table Size (LxW/in.)

13-3/8 x 13-1/8

Table Size with extension (LxW/in.)

19 x 13-1/8

Table Tilt (deg.)

0 - 45

Net Wt. / Gross Wt (lbs.).

70.4 / 74.8

jettools.com/b3nch

Page 1 Page 1
Page 1
Image 1
Jet Tools JWBS-100S specifications Bandsaw, Features, Specifications
Page 1 Page 1

JWBS-100S specifications

The Jet Tools JWBS-100S is an exceptional band saw designed for woodworking enthusiasts and professionals alike. Renowned for its reliability and performance, this machine brings precision and efficiency to any workshop. Its robust build and thoughtful features make it a preferred choice when tackling intricate cuts and large materials.

One of the standout features of the JWBS-100S is its powerful 1 HP motor. This motor provides ample torque and the ability to cut through various wood types with ease. The saw is equipped with a 14-inch throat capacity and a resounding 6 inches of vertical cutting height, allowing users to work with substantial pieces of stock without compromising on performance. This versatility makes it suitable for both delicate intricate patterns and more substantial projects.

Another key characteristic is the integrated fence system. The fence is made of high-quality aluminum, ensuring durability and straightforward adjustments. It allows for precise cuts, making repetitive slicing a breeze. Additionally, the 3/4-inch blade width allows for tighter curves and intricate cuts, adding to the machine's adaptability for different woodworking tasks.

The JWBS-100S also showcases innovative technologies that enhance its functionality. It features a dual ball-bearing blade guides system which helps maintain blade stability and accuracy during operation. This feature is crucial in ensuring that each cut is straight and true, reducing the risk of drift and enhancing overall efficiency.

The machine’s adjustable table is another highlight, designed to facilitate angled cuts with angles ranging from 0 to 45 degrees. This feature offers woodworkers the flexibility to achieve precise bevels required for specialized projects. The table itself is made from cast iron, providing a sturdy surface that absorbs vibrations, further enhancing cut quality.

Furthermore, the JWBS-100S prioritizes user safety with its integrated safety switch and blade tension adjustment, minimizing the risk of accidents during operation. The dust port collection system is also a smart inclusion, helping maintain a clean workspace by capturing debris generated during use.

In summary, the Jet Tools JWBS-100S boasts a powerful motor, impressive cutting capacity, and smart features designed to enhance both precision and safety. Emphasizing innovative design, this band saw is a perfect addition for those looking to elevate their woodworking experience. Whether you're a seasoned professional or a hobbyist, the JWBS-100S delivers the performance and reliability necessary for any woodworking task.
