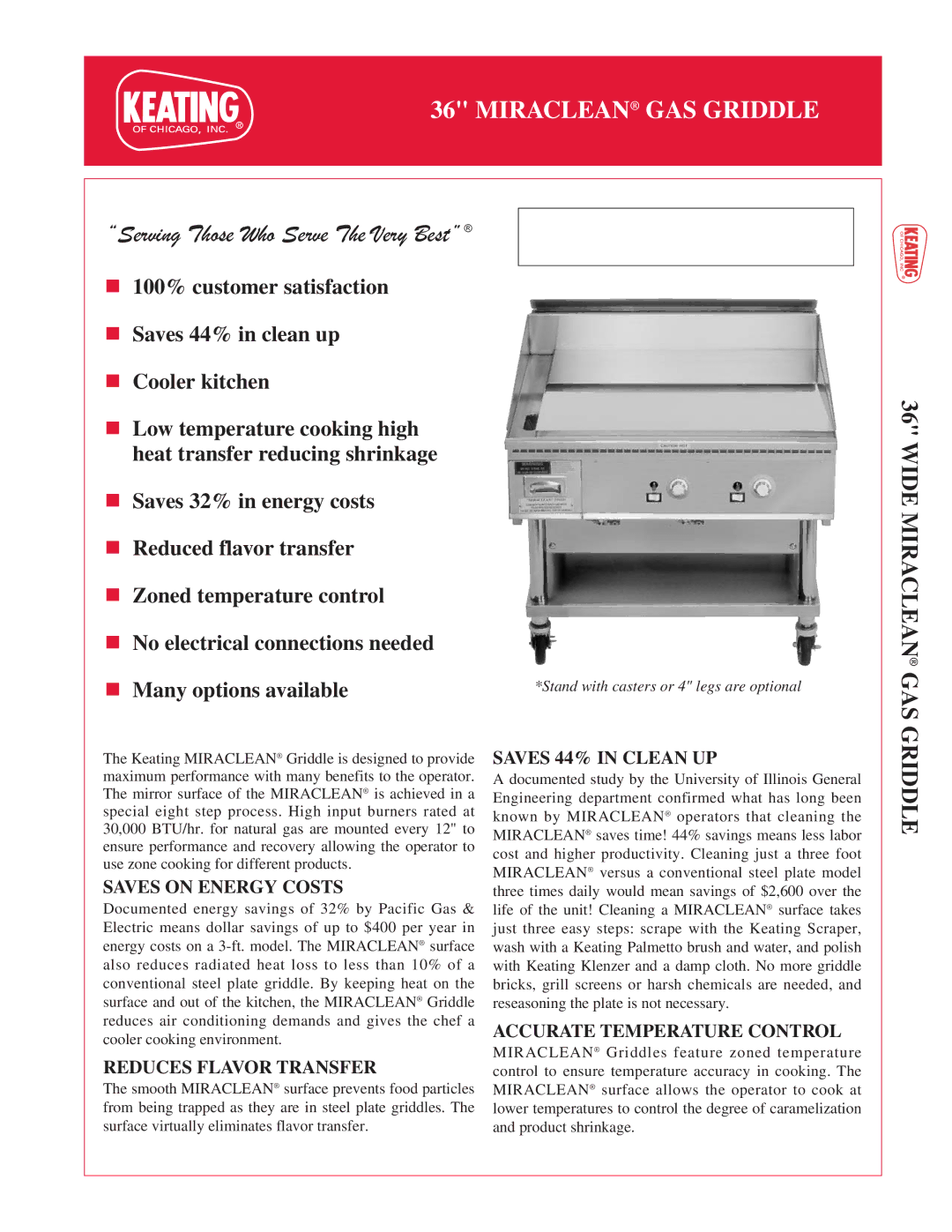

36" MIRACLEAN® GAS GRIDDLE

MIRACLEAN® GAS GRIDDLE

DESCRIPTION

The Keating MIRACLEAN® Griddle consists of a griddle plate, having a drain trough and perimeter installed in a cabinet equipped with gas burners. An automatic temperature control mechanism and 100% safety shut off are all arranged and designed for the proper cooking of food on a griddle surface.

SPECIFICATIONS

Griddle Plate to be made of high carbon, 3/4" steel plate upon which a trivalent chromium surface has been applied in a special eight step process to ensure a mirror smooth surface. The MIRACLEAN® plate has an emissivity rating of .078.

Drain Trough 36×24 and 36×30 to be 3" on the left side and 2" across the front with a 4" x 11/2" drain in the left front (36×30FT and 36×36FT have front trough only). The drain is located above a large stainless steel grease drawer with baffles and a rear handle. The perimeter and grease trough are 14 gauge stainless steel. The perimeter is 41/2" high across the back with sides angling from 41/2" in the rear to 1/2" at the front. Sides and rear perimeter have an exterior trim of 22 gauge stainless steel.

Gas Burners to be “H” shaped cast iron construction, atmospheric type with one burner for every 12" of linear plate surface. Each pilot is manually ignited with a (piezo) igniter.

Cabinet to have an inner liner of 20 gauge aluminized steel. Outer cabinet 14 gauge stainless steel sides, 18 gauge stainless steel back and 16 gauge aluminized steel bottom. A stainless steel flue deflector is shipped with every unit.

Thermostat to be millivolt sealed contacts, close range, hydraulic type, accurate to ± 5° from 250° to 550°F. Application of this thermostat is patented by Keating.

100% Safety Shut Off to be millivolt, thermocouple type with 100% safety shut off.

Standard Accessories to include Keating razor scraper with a packet of 10 blades, 4" wide spatula, long-handle palmetto brush, egg turner, can of Keating Klenzer.

Electrical Connections are not required.

Gas Requirements to install are 3/4" male NPT connection and 4" and 10" water column pressures natural and LP gas. Supply pressure must be 7” (natural gas) and 11” (LP) water column.

Special Order Options may include 4" legs, stand, stand with shelf and casters, cutting board: stainless, richlite, plate shelf, thermostat knob guard, belly bar, extra thermostats, streaked surface, custom griddle styles and configurations, extra burner, security package.

WIDE



BTU/hr.

BTU/hr.





(A)

(B)



Working

(C)

Ship

Model

NG

LP

Burners

T-Stats

Width

Depth

Height

Height

Plate Size

Wt.























36×24

60,000

60,000

2

2

361/2"

245/8"

18"

12"

33"W×18"D

290 lbs.























36×30

60,000

60,000

2

2

361/2"

305/8"

18"

12"

33"W×24"D

350 lbs.























36×30 FT

90,000

90,000

3

2

361/2"

305/8"

18"

12"

36"W×24"D

380 lbs.























36×36 FT

109,500

109,500

3

2

361/2"

365/8"

18"

12"

36"W×30"D

455 lbs.

36"

C

GAS IN

4

B

C

2

3 1/8

A

GAS IN

16 5/8

18

12

4

(2) 550° THERMOSTATS

NOT FOR OUTDOOR INSTALLATION

NOT FOR DOMESTIC INSTALLATION

As continuous product improvement occurs, specifications may be changed without notice.

KEATING OF CHICAGO, INC. Toll Free 1-800-KEATING www.keatingofchicago.com

Printed in U.S.A.

36Mrcln2007

5/07

Page 2
