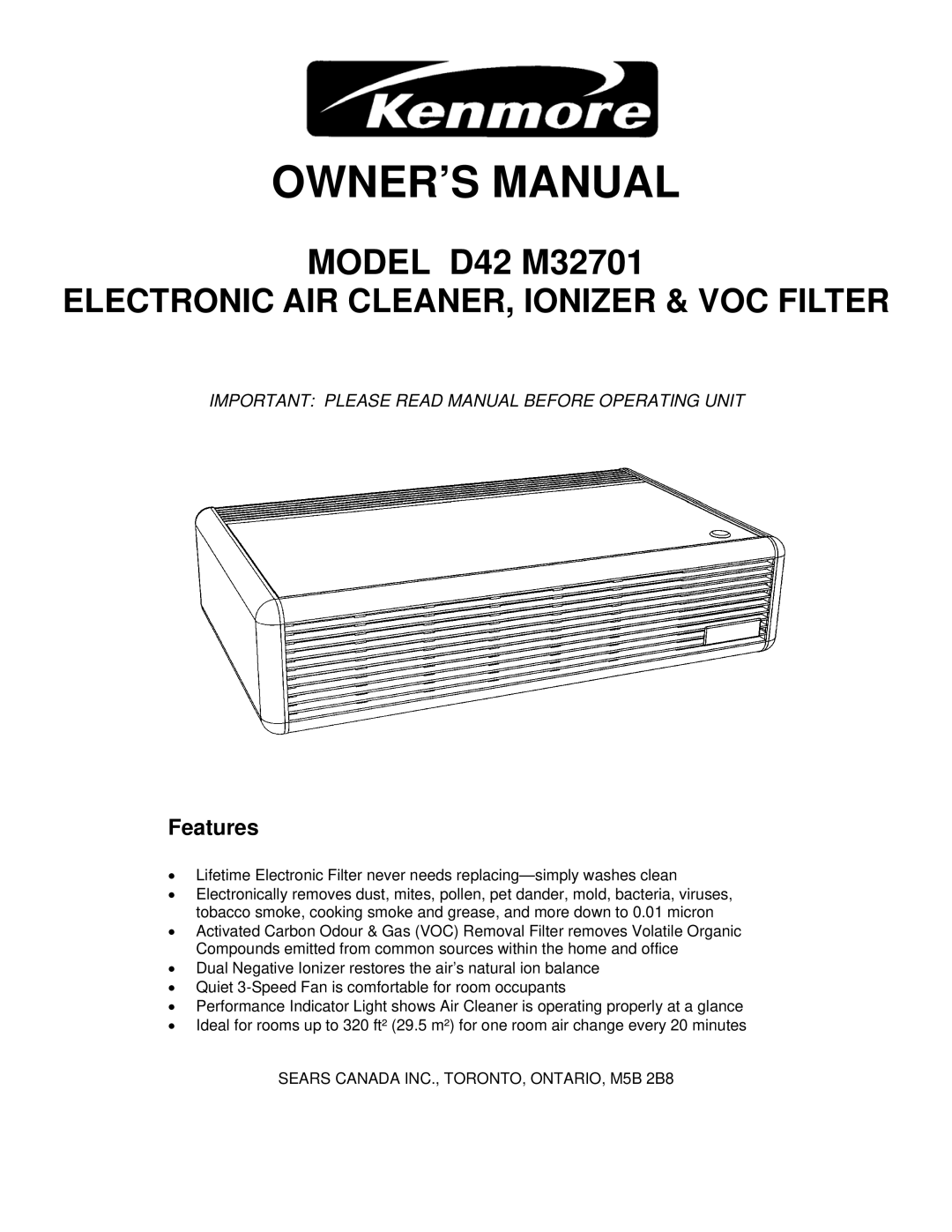

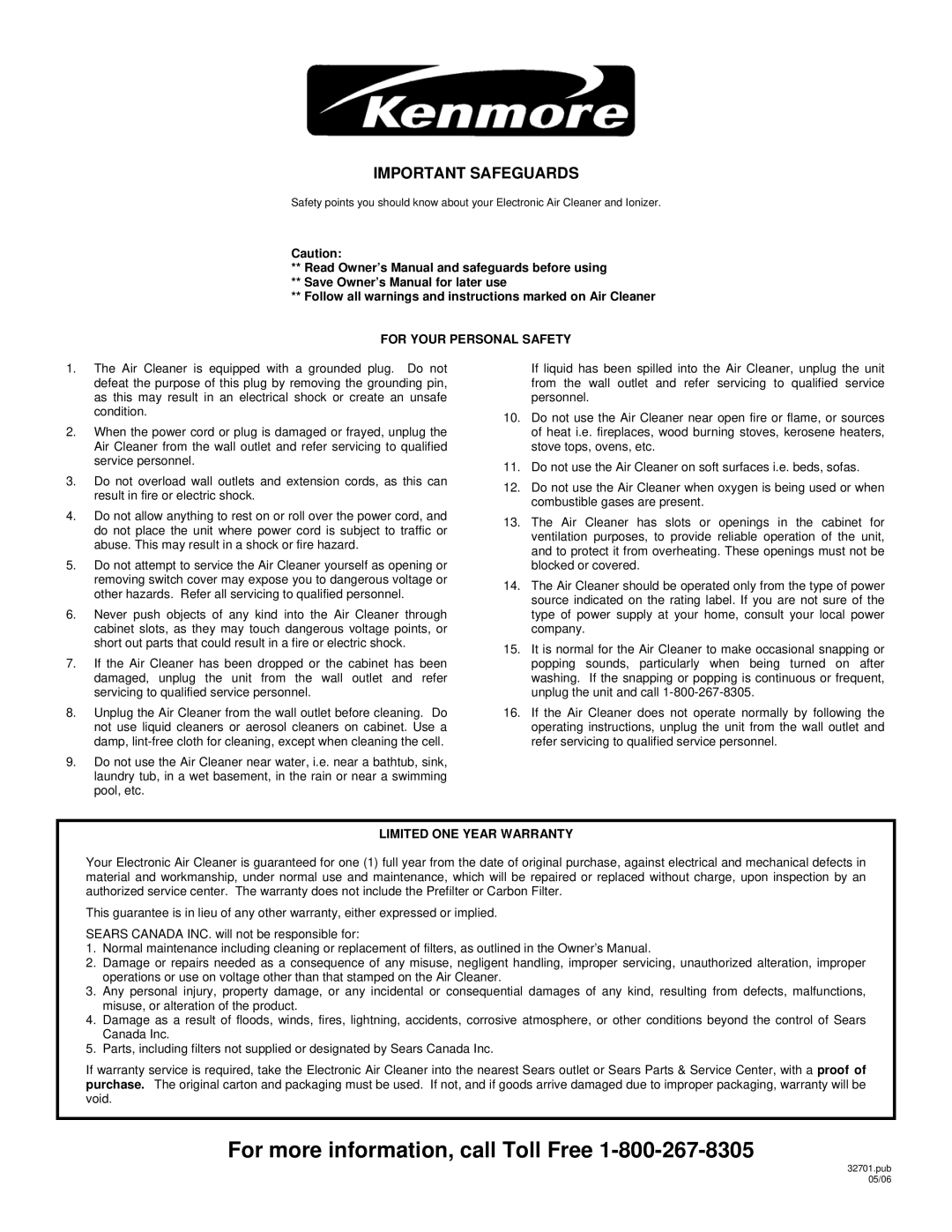

Kenmore D42 M32701 owner manual Cleaning Instructions, Troubleshooting Chart, Technical Data

CLEANING INSTRUCTIONS

The prefilter and collecting cell must be washed on a regular basis for the Air Cleaner to function at its peak efficiency. The frequency of cleaning will vary from one environment to another, therefore the cell should be checked monthly to determine cleaning schedule. On average, the cell should be washed every 2-3 months.

COLLECTING CELL

1.Turn Air Cleaner OFF. Remove the cell from the Air Cleaner. Slide the prefilter and carbon filter out of the retaining brackets before cleaning.

2.Rinse prefilter and cell, and spray completely with DAX Detergent (or non-chlorine, non-corrosive, non-abrasive, non-ammonia liquid household detergent). Let stand for 5 minutes. Rinse well with hot water (120°F / 49°C maximum). Repeat process 3 times.

3.If dirt remains, let cell soak in a solution of DAX Detergent and hot water for 30 minutes.

4.For drying, place the cell on a 45° angle on one end, with the arrow pointing sideways, and let stand for 10-24 hours. A hair dryer may be used to speed up drying time. Make sure the cell is completely dry before reinserting back into Air Cleaner. The arrow on the cell must point toward the fan blower.

5.If arcing or snapping occurs or the lights do not come on when the cell is placed back in the unit and turned on, then remove the cell and allow to dry longer.

ODOUR & GAS (VOC) REMOVAL FILTER

Activated Carbon

Odour & Gas (VOC)

Filter

Collecting Cell

Prefilter

1.The Activated Carbon Odour & Gas (VOC) Removal Filter must be replaced at regular intervals if odour removal is desired (approximately every 3-6 months).

ODOUR REMOVAL FILTERS ARE NOT WASHABLE.

CABINET

1.Turn Air Cleaner OFF.

2.A soft, damp, lint-free cloth may be used to remove dirt and fingerprints from painted surfaces, grills and end panels.

NEVER USE AN ABRASIVE CLEANER ON THE CABINET.

WARNING

•DO NOT WASH COLLECTING CELL IN DISHWASHER.

•Never use any object to clean between the cell plates as this may cause damage to the plates or ionizing wires.

•Never place the cell in an oven to dry.

•The edges of the cell may be sharp — handle with care.

DAX Detergent, No. 32921, and the Activated Carbon Odour & Gas (VOC) Removal Filter, No. 32711, are available from your Sears outlet.

TROUBLESHOOTING CHART

PROBLEM			CAUSE
Fan does not operate	•	Unit not plugged in
Both Operation Lights off	•	System switch not ON
	• Fan switch not in proper position
	• Lid not securely closed
Green Performance	•	Negative Ion switch not in ON
Light on		position
Red Ion Light off
Fan operating	•	Cell wet from washing
Both Operation Lights off	•	Short in cell (see below)
Cell arcing excessively	•	Cell wet from washing
	•	Cell plate(s) bent
	• Cell dirty		or	large lint	ball/hair
	•	caught in cell
		Broken ionizing wire(s)
	• Prefilter is		in	backward	(black
		mesh should be visible on outside)
Air Cleaner vibrating	•	Unit not sitting on flat surface
excessively
Both Operation Lights on	•	Cell is in backward (Arrow on cell
Cell not collecting dirt		should point towards fan blower)

The two Operation Lights, located behind the front grill, are also used as the high voltage fault indicator. If the fan is operating, but the lights do not come on, then there is a problem in the high voltage circuit. To determine what the problem is, turn the Air Cleaner OFF and remove the collecting cell. Close the lid and turn the Air Cleaner back ON. If the lights come back on, the problem lies in the cell. Check the cell for wetness from washing or look for a broken ionizing wire(s) or bent cell plate(s).

If the lights do not come on, the problem is with the power board or Operation Light(s). If you are unable to correct any of the above problems, call 1-800-267-8305.

TECHNICAL DATA

Dimensions
Width		20.0 in	50.8 cm
Depth		12.0 in	30.5 cm
Height		5.0 in	12.7 cm
Weight		16.0 lbs	7.3 kg
Input Voltage	120 V	60 Hz
Power Consumption	85 Watts
(maximum)
Air Flow
High		130 cfm	221 m³/hr
Medium		80 cfm	136 m³/hr
Low		60 cfm	102 m³/hr
Cell Output Voltage	6500 VDC @ < 1 mA
Collecting Cell		756 in²	4877 cm²
Surface
Negative Ionizer	-5000 VDC @ <.1 mA
Negative Ion Output	2 x 327.7 K/in³		2 x 20 K/cm³
Ideal for rooms up to:
(1 room air change		320 ft²	29.5 m²
every 20 minutes for
maximum room size)
