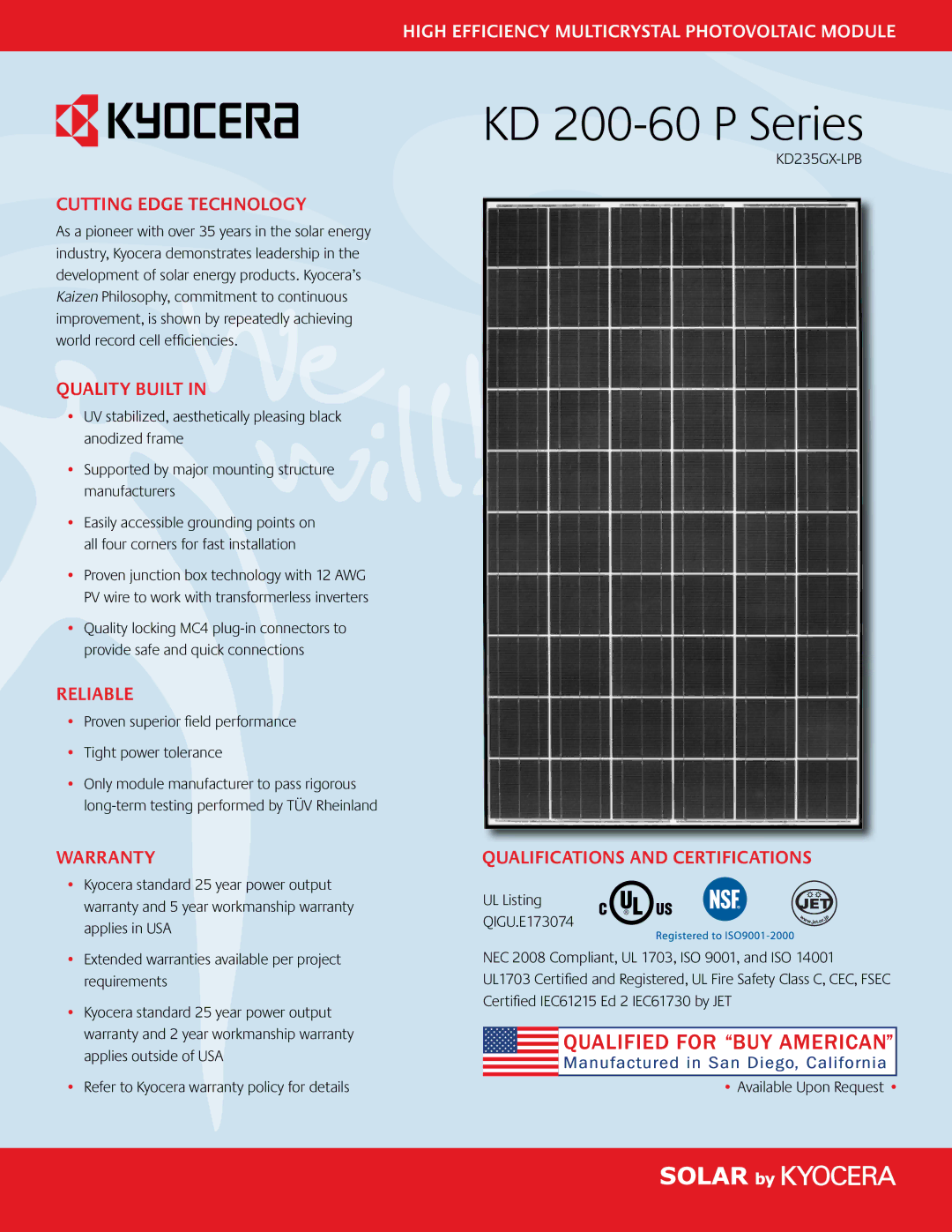

Kyocera KD 200-60 P SERIES KD 200-60 P Series, Electrical SPECIFICATIONS, Module Characteristics

KD 200-60 P Series

Electrical SPECIFICATIONS

Standard Test Conditions (STC)

STC = 1000 W/M2 irradiance, 25oC module temperature, AM 1.5 spectrum*

KD235GX-LPB

Pmp	235	W
Vmp	29.8	V
Imp	7.89	A
Voc	36.9	V
Isc	8.55	A
Ptolerance	+5/-3	%

Nominal Operating Cell Temperature Conditions (NOCT)

NOCT = 800 W/M2 irradiance, 20oC ambient temperature, AM 1.5 spectrum*

T	45	oC
NOCT
Pmax	169	W
Vmp	26.8	V
Imp	6.31	A
Voc	33.7	V
Isc	6.92	A
PTC	212.6	W

Temperature Coefficients

P	-0.46	%/oC
max
V	-0.52	%/oC
mp
I	0.0065	%/oC
mp
V	-0.36	%/oC
oc
I	0.060	%/oC
sc

Module Characteristics

Dimensions:65.43in/38.98in/1.8in

length/width/height(1662mm/990mm/46mm)

Weight: 46.3lbs (21.0kg)

PACKAGING SPECIFICATIONS

Modules per pallet:					20
Pallets per 53’ container:					36
Pallet box dimensions:					66.54in/39.76in/47.24in
length/width/height					(1690mm/1010mm/1200mm)
Pallet box weight:					1050 lbs (480kg)
				4.45in			1.8in
				113mm			46mm
		11.06in 281mm	3.23in 82mm			(IP65)
			37.8in 960mm		46.9in 1190mm
		21.65in 550mm
					STABILIZER BAR
	65.43in 1662mm
		21.65in 550mm
					STABILIZER BAR

11.06in 281mm
38.98in	.49in
990mm	12.5mm
	.47in
	12mm

Operating	-40 to +90	oC
Temp
System Design
Series Fuse Rating		15 A
Maximum DC System Voltage (UL)		600 V
Hailstone Impact	1in (25mm) @ 51mph (23m/s)

11.06in 281mm

1.18in

30mm

Long Side

1.8in 46mm

Short Side

.41in

10.3mm 1.8in46mm

.79in

20mm

*Subject to simulator measurement uncertainty of +/- 3%.

KYOCERA reserves the right to modify these specifications without notice.

NEC 2008 Compliant	WARNING: Read the instruction
	manual in its entirety prior to
UL 1703 Listed	handling, installing & operat-
Certified IEC61215 Ed2 IEC61730 by JET	ing Kyocera Solar modules.
011312

Expanded View of Grounding Holes Frame Cross Section Diagrams

MOUNTING HOLES DRAINAGE HOLES	GROUND SYMBOL
.35in (9mm)	.35in (9mm)

Our Valued Partner

KYOCERA Solar, Inc. 800-223-9580 800-523-2329 fax www.kyocerasolar.com
