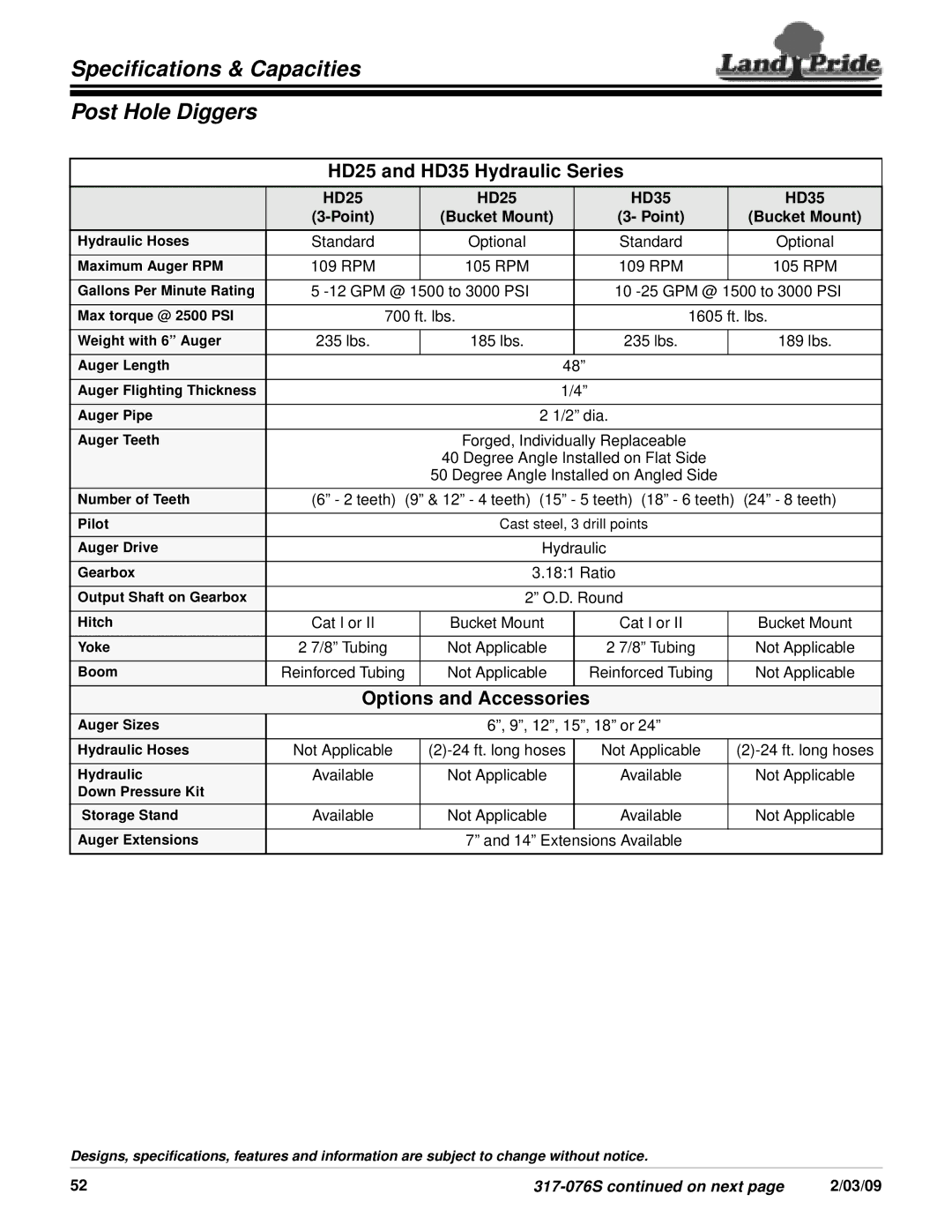

Post Hole DiggersSpecifications & Capacities
Designs, specifications, features and information are subject to change without notice.

HD25 and HD35 Hydraulic Series

HD25
(3-Point) HD25
(Bucket Mount) HD35
(3- Point) HD35
(Bucket Mount)
Hydraulic Hoses Standard Optional Standard Optional
Maximum Auger RPM 109 RPM 105 RPM 109 RPM 105 RPM
Gallons Per Minute Rating 5 -12 GPM @ 1500 to 3000 PSI 10-25 GPM @ 1500 to 3000 PSI
Max torque @ 2500 PSI 700 ft. lbs. 1605 ft. lbs.
Weight with 6” Auger 235 lbs. 185 lbs. 235 lbs. 189 lbs.
Auger Length 48”
Auger Flighting Thickness 1/4”
Auger Pipe 2 1/2” dia.
Auger Teeth Forged,Individually Replaceable
40 Degree Angle Installed on Flat Side
50 Degree Angle Installed on Angled Side
Number of Teeth (6”- 2 teeth) (9” & 12” - 4 teeth) (15”- 5 teeth) (18”- 6 teeth) (24” - 8 teeth)
Pilot Cast steel, 3 drill points
Auger Drive Hydraulic
Gearbox 3.18:1Ratio
Output Shaft on Gearbox 2” O.D.Round
Hitch Cat I or II BucketMount Cat I or II BucketMount
Yoke 27/8” Tubing Not Applicable 2 7/8” Tubing Not Applicable
Boom ReinforcedTubing Not Applicable ReinforcedTubing NotApplicable

Options and Accessories

Auger Sizes 6”, 9”, 12”, 15”, 18” or 24”
Hydraulic Hoses Not Applicable (2)-24 ft. long hoses NotApplicable (2)-24ft. long hoses
Hydraulic
Down Pressure Kit Available NotApplicable Available Not Applicable
Storage Stand Available NotApplicable Available Not Applicable
Auger Extensions 7” and 14” Extensions Available
317-076S continued on next page 2/03/09
