INTELLIRACK

Description

The IntelliRack is a powerful multiplexing device that allows a Liebert UPS of any size to communicate with a virtually unlimited number of computers.

The IntelliRack unit has five Intellislots for MultiPort 4 cards that can be connected to as many as four computers each. An IntelliRack unit with five MultiPort 4 cards installed will notify up to 20 computers of power failure and low battery conditions.

A built-in bridging capability permits daisy- chaining IntelliRack units together, accommodat- ing a virtually unlimited number of computers— limited only by the capacity of the UPS.

FRONT VIEW

							+	—
			Bridging				Power Inputs:
					Transmit	Receive	12 V DC 1.5A			IntelliRack
EMERSON		OUT	IN	AC Low
		UPS		Fail Battery (TX)		(RX)
Network Power
							Power		Redundant	Power
Screw	Connect				UPS
holes	to UPS				warning				Power connectors
for rack		Connect			indicators
mounting		to other			(red)				and indicators
brackets		IntelliRack							(green)
		units

Features and Benefits

•1U Rack Space

•19" or 23" Rack Mounting Brackets

•Dual Power Supply Inputs

•Universal Power Supply

•Modular and Scalable

•Dedicated Communications from UPS to Each Computer

•LED Notification

•Multiple Operating System Support

•Daisy-Chain Modules

•Integration with MultiLink Automated Shutdown Software

•Unlimited Number of Computer Systems

•Connects to all Liebert UPS systems

When a power failure or low battery arises in the UPS, the IntelliRack sends notifications to all systems connected to the IntelliRack. One example of a connected system is a network of computers running Liebert’s MultiLink™ shutdown software.

For other applications, contact your local Liebert representative or call 1-800-222-5877.

BACK VIEW

			MultiPort4
4	3	2	1

Slots 2-5 for	Slot 1
additional cards	(shown with
(shown with covers)	MultiPort 4
	card installed)

Specifications

Power Requirements	12VDC ±10% of nominal;
(2 inputs)	50/60 Hz, 1.5A, 18VA
Dimensions	16 x 9 x 1.66
W x D x H, in. (mm)	(406.4 x 228.6 x 42.2)
Weight	9.9 lbs. (4.5 kg)
Mounting	19" or 23" rack mount or 23" desktop
Ambient Operating	32ºF to 104ºF (0ºC to 40ºC)
Environment	0% RH to 95% RH (non-condensing)
Agency Listings
UL	None
CSA	None
CE	None
FCC Compliance	None
Communication Ports (Quantity)
DB9 (1)	To UPS; uses adapters (included)
RJ45 (2)	Bridges multiple IntelliRacks together;
	uses RJ45 cables (included)
Intellislots (5)	Hot-swappable ports

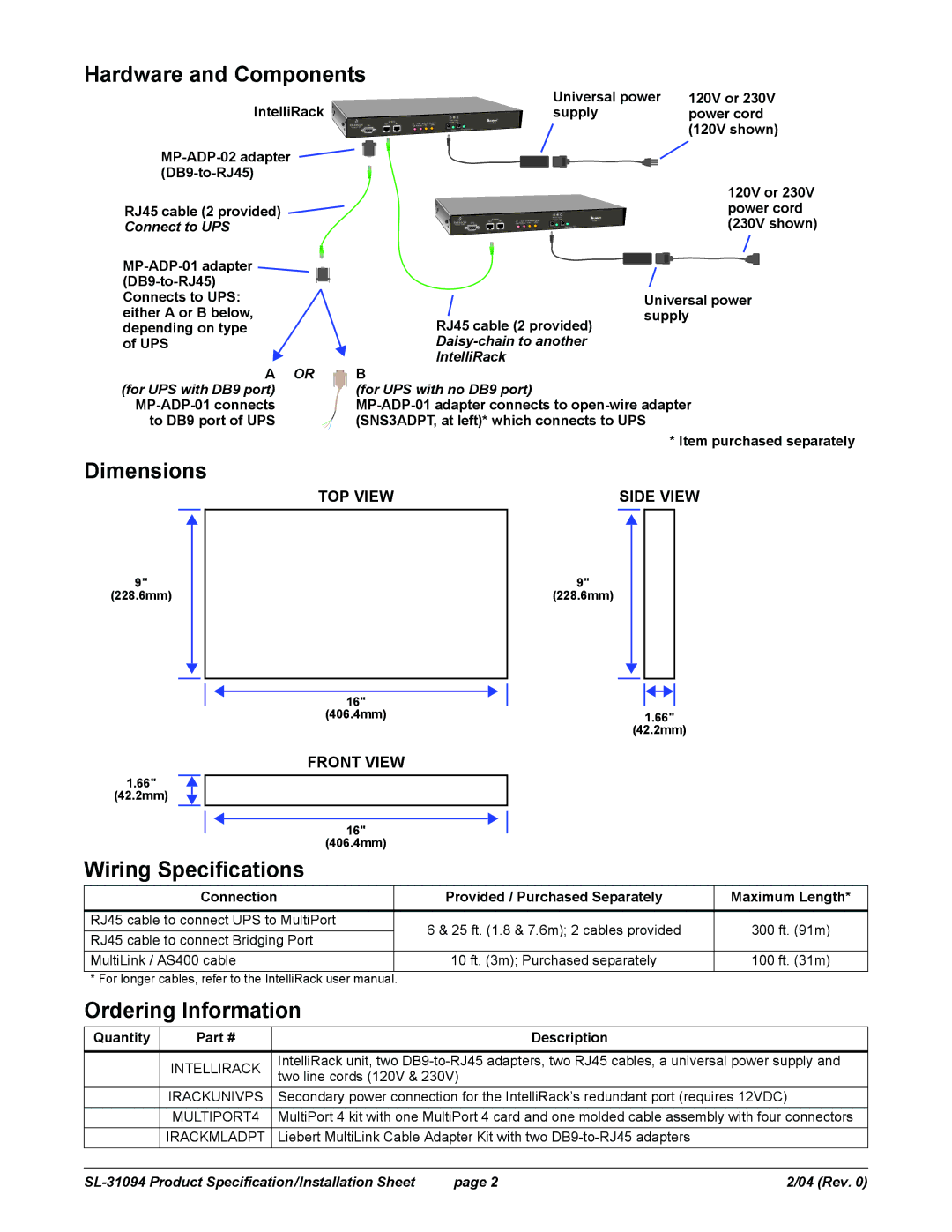

SL-31094 Product Specification/Installation Sheet page 1 2/04 (Rev. 0)
