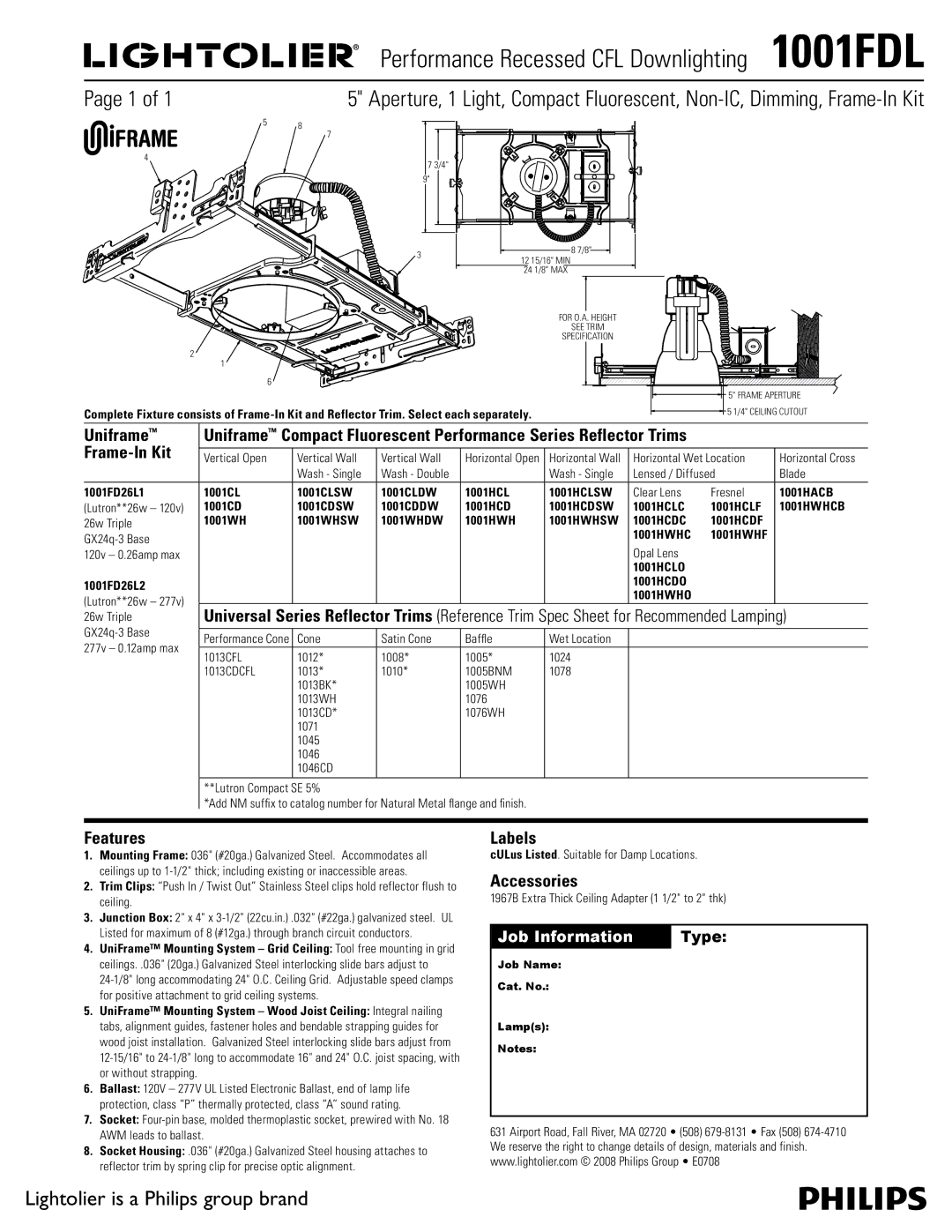

Performance Recessed CFL Downlighting  1001FDL































































































































































Page 1 of 1































5" Aperture, 1 Light, Compact Fluorescent, Non-IC, Dimming, Frame-In Kit

5 8

7

4

7 3/4" 9"







3



8 7/8"













12 15/16" MIN





























24 1/8" MAX

















FOR O.A. HEIGHT

















SEE TRIM

















SPECIFICATION









2

















1

















6





























5" FRAME APERTURE

Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.





5 1/4" CEILING CUTOUT

Uniframe

UniframeCompact Fluorescent Performance Series Reflector Trims





Frame-In Kit

Vertical Open

Vertical Wall

Vertical Wall

Horizontal Open

Horizontal Wall

Horizontal Wet Location

Horizontal Cross





Wash - Single

Wash - Double



Wash - Single

Lensed / Diffused

Blade

1001FD26L1

1001CL

1001CLSW

1001CLDW

1001HCL

1001HCLSW

Clear Lens

Fresnel

1001HACB

(Lutron**26w – 120v)

1001CD

1001CDSW

1001CDDW

1001HCD

1001HCDSW

1001HCLC

1001HCLF

1001HWHCB

26w Triple

1001WH

1001WHSW

1001WHDW

1001HWH

1001HWHSW

1001HCDC

1001HCDF



GX24q-3 Base











1001HWHC

1001HWHF













Opal Lens





120v – 0.26amp max



























1001HCLO





1001FD26L2











1001HCDO















1001HWHO





(Lutron**26w – 277v)















Universal Series Reflector Trims (Reference Trim Spec Sheet for Recommended Lamping)

26w Triple

GX24q-3 Base

Performance Cone

Cone

Satin Cone

Baffle

Wet Location







277v – 0.12amp max







1013CFL

1012*

1008*

1005*

1024

















1013CDCFL

1013*

1010*

1005BNM

1078











1013BK*



1005WH













1013WH



1076













1013CD*



1076WH













1071

















1045

















1046

















1046CD















**Lutron Compact SE 5%















*Add NM suffix to catalog number for Natural Metal flange and finish.









Features

1.Mounting Frame: 036" (#20ga.) Galvanized Steel. Accommodates all ceilings up to 1-1/2" thick; including existing or inaccessible areas.

2.Trim Clips: “Push In / Twist Out” Stainless Steel clips hold reflector flush to ceiling.

3.Junction Box: 2" x 4" x 3-1/2" (22cu.in.) .032" (#22ga.) galvanized steel. UL Listed for maximum of 8 (#12ga.) through branch circuit conductors.

4.UniFrame™ Mounting System – Grid Ceiling: Tool free mounting in grid ceilings. .036" (20ga.) Galvanized Steel interlocking slide bars adjust to

24-1/8" long accommodating 24" O.C. Ceiling Grid. Adjustable speed clamps for positive attachment to grid ceiling systems.

5.UniFrame™ Mounting System – Wood Joist Ceiling: Integral nailing tabs, alignment guides, fastener holes and bendable strapping guides for wood joist installation. Galvanized Steel interlocking slide bars adjust from 12-15/16" to 24-1/8" long to accommodate 16" and 24" O.C. joist spacing, with or without strapping.

6.Ballast: 120V – 277V UL Listed Electronic Ballast, end of lamp life protection, class “P” thermally protected, class “A” sound rating.

7.Socket: Four-pin base, molded thermoplastic socket, prewired with No. 18 AWM leads to ballast.

8.Socket Housing: .036" (#20ga.) Galvanized Steel housing attaches to reflector trim by spring clip for precise optic alignment.

Lightolier is a Philips group brand

Labels

cULus Listed. Suitable for Damp Locations.

Accessories

1967B Extra Thick Ceiling Adapter (1 1/2" to 2" thk)

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • E0708
