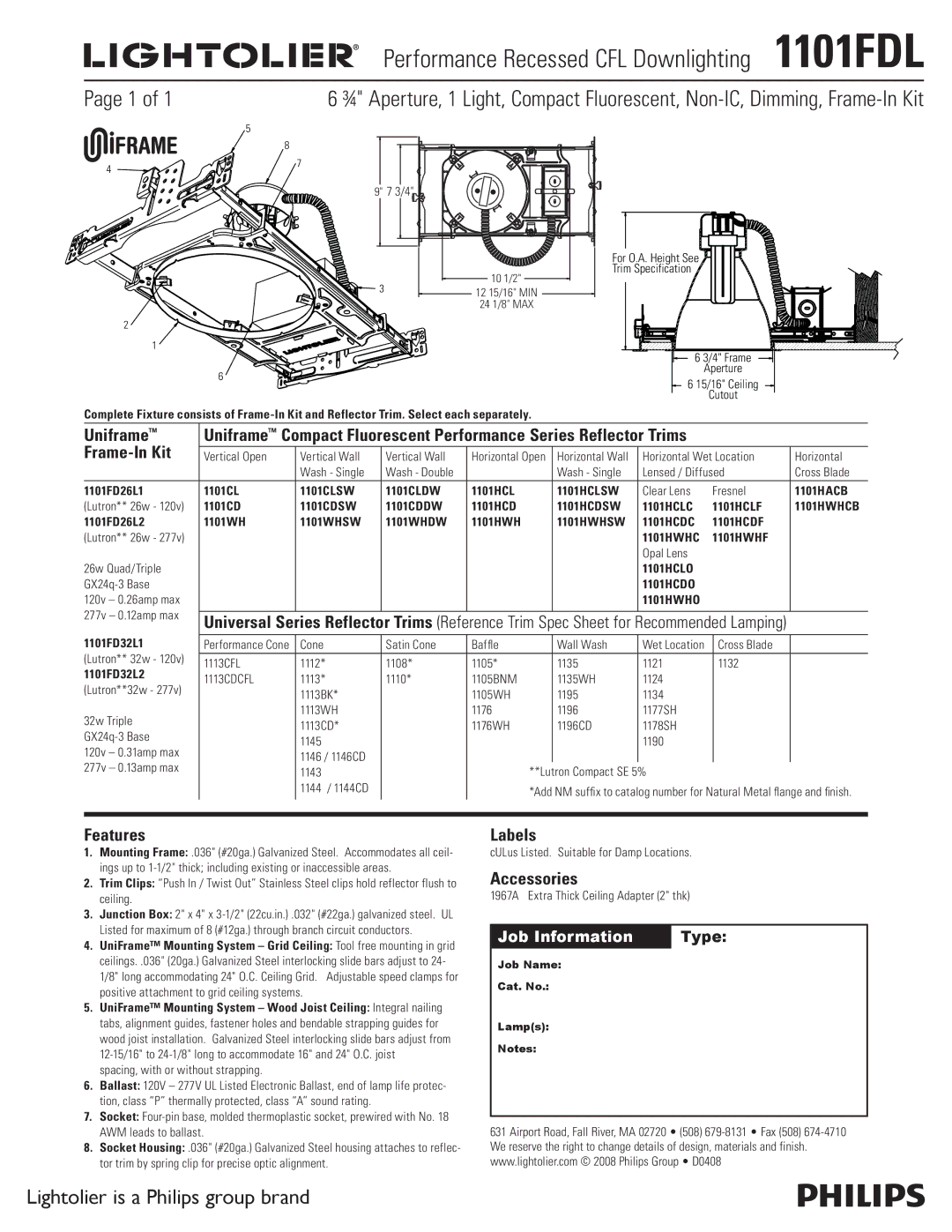

Performance Recessed CFL Downlighting  1101FDL

Page 1 of 1



6 ¾" Aperture, 1 Light, Compact Fluorescent, Non-IC, Dimming, Frame-In Kit



5

















8















4



7



































9" 7 3/4"





















For O.A. Height See













10 1/2"

Trim Specification











3















12 15/16" MIN

















24 1/8" MAX









2

















1











6 3/4" Frame



















6









Aperture













6 15/16" Ceiling































Cutout



Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.









Uniframe

UniframeCompact Fluorescent Performance Series Reflector Trims





Frame-In Kit

Vertical Open

Vertical Wall

Vertical Wall

Horizontal Open

Horizontal Wall

Horizontal Wet Location

Horizontal





Wash - Single

Wash - Double



Wash - Single

Lensed / Diffused

Cross Blade

1101FD26L1

1101CL

1101CLSW

1101CLDW

1101HCL

1101HCLSW

Clear Lens

Fresnel

1101HACB

(Lutron** 26w - 120v)

1101CD

1101CDSW

1101CDDW

1101HCD

1101HCDSW

1101HCLC

1101HCLF

1101HWHCB

1101FD26L2

1101WH

1101WHSW

1101WHDW

1101HWH

1101HWHSW

1101HCDC

1101HCDF



(Lutron** 26w - 277v)











1101HWHC

1101HWHF















Opal Lens





26w Quad/Triple











1101HCLO





GX24q-3 Base











1101HCDO





120v – 0.26amp max











1101HWHO





277v – 0.12amp max

Universal Series Reflector Trims (Reference Trim Spec Sheet for Recommended Lamping)







1101FD32L1

Performance Cone

Cone

Satin Cone

Baffle

Wall Wash

Wet Location

Cross Blade



(Lutron** 32w - 120v)

1113CFL

1112*

1108*

1105*

1135

1121

1132



1101FD32L2



1113CDCFL

1113*

1110*

1105BNM

1135WH

1124





(Lutron**32w - 277v)







1113BK*



1105WH

1195

1134















32w Triple



1113WH



1176

1196

1177SH







1113CD*



1176WH

1196CD

1178SH





GX24q-3 Base











1145







1190





120v – 0.31amp max















1146 / 1146CD













277v – 0.13amp max

















1143



**Lutron Compact SE 5%



















1144 / 1144CD



*Add NM suffix to catalog number for Natural Metal flange and finish.









Features

1.Mounting Frame: .036" (#20ga.) Galvanized Steel. Accommodates all ceil- ings up to 1-1/2" thick; including existing or inaccessible areas.

2.Trim Clips: “Push In / Twist Out” Stainless Steel clips hold reflector flush to ceiling.

3.Junction Box: 2" x 4" x 3-1/2" (22cu.in.) .032" (#22ga.) galvanized steel. UL Listed for maximum of 8 (#12ga.) through branch circuit conductors.

4.UniFrame™ Mounting System – Grid Ceiling: Tool free mounting in grid ceilings. .036" (20ga.) Galvanized Steel interlocking slide bars adjust to 24- 1/8" long accommodating 24" O.C. Ceiling Grid. Adjustable speed clamps for positive attachment to grid ceiling systems.

5.UniFrame™ Mounting System – Wood Joist Ceiling: Integral nailing tabs, alignment guides, fastener holes and bendable strapping guides for wood joist installation. Galvanized Steel interlocking slide bars adjust from 12-15/16" to 24-1/8" long to accommodate 16" and 24" O.C. joist

spacing, with or without strapping.

6.Ballast: 120V – 277V UL Listed Electronic Ballast, end of lamp life protec- tion, class “P” thermally protected, class “A” sound rating.

7.Socket: Four-pin base, molded thermoplastic socket, prewired with No. 18 AWM leads to ballast.

8.Socket Housing: .036" (#20ga.) Galvanized Steel housing attaches to reflec- tor trim by spring clip for precise optic alignment.

Lightolier is a Philips group brand

Labels

cULus Listed. Suitable for Damp Locations.

Accessories

1967A Extra Thick Ceiling Adapter (2" thk)

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • D0408

Page 1
Image 1
Lightolier 1101FDL manual Lightolier is a Philips group brand

1101FDL specifications

The Lightolier 1101FDL is a remarkable lighting fixture renowned for its versatility and energy efficiency. Designed primarily for commercial and residential applications, this fixture stands out due to its sleek design and advanced features. It combines aesthetics with functionality, making it a popular choice among architects and interior designers.

One of the primary features of the Lightolier 1101FDL is its compatibility with fluorescent lamps, specifically the compact fluorescent light (CFL) technology. This allows it to deliver bright, diffused lighting while maintaining lower energy consumption compared to traditional incandescent bulbs. The fixture supports up to 26 watts, providing a powerful, energy-efficient lighting solution that contributes to reduced electricity bills and diminished environmental impact.

The Lightolier 1101FDL incorporates a sophisticated electronic ballast that enhances energy savings by regulating the power supply to the lamp. This technology not only maintains consistent light output but also reduces flickering, providing a stable and comfortable lighting experience. The electronic ballast's quiet operation is another significant benefit, ensuring that it doesn't interfere with the ambient environment during use.

In terms of design, the Lightolier 1101FDL features a low-profile, minimalistic look that can seamlessly blend into various decor styles. The fixture is available in multiple finishes, allowing for customization to suit different spaces. Its compact size makes it suitable for tight areas, such as hallways and smaller rooms, without compromising on brightness or effectiveness.

Another key characteristic of the Lightolier 1101FDL is its ease of installation and maintenance. The fixture is designed for quick mounting and lamp replacement, reducing labor time during setup and maintenance processes. This feature makes it particularly appealing for contractors and facility managers looking for efficient lighting solutions.

The Lightolier 1101FDL also emphasizes sustainability, as it is compatible with energy-efficient CFLs that have a longer lifespan compared to traditional bulbs. This results in less waste and fewer replacements over time, aligning with modern ecological standards.

Overall, the Lightolier 1101FDL is a cutting-edge lighting fixture that combines energy efficiency, modern design, and user-friendly features. Its innovative technologies make it a robust option for both commercial and residential environments, promising reliable performance while minimizing energy consumption. Whether for offices, retail spaces, or home settings, the Lightolier 1101FDL continues to illuminate spaces effectively and elegantly.
