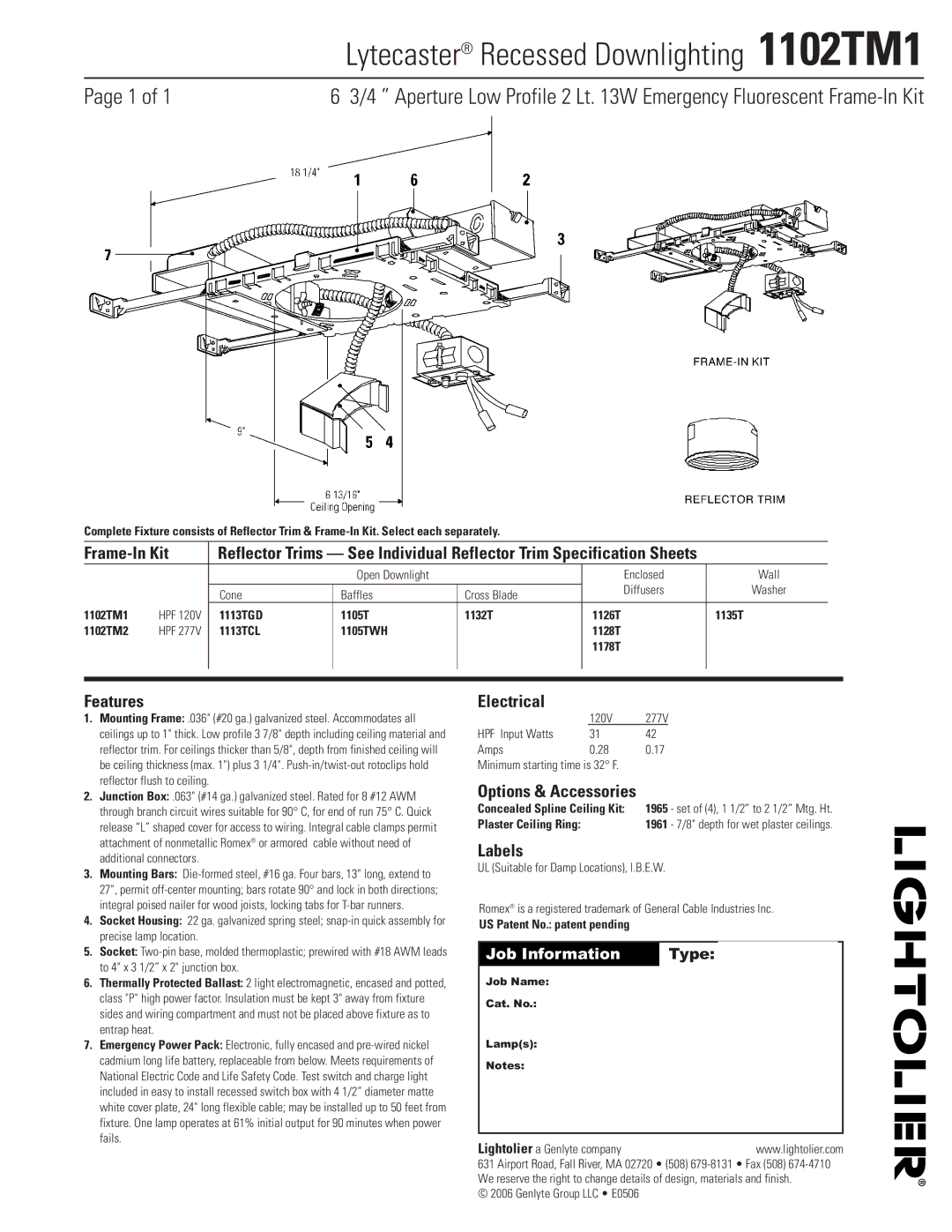

Lytecaster® Recessed Downlighting 1102TM1

Page 1 of 1

6 3/4 ” Aperture Low Profile 2 Lt. 13W Emergency Fluorescent Frame-In Kit

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Frame-In Kit

Reflector Trims — See Individual Reflector Trim Specification Sheets













Open Downlight



Enclosed

Wall









Cone

Baffles

Cross Blade

Diffusers

Washer

















1102TM1

HPF 120V

1113TGD

1105T

1132T

1126T

1135T





1102TM2

HPF 277V

1113TCL

1105TWH



1128T

















1178T











































Features

1.Mounting Frame: .036" (#20 ga.) galvanized steel. Accommodates all ceilings up to 1" thick. Low profile 3 7/8" depth including ceiling material and reflector trim. For ceilings thicker than 5/8", depth from finished ceiling will be ceiling thickness (max. 1") plus 3 1/4". Push-in/twist-out rotoclips hold reflector flush to ceiling.

2.Junction Box: .063" (#14 ga.) galvanized steel. Rated for 8 #12 AWM through branch circuit wires suitable for 90° C, for end of run 75° C. Quick release “L” shaped cover for access to wiring. Integral cable clamps permit attachment of nonmetallic Romex® or armored cable without need of additional connectors.

3.Mounting Bars: Die-formed steel, #16 ga. Four bars, 13" long, extend to 27", permit off-center mounting; bars rotate 90° and lock in both directions; integral poised nailer for wood joists, locking tabs for T-bar runners.

4.Socket Housing: 22 ga. galvanized spring steel; snap-in quick assembly for precise lamp location.

5.Socket: Two-pin base, molded thermoplastic; prewired with #18 AWM leads to 4" x 3 1/2” x 2" junction box.

6.Thermally Protected Ballast: 2 light electromagnetic, encased and potted, class "P" high power factor. Insulation must be kept 3" away from fixture sides and wiring compartment and must not be placed above fixture as to entrap heat.

7.Emergency Power Pack: Electronic, fully encased and pre-wired nickel cadmium long life battery, replaceable from below. Meets requirements of National Electric Code and Life Safety Code. Test switch and charge light included in easy to install recessed switch box with 4 1/2” diameter matte white cover plate, 24" long flexible cable; may be installed up to 50 feet from fixture. One lamp operates at 61% initial output for 90 minutes when power fails.

Electrical



120V

277V

HPF Input Watts

31

42

Amps

0.28

0.17

Minimum starting time is 32° F.

Options & Accessories

Concealed Spline Ceiling Kit:

1965 - set of (4), 1 1/2” to 2 1/2” Mtg. Ht.

Plaster Ceiling Ring:

1961 - 7/8" depth for wet plaster ceilings.

Labels

UL (Suitable for Damp Locations), I.B.E.W.

Romex® is a registered trademark of General Cable Industries Inc.

US Patent No.: patent pending











Job Information

Type:















Job Name:



































Cat. No.:

























Lamp(s):

























Notes:































































Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • E0506
