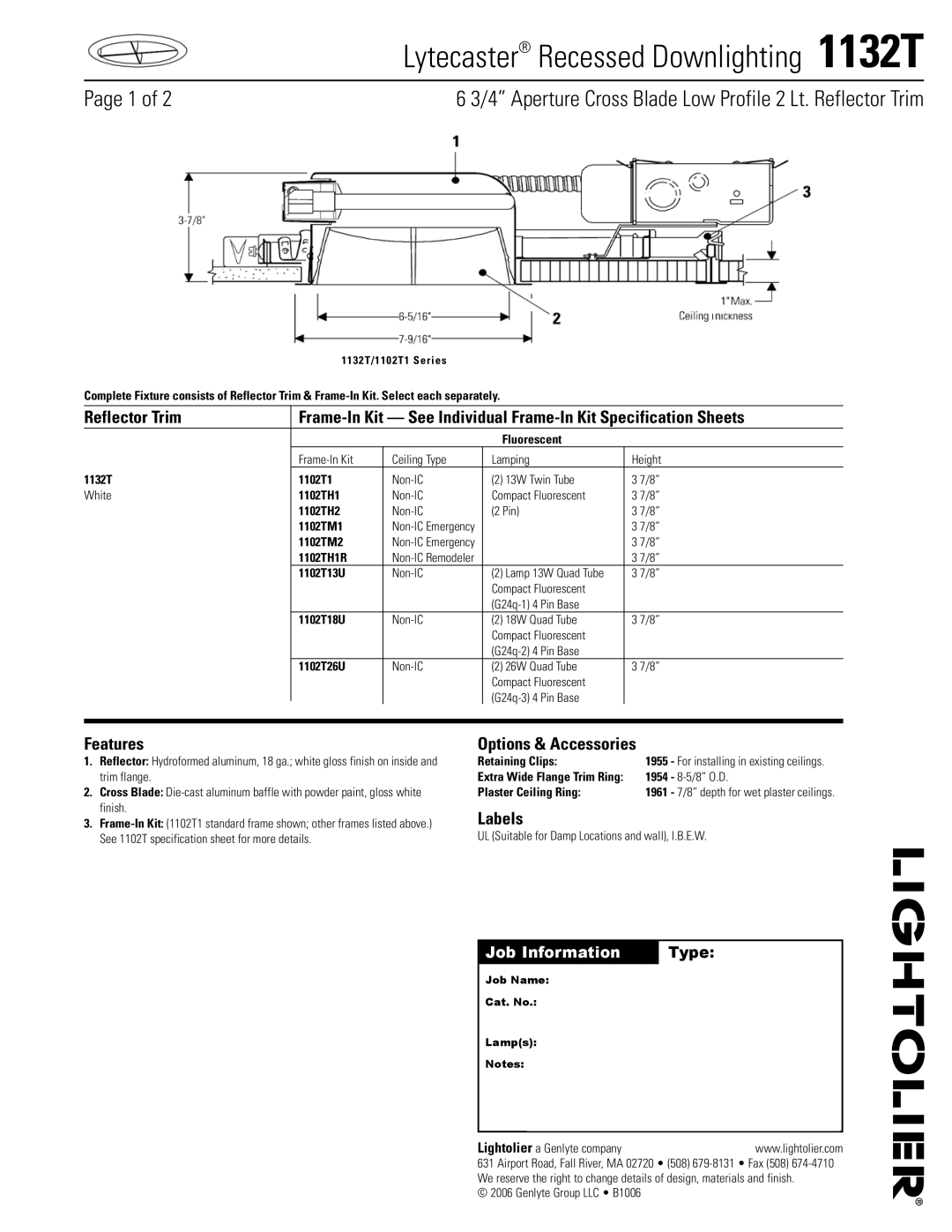

Lightolier specifications Lytecaster Recessed Downlighting 1132T, Page  of, Job Information

	Lytecaster® Recessed Downlighting  1132T
Page  of 2	6 3/4” Aperture Cross Blade Low Profile 2 Lt. Reflector Trim

1132T/1102T1 Series

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim	Frame-In Kit — See Individual Frame-In Kit Specification Sheets
			Fluorescent
	Frame-In Kit	Ceiling Type	Lamping	Height
1132T	1102T1	Non-IC	(2) 13W Twin Tube	3 7/8”
White	1102TH1	Non-IC	Compact Fluorescent	3 7/8”
	1102TH2	Non-IC	(2 Pin)	3 7/8”
	1102TM1	Non-IC Emergency		3 7/8”
	1102TM2	Non-IC Emergency		3 7/8”
	1102TH1R	Non-IC Remodeler		3 7/8”
	1102T13U	Non-IC	(2) Lamp 13W Quad Tube	3 7/8”
			Compact Fluorescent
			(G24q-1) 4 Pin Base
	1102T18U	Non-IC	(2) 18W Quad Tube	3 7/8”
			Compact Fluorescent
			(G24q-2) 4 Pin Base
	1102T26U	Non-IC	(2) 26W Quad Tube	3 7/8”
			Compact Fluorescent
			(G24q-3) 4 Pin Base

Features

1.Reflector: Hydroformed aluminum, 18 ga.; white gloss finish on inside and trim flange.

2.Cross Blade: Die-cast aluminum baffle with powder paint, gloss white finish.

3.Frame-In Kit: (1102T1 standard frame shown; other frames listed above.) See 1102T specification sheet for more details.

Options & Accessories

Retaining Clips:	1955	- For installing in existing ceilings.
Extra Wide Flange Trim Ring:	1954	- 8-5/8” O.D.
Plaster Ceiling Ring:	1961	- 7/8” depth for wet plaster ceilings.

Labels

UL (Suitable for Damp Locations and wall), I.B.E.W.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • B1006
