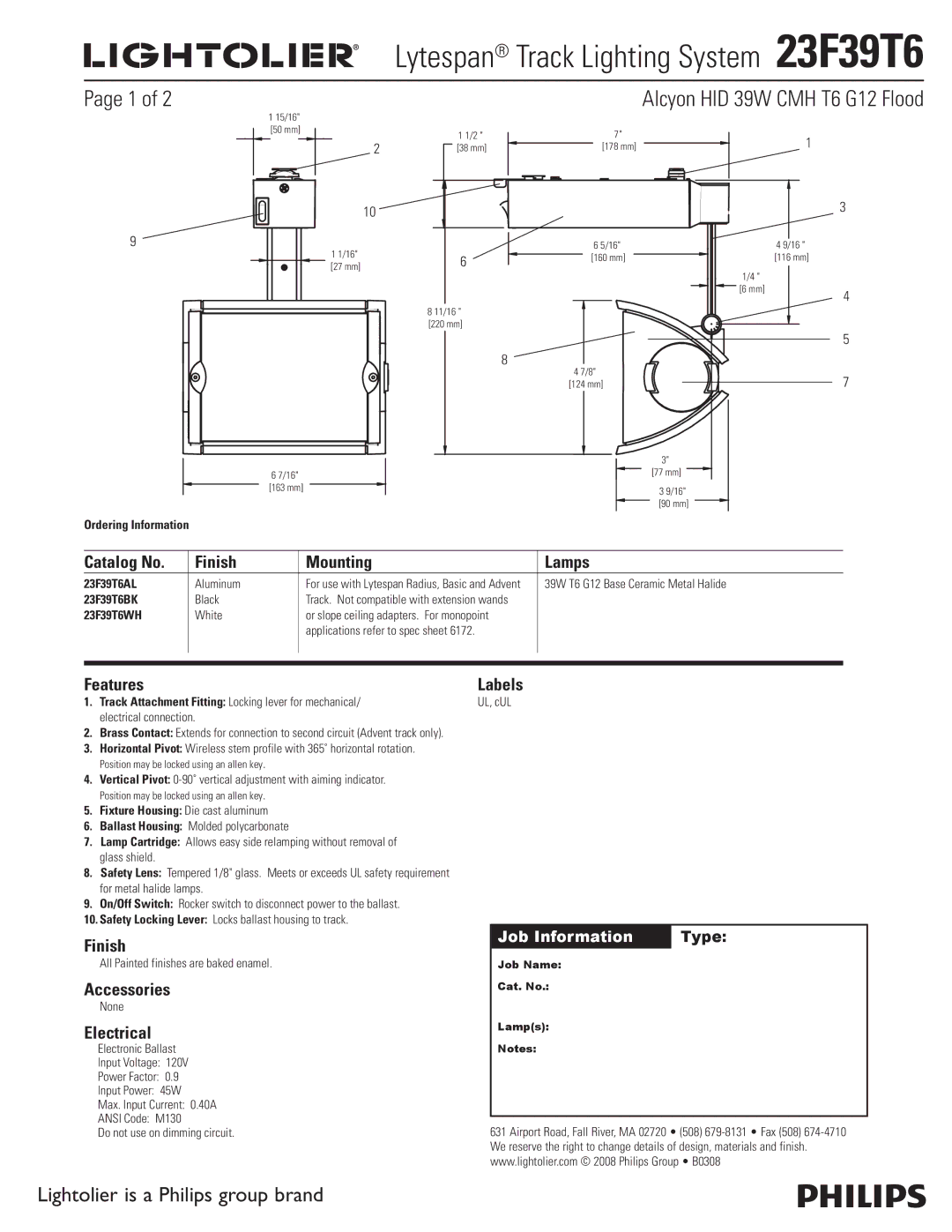

Lytespan® Track Lighting System 23F39T6
Page 1 of 2
1 15/16"
[50 mm]
2
10
9
1 1/16"
[27 mm]
6 7/16"
[163 mm]
|
| Alcyon HID 39W CMH T6 G12 Flood | |
1 1/2 " | 7" |
| 1 |
[38 mm] | [178 mm] |
| |
|
|
| 3 |
| 6 5/16" |
| 4 9/16 " |
6 | [160 mm] |
| [116 mm] |
|
|
| |
|
| 1/4 " |
|
|
| [6 mm] | 4 |
|
|
| |
8 11/16 " |
|
|
|
[220 mm] |
|
|
|
|
|
| 5 |
| 8 |
|
|
| 4 7/8" |
| 7 |
| [124 mm] |
| |
3" [77 mm]
3 9/16"
[90 mm]
Ordering Information
Catalog No. | Finish | Mounting | Lamps |
23F39T6AL | Aluminum | For use with Lytespan Radius, Basic and Advent | 39W T6 G12 Base Ceramic Metal Halide |
23F39T6BK | Black | Track. Not compatible with extension wands |
|
23F39T6WH | White | or slope ceiling adapters. For monopoint |
|
|
| applications refer to spec sheet 6172. |
|
|
|
|
|
|
|
|
|
Features
1.Track Attachment Fitting: Locking lever for mechanical/ electrical connection.
2.Brass Contact: Extends for connection to second circuit (Advent track only).
3.Horizontal Pivot: Wireless stem profile with 365˚ horizontal rotation.
Position may be locked using an allen key.
4.Vertical Pivot:
Position may be locked using an allen key.
5.Fixture Housing: Die cast aluminum
6.Ballast Housing: Molded polycarbonate
7.Lamp Cartridge: Allows easy side relamping without removal of glass shield.
8.Safety Lens: Tempered 1/8" glass. Meets or exceeds UL safety requirement for metal halide lamps.
9.On/Off Switch: Rocker switch to disconnect power to the ballast.
10.Safety Locking Lever: Locks ballast housing to track.
Finish
All Painted finishes are baked enamel.
Accessories
None
Electrical
Electronic Ballast
Input Voltage: 120V
Power Factor: 0.9
Input Power: 45W
Max. Input Current: 0.40A
ANSI Code: M130
Do not use on dimming circuit.
Lightolier is a Philips group brand
Labels
UL, cUL
Job Information | Type: |
|
|
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508)
