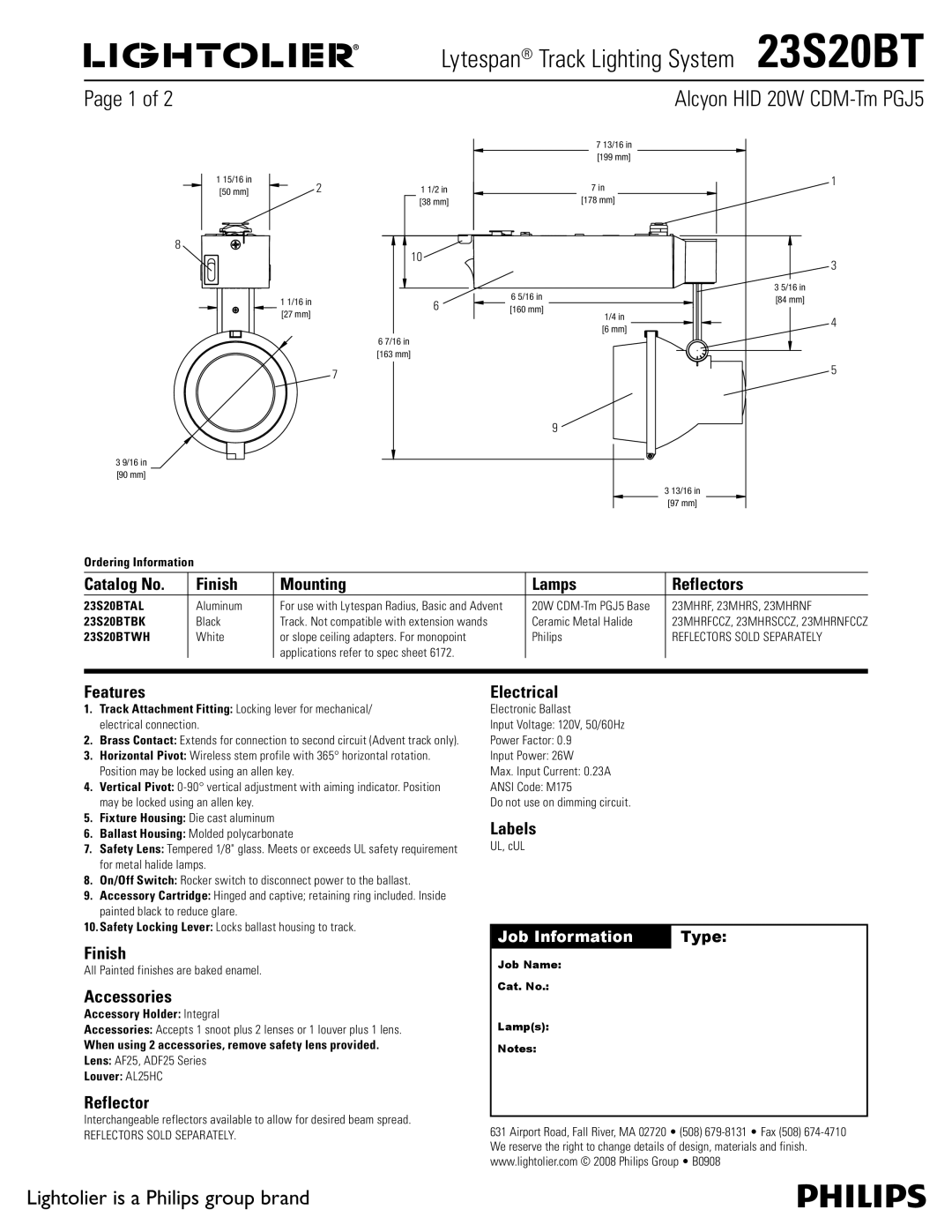

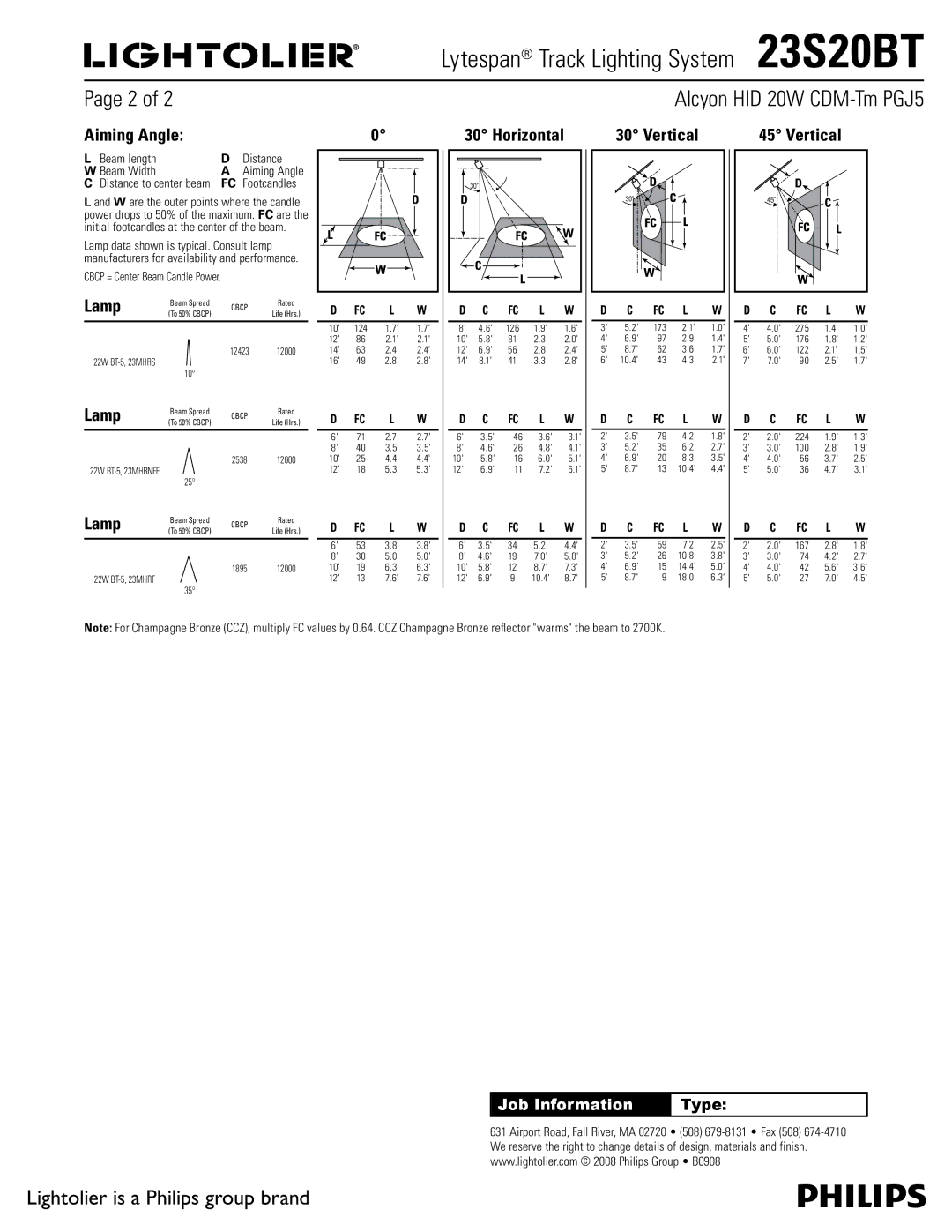

Lytespan® Track Lighting System 23S20BT
Page 1 of 2 |
|
|
|
|
| Alcyon HID 20W |
|
|
|
|
| 7 13/16 in |
|
|
|
|
|
| [199 mm] |
|
| 1 15/16 in | 2 | 1 1/2 in |
| 7 in | 1 |
| [50 mm] |
|
| |||
|
|
| [38 mm] |
| [178 mm] |
|
8 |
|
| 10 |
|
|
|
|
|
|
|
| 3 | |
|
|
|
|
|
| |
|
|
|
| 6 5/16 in |
| 3 5/16 in |
|
| 1 1/16 in | 6 |
| [84 mm] | |
|
| [160 mm] |
| |||
|
| [27 mm] | 1/4 in |
| ||
|
|
|
| 4 | ||
|
|
|
|
| [6 mm] | |
|
|
|
|
|
| |
|
|
| 6 7/16 in |
|
|
|
|
|
| [163 mm] |
|
|
|
|
| 7 |
|
|
| 5 |
|
|
|
|
|
| |
|
|
|
| 9 |
|
|
3 9/16 in |
|
|
|
|
|
|
[90 mm] |
|
|
|
|
|
|
|
|
|
|
|
| 3 13/16 in |
|
|
|
|
|
| [97 mm] |
Ordering Information |
|
|
|
|
|
|
Catalog No. | Finish | Mounting |
| Lamps |
| Reflectors |
23S20BTAL | Aluminum | For use with Lytespan Radius, Basic and Advent | 20W | 23MHRF, 23MHRS, 23MHRNF | ||
23S20BTBK | Black | Track. Not compatible with extension wands | Ceramic Metal Halide | 23MHRFCCZ, 23MHRSCCZ, 23MHRNFCCZ | ||
23S20BTWH | White | or slope ceiling adapters. For monopoint | Philips |
| REFLECTORS SOLD SEPARATELY | |
|
| applications refer to spec sheet 6172. |
|
|
| |
Features
1.Track Attachment Fitting: Locking lever for mechanical/ electrical connection.
2.Brass Contact: Extends for connection to second circuit (Advent track only).
3.Horizontal Pivot: Wireless stem profile with 365° horizontal rotation.
Position may be locked using an allen key.
4.Vertical Pivot:
5.Fixture Housing: Die cast aluminum
6.Ballast Housing: Molded polycarbonate
7.Safety Lens: Tempered 1/8" glass. Meets or exceeds UL safety requirement for metal halide lamps.
8.On/Off Switch: Rocker switch to disconnect power to the ballast.
9.Accessory Cartridge: Hinged and captive; retaining ring included. Inside painted black to reduce glare.
10.Safety Locking Lever: Locks ballast housing to track.
Finish
All Painted finishes are baked enamel.
Accessories
Accessory Holder: Integral
Accessories: Accepts 1 snoot plus 2 lenses or 1 louver plus 1 lens.
When using 2 accessories, remove safety lens provided.
Lens: AF25, ADF25 Series
Louver: AL25HC
Reflector
Interchangeable reflectors available to allow for desired beam spread.
REFLECTORS SOLD SEPARATELY.
Lightolier is a Philips group brand
Electrical
Electronic Ballast
Input Voltage: 120V, 50/60Hz
Power Factor: 0.9
Input Power: 26W
Max. Input Current: 0.23A
ANSI Code: M175
Do not use on dimming circuit.
Labels
UL, cUL
Job Information | Type: |
|
|
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508)
