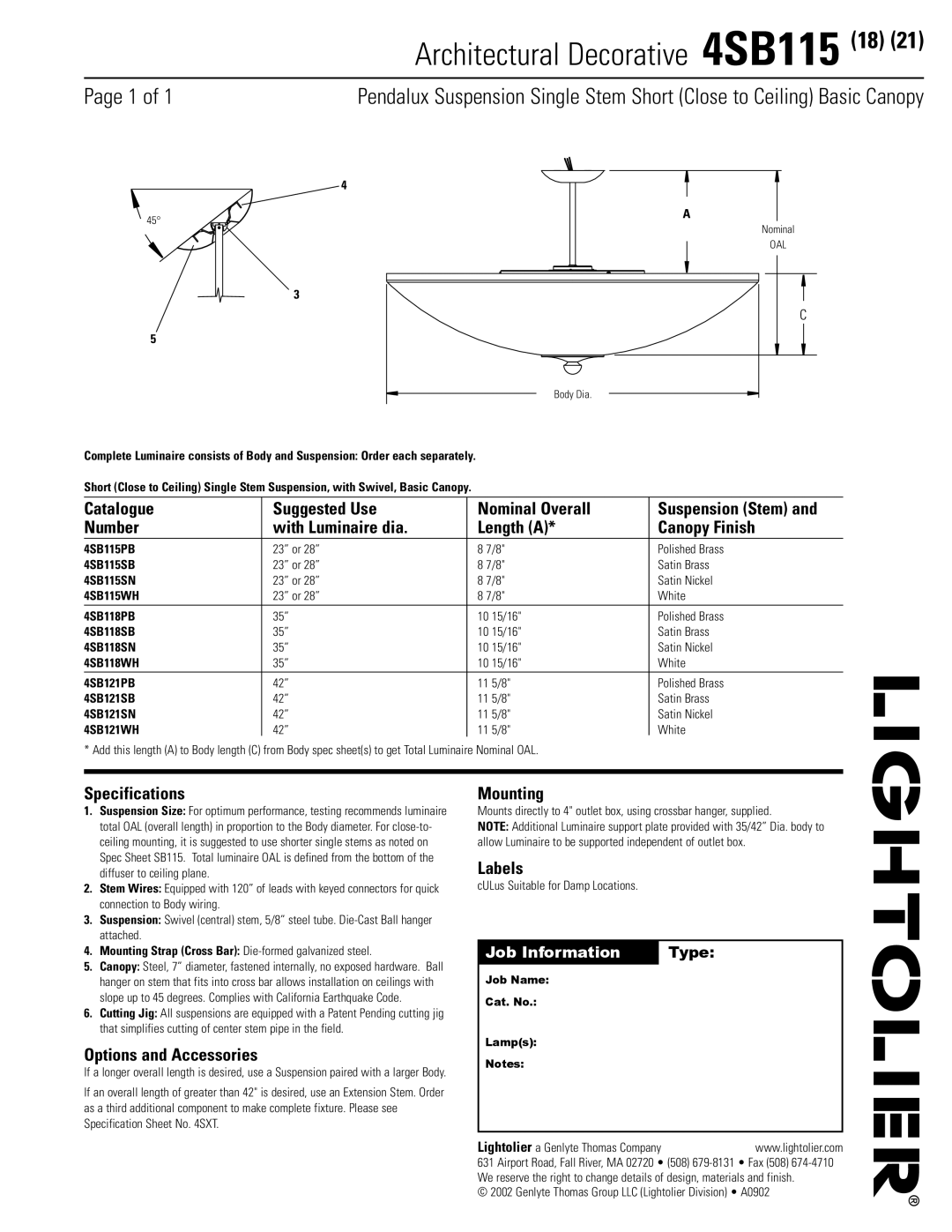

Architectural Decorative 4SB115 (18) (21)

Page 1 of 1

Pendalux Suspension Single Stem Short (Close to Ceiling) Basic Canopy

4

45°

3

5

A

Nominal

OAL

C

Body Dia.

Complete Luminaire consists of Body and Suspension: Order each separately.

Short (Close to Ceiling) Single Stem Suspension, with Swivel, Basic Canopy.

Catalogue

Suggested Use

Nominal Overall

Suspension (Stem) and

Number

with Luminaire dia.

Length (A)*

Canopy Finish

4SB115PB

23” or 28”

8 7/8"

Polished Brass

4SB115SB

23” or 28”

8 7/8"

Satin Brass

4SB115SN

23” or 28”

8 7/8"

Satin Nickel

4SB115WH

23” or 28”

8 7/8"

White

4SB118PB

35”

10

15/16"

Polished Brass

4SB118SB

35”

10

15/16"

Satin Brass

4SB118SN

35”

10

15/16"

Satin Nickel

4SB118WH

35”

10

15/16"

White











4SB121PB

42”

11

5/8"

Polished Brass

4SB121SB

42”

11

5/8"

Satin Brass

4SB121SN

42”

11

5/8"

Satin Nickel

4SB121WH

42”

11

5/8"

White

* Add this length (A) to Body length (C) from Body spec sheet(s) to get Total Luminaire Nominal OAL.

Specifications

1.Suspension Size: For optimum performance, testing recommends luminaire total OAL (overall length) in proportion to the Body diameter. For close-to- ceiling mounting, it is suggested to use shorter single stems as noted on Spec Sheet SB115. Total luminaire OAL is defined from the bottom of the diffuser to ceiling plane.

2.Stem Wires: Equipped with 120” of leads with keyed connectors for quick connection to Body wiring.

3.Suspension: Swivel (central) stem, 5/8” steel tube. Die-Cast Ball hanger attached.

4.Mounting Strap (Cross Bar): Die-formed galvanized steel.

5.Canopy: Steel, 7” diameter, fastened internally, no exposed hardware. Ball hanger on stem that fits into cross bar allows installation on ceilings with slope up to 45 degrees. Complies with California Earthquake Code.

6.Cutting Jig: All suspensions are equipped with a Patent Pending cutting jig that simplifies cutting of center stem pipe in the field.

Options and Accessories

If a longer overall length is desired, use a Suspension paired with a larger Body.

If an overall length of greater than 42" is desired, use an Extension Stem. Order as a third additional component to make complete fixture. Please see Specification Sheet No. 4SXT.

Mounting

Mounts directly to 4" outlet box, using crossbar hanger, supplied.

NOTE: Additional Luminaire support plate provided with 35/42” Dia. body to allow Luminaire to be supported independent of outlet box.

Labels

cULus Suitable for Damp Locations.

Job Information

Type:

Job Name:

Cat. No.:

Lamp(s): Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
