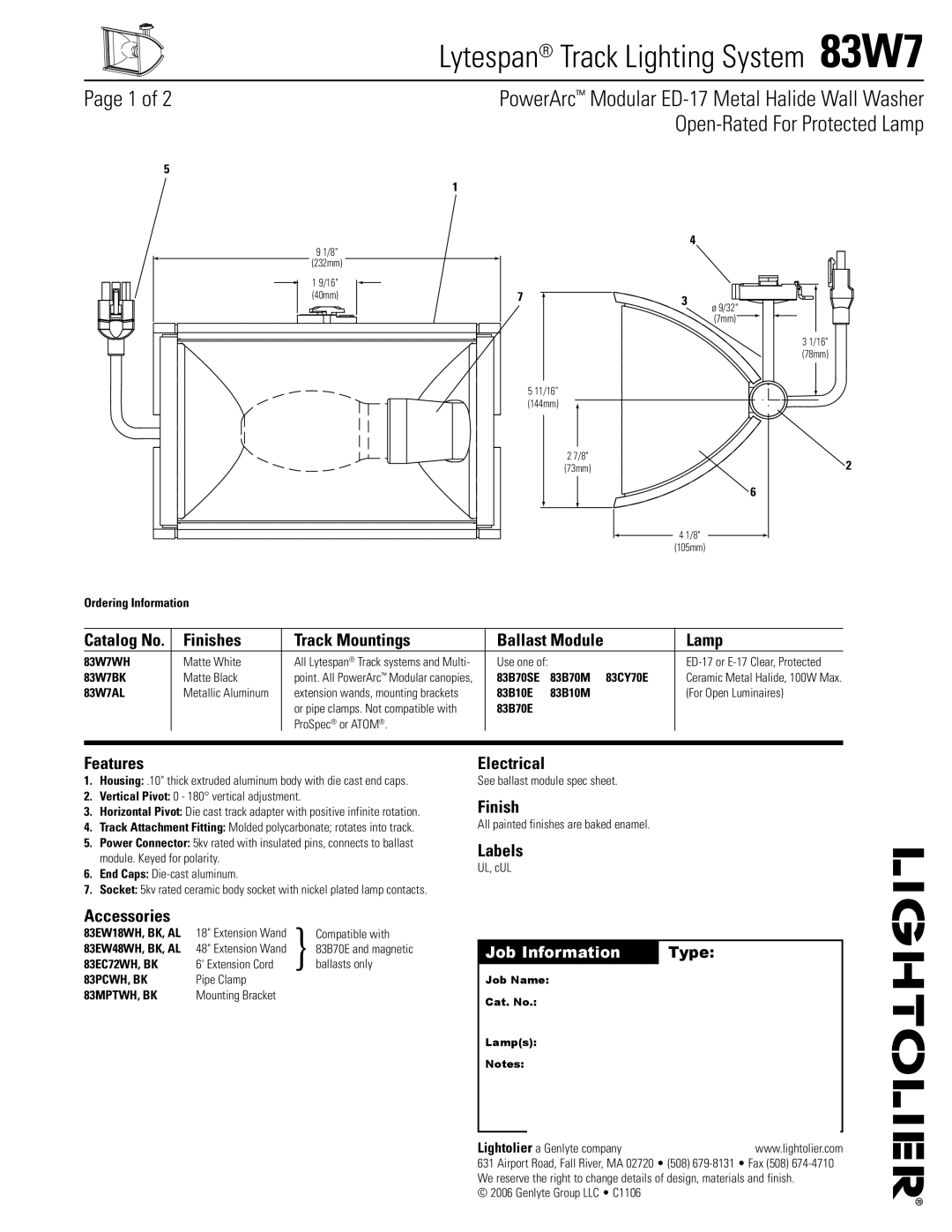

Lytespan® Track Lighting System  83W7

Page  of 2

5

9 1/8"

(232mm)

1 9/16" (40mm)

PowerArc™ Modular ED-17 Metal Halide Wall Washer Open-Rated For Protected Lamp

1

		4
7	3	ø 9/32"
		(7mm)

3 1/16" (78mm)

5 11/16" (144mm)

2 7/8"	2
(73mm)

6

4 1/8"

(105mm)

Ordering Information

Catalog No.	Finishes	Track Mountings	Ballast Module		Lamp
83W7WH	Matte White	All Lytespan® Track systems and Multi-	Use one of:		ED-17 or E-17 Clear, Protected
83W7BK	Matte Black	point. All PowerArc™ Modular canopies,	83B70SE	83B70M 83CY70E	Ceramic Metal Halide, 100W Max.
83W7AL	Metallic Aluminum	extension wands, mounting brackets	83B10E	83B10M	(For Open Luminaires)
		or pipe clamps. Not compatible with	83B70E
		ProSpec® or ATOM®.

Features

1.Housing: .10" thick extruded aluminum body with die cast end caps.

2.Vertical Pivot: 0 - 180° vertical adjustment.

3.Horizontal Pivot: Die cast track adapter with positive infinite rotation.

4.Track Attachment Fitting: Molded polycarbonate; rotates into track.

5.Power Connector: 5kv rated with insulated pins, connects to ballast module. Keyed for polarity.

6.End Caps: Die-cast aluminum.

7.Socket: 5kv rated ceramic body socket with nickel plated lamp contacts.

Accessories

83EW18WH, BK, AL	18" Extension Wand	Compatible with
83EW48WH, BK, AL	48" Extension Wand	83B70E and magnetic
83EC72WH, BK	6' Extension Cord	} ballasts only
83PCWH, BK	Pipe Clamp
83MPTWH, BK	Mounting Bracket

Electrical

See ballast module spec sheet.

Finish

All painted finishes are baked enamel.

Labels

UL, cUL

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • C1106
