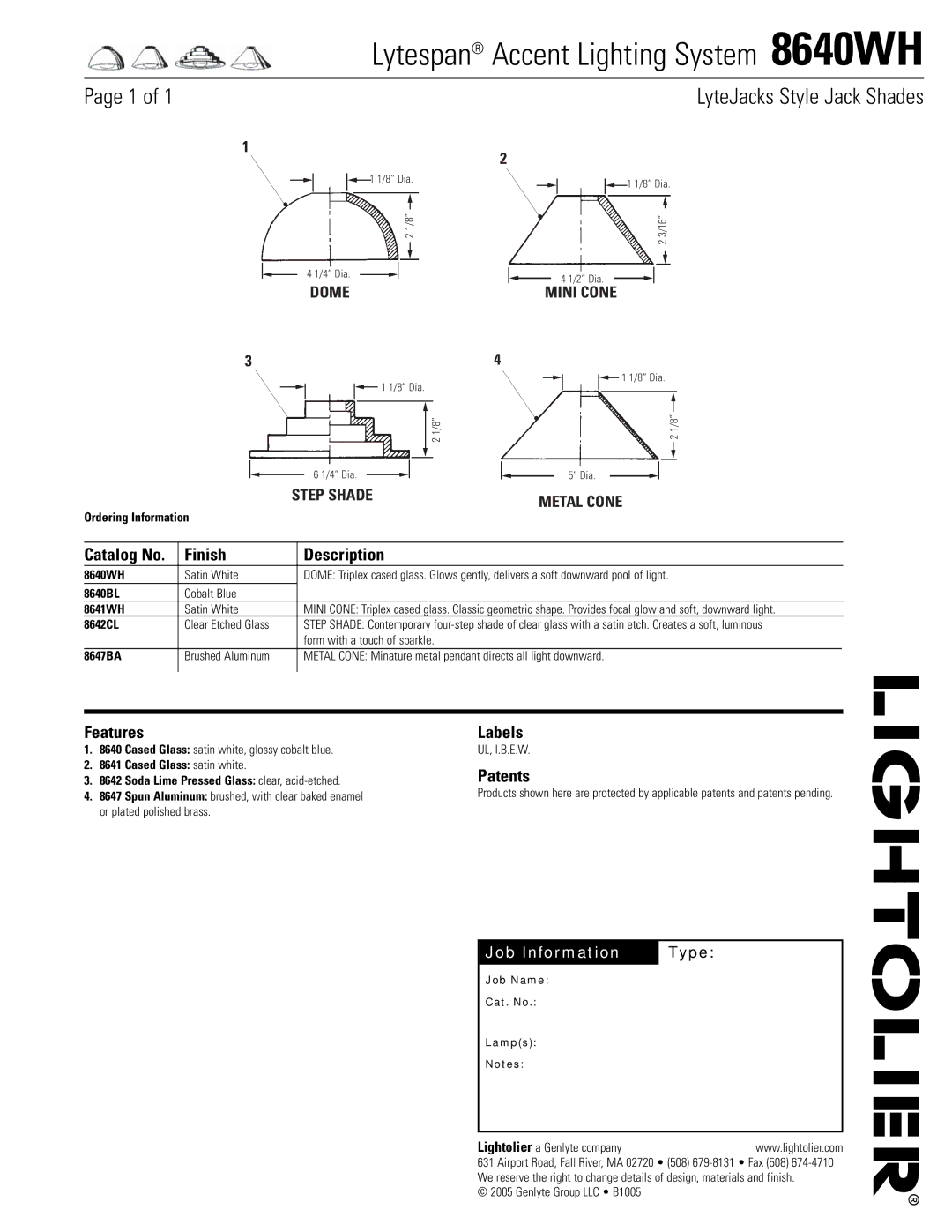

Lightolier manual Lytespan Accent Lighting System 8640WH, Page 1 of, Finish, Description, Dome

Lytespan® Accent Lighting System 8640WH

Page 1 of 1

LyteJacks Style Jack Shades

1

2

1 1/8” Dia.

1 1/8” Dia.

1/8”

/16”

2

3

2

4 1/4” Dia.

4 1/2” Dia.

MINI CONE

3

DOME

4

1 1/8” Dia.

1 1/8” Dia.

2 1/8”

2 1/8”

6 1/4” Dia.

5” Dia.

STEP SHADE

Ordering Information

METAL CONE

Catalog No.

Finish

Description

8640WH

Satin White

DOME: Triplex cased glass. Glows gently, delivers a soft downward pool of light.

8640BL

Cobalt Blue

8641WH

Satin White

MINI CONE: Triplex cased glass. Classic geometric shape. Provides focal glow and soft, downward light.

8642CL

Clear Etched Glass

STEP SHADE: Contemporary four-step shade of clear glass with a satin etch. Creates a soft, luminous

form with a touch of sparkle.

8647BA

Brushed Aluminum

METAL CONE: Minature metal pendant directs all light downward.

Features

1.8640 Cased Glass: satin white, glossy cobalt blue.2.8641 Cased Glass: satin white.3.8642 Soda Lime Pressed Glass: clear, acid-etched.

4.8647 Spun Aluminum: brushed, with clear baked enamel or plated polished brass.

Labels

UL, I.B.E.W.

Patents

Products shown here are protected by applicable patents and patents pending.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s): Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2005 Genlyte Group LLC • B1005
