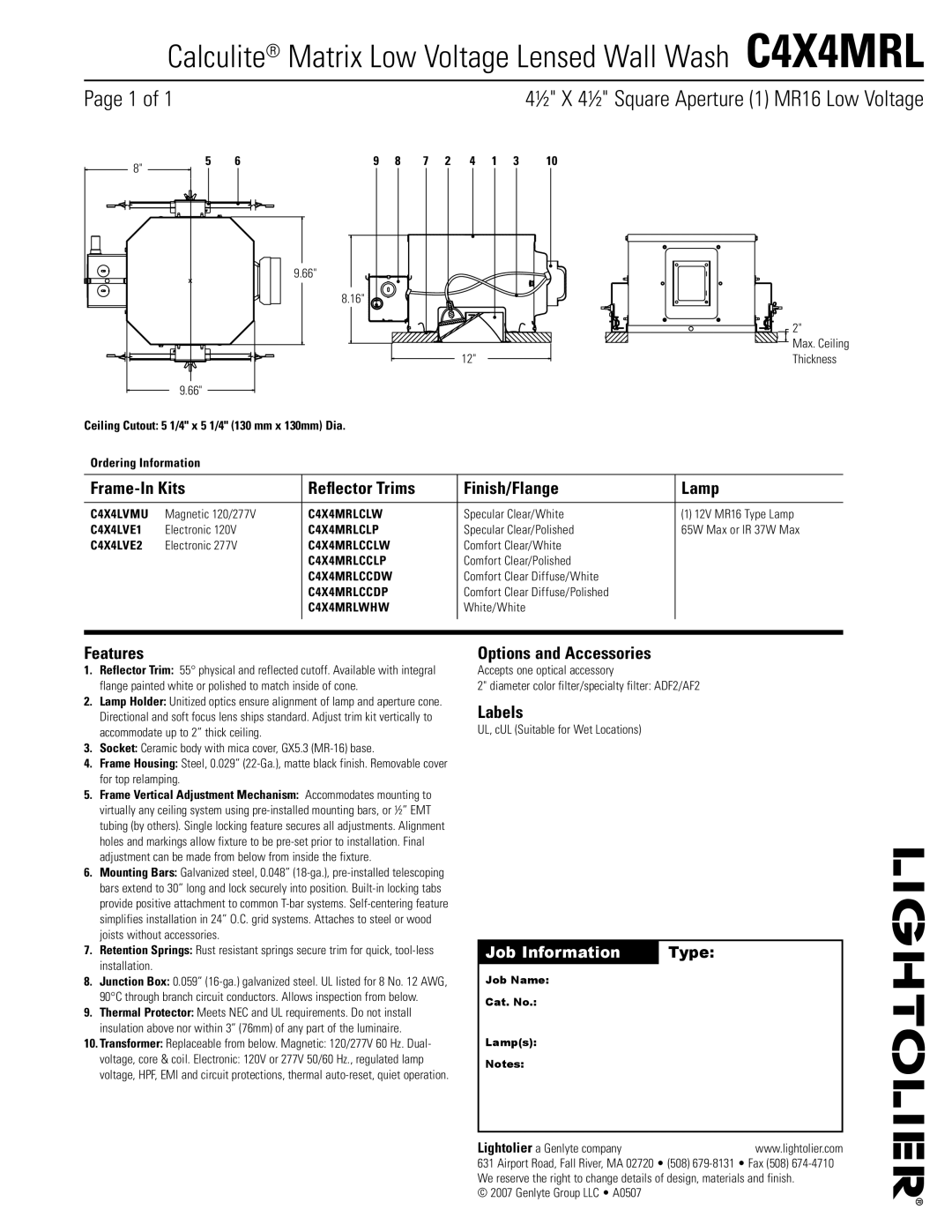

Calculite® Matrix Low Voltage Lensed Wall Wash C4X4MRL
Page 1 of 1 |
|
|
|
|
|
|
|
|
| 4½" X 4½" Square Aperture (1) MR16 Low Voltage |
8" | 5 | 6 | 9 | 8 | 7 | 2 | 4 | 1 | 3 | 10 |
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
9.66"
8.16"
| 2" |
| Max. Ceiling |
12" | Thickness |
9.66"
Ceiling Cutout: 5 1/4" x 5 1/4" (130 mm x 130mm) Dia.
Ordering Information
| Reflector Trims | Finish/Flange | Lamp | |
|
|
|
|
|
C4X4LVMU | Magnetic 120/277V | C4X4MRLCLW | Specular Clear/White | (1) 12V MR16 Type Lamp |
C4X4LVE1 | Electronic 120V | C4X4MRLCLP | Specular Clear/Polished | 65W Max or IR 37W Max |
C4X4LVE2 | Electronic 277V | C4X4MRLCCLW | Comfort Clear/White |
|
|
| C4X4MRLCCLP | Comfort Clear/Polished |
|
|
| C4X4MRLCCDW | Comfort Clear Diffuse/White |
|
|
| C4X4MRLCCDP | Comfort Clear Diffuse/Polished |
|
|
| C4X4MRLWHW | White/White |
|
|
|
|
|
|
|
|
|
|
|
Features
1.Reflector Trim: 55° physical and reflected cutoff. Available with integral flange painted white or polished to match inside of cone.
2.Lamp Holder: Unitized optics ensure alignment of lamp and aperture cone. Directional and soft focus lens ships standard. Adjust trim kit vertically to accommodate up to 2” thick ceiling.
3.Socket: Ceramic body with mica cover, GX5.3
4.Frame Housing: Steel, 0.029”
5.Frame Vertical Adjustment Mechanism: Accommodates mounting to virtually any ceiling system using
6.Mounting Bars: Galvanized steel, 0.048”
7.Retention Springs: Rust resistant springs secure trim for quick,
8.Junction Box: 0.059”
9.Thermal Protector: Meets NEC and UL requirements. Do not install insulation above nor within 3” (76mm) of any part of the luminaire.
10.Transformer: Replaceable from below. Magnetic: 120/277V 60 Hz. Dual-
voltage, core & coil. Electronic: 120V or 277V 50/60 Hz., regulated lamp voltage, HPF, EMI and circuit protections, thermal
Options and Accessories
Accepts one optical accessory
2" diameter color filter/specialty filter: ADF2/AF2
Labels
UL, cUL (Suitable for Wet Locations)
Job Information | Type: |
|
|
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508)
© 2007 Genlyte Group LLC • A0507
