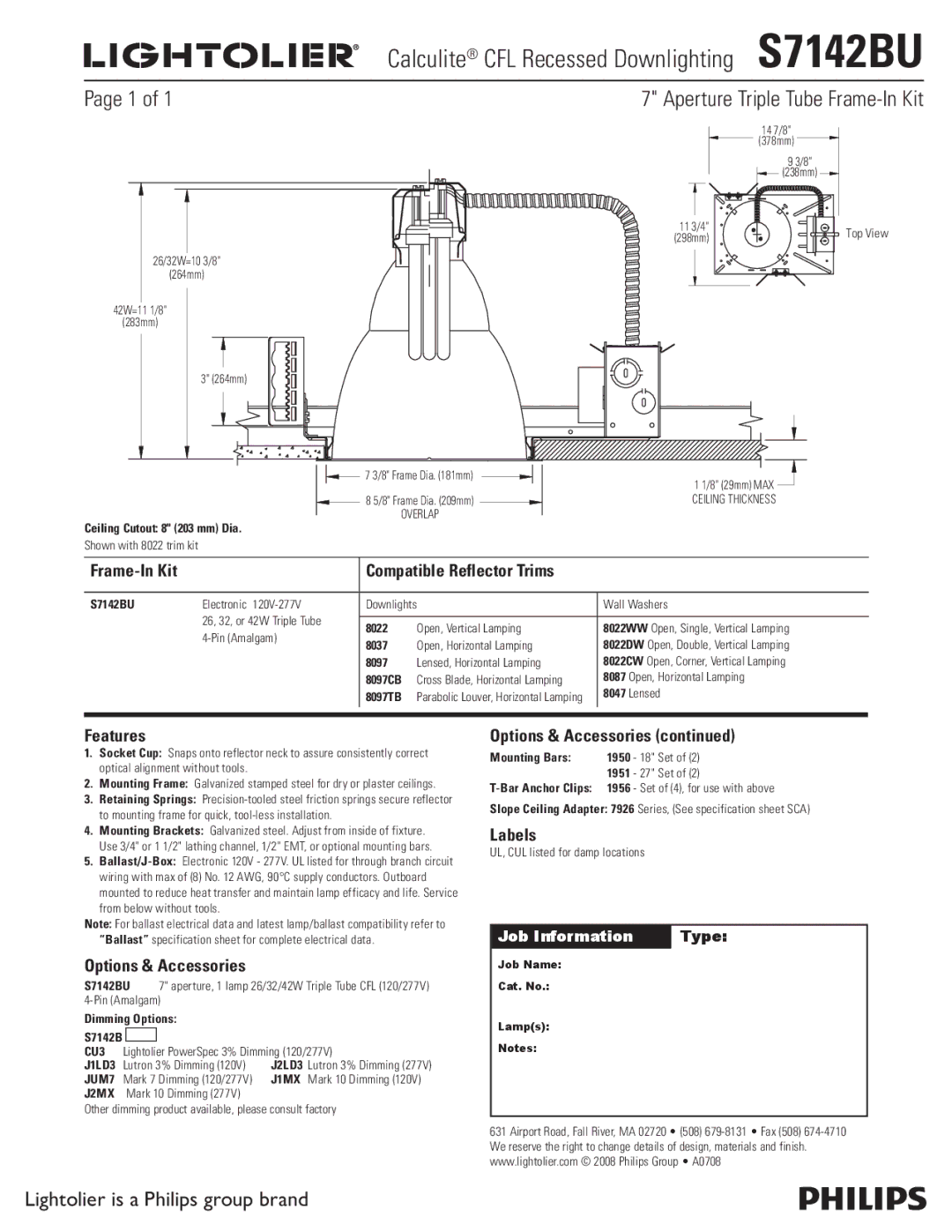

Calculite® CFL Recessed Downlighting  S7142BU

Page 1 of 1

26/32W=10 3/8"

(264mm)

42W=11 1/8"

(283mm)

3" (264mm)

7 3/8" Frame Dia. (181mm)

8 5/8" Frame Dia. (209mm)

OVERLAP

Ceiling Cutout: 8" (203 mm) Dia.

Shown with 8022 trim kit

7" Aperture Triple Tube Frame-In Kit

14 7/8"

(378mm)

9 3/8"

(238mm)

11 3/4"	Top View
(298mm)

1 1/8" (29mm) MAX

CEILING THICKNESS

Frame-In Kit		Compatible Reflector Trims
S7142BU	Electronic 120V-277V	Downlights		Wall Washers
	26, 32, or 42W Triple Tube
		8022	Open, Vertical Lamping	8022WW Open, Single, Vertical Lamping
	4-Pin (Amalgam)
		8037	Open, Horizontal Lamping	8022DW Open, Double, Vertical Lamping
		8097	Lensed, Horizontal Lamping	8022CW Open, Corner, Vertical Lamping
		8097CB	Cross Blade, Horizontal Lamping	8087	Open, Horizontal Lamping
		8097TB	Parabolic Louver, Horizontal Lamping	8047	Lensed

Features

1.Socket Cup:  Snaps onto reflector neck to assure consistently correct optical alignment without tools.

2.Mounting Frame:  Galvanized stamped steel for dry or plaster ceilings.

3.Retaining Springs:  Precision-tooled steel friction springs secure reflector to mounting frame for quick, tool-less installation.

4.Mounting Brackets:  Galvanized steel. Adjust from inside of fixture. Use 3/4" or 1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.

5.Ballast/J-Box:  Electronic 120V - 277V. UL listed for through branch circuit wiring with max of (8) No. 12 AWG, 90°C supply conductors. Outboard mounted to reduce heat transfer and maintain lamp efficacy and life. Service from below without tools.

Note: For ballast electrical data and latest lamp/ballast compatibility refer to “Ballast” specification sheet for complete electrical data.

Options & Accessories

S7142BU 7" aperture, 1 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)

Dimming Options:
S7142B
CU3	Lightolier PowerSpec 3% Dimming (120/277V)
J1LD3	Lutron 3% Dimming (120V)	J2LD3 Lutron 3% Dimming (277V)
JUM7	Mark 7 Dimming (120/277V)	J1MX Mark 10 Dimming (120V)

J2MX Mark 10 Dimming (277V)

Other dimming product available, please consult factory

Options & Accessories (continued)

Mounting Bars:	1950	- 18" Set of (2)
	1951 - 27" Set of (2)
T-Bar Anchor Clips:	1956	- Set of (4), for use with above

Slope Ceiling Adapter: 7926 Series, (See specification sheet SCA)

Labels

UL, CUL listed for damp locations

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:
