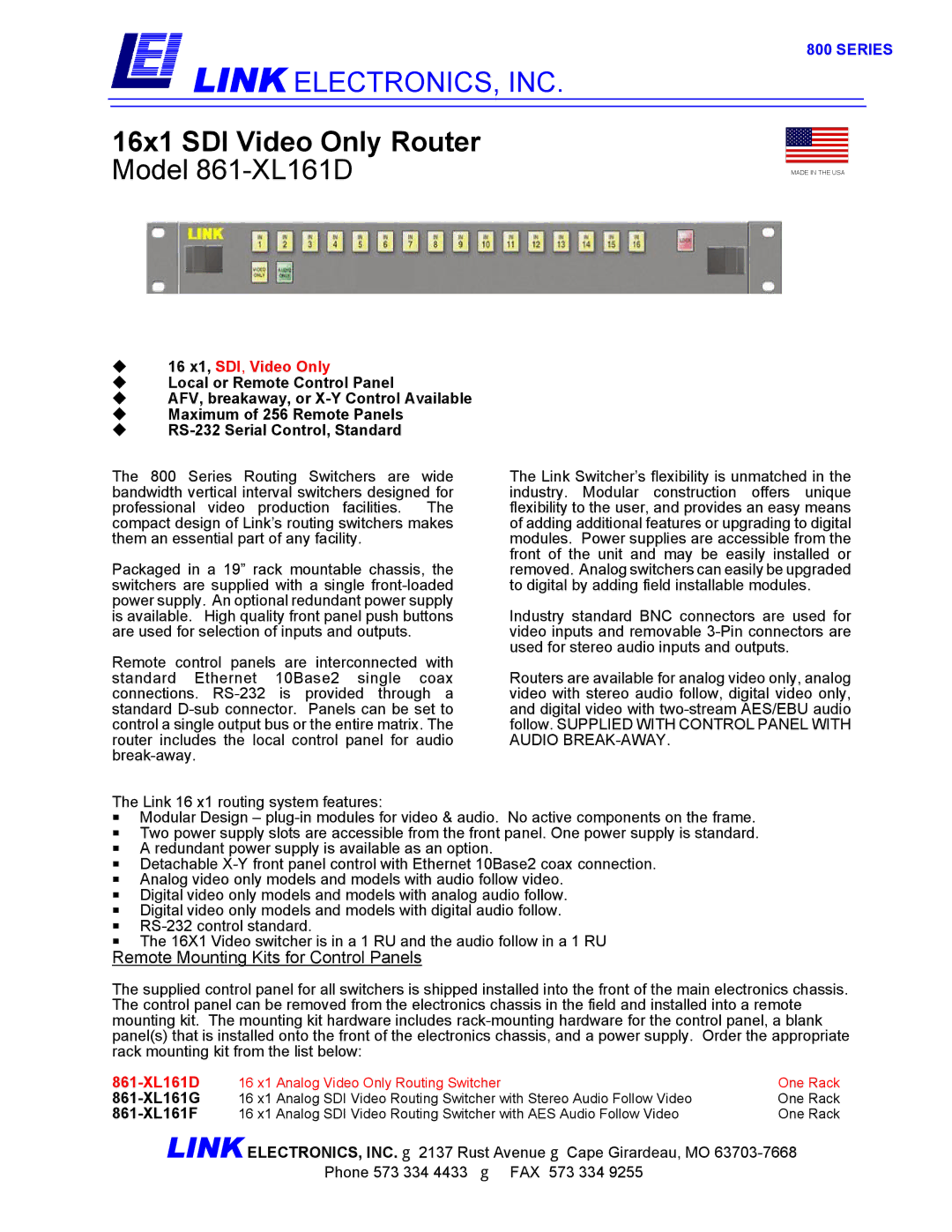

LINK ELECTRONICS, INC.

800 SERIES





















16x1 SDI Video Only Router









Model 861-XL161D

MADE IN THE USA

‹16 x1, SDI, Video Only

‹Local or Remote Control Panel

‹AFV, breakaway, or X-Y Control Available

‹Maximum of 256 Remote Panels

‹RS-232 Serial Control, Standard

The 800 Series Routing Switchers are wide

The Link Switcher’s flexibility is unmatched in the

bandwidth vertical interval switchers designed for

industry. Modular construction offers unique

professional video production facilities. The

flexibility to the user, and provides an easy means

compact design of Link’s routing switchers makes

of adding additional features or upgrading to digital

them an essential part of any facility.

modules. Power supplies are accessible from the

Packaged in a 19” rack mountable chassis, the

front of the unit and may be easily installed or

removed. Analog switchers can easily be upgraded

switchers are supplied with a single front-loaded

to digital by adding field installable modules.

power supply. An optional redundant power supply

Industry standard BNC connectors are used for

is available. High quality front panel push buttons

are used for selection of inputs and outputs.

video inputs and removable 3-Pin connectors are

Remote control panels are interconnected with

used for stereo audio inputs and outputs.

Routers are available for analog video only, analog

standard Ethernet 10Base2 single coax

connections. RS-232 is provided through a

video with stereo audio follow, digital video only,

standard D-sub connector. Panels can be set to

and digital video with two-stream AES/EBU audio

control a single output bus or the entire matrix. The

follow. SUPPLIED WITH CONTROL PANEL WITH

router includes the local control panel for audio

AUDIO BREAK-AWAY.

break-away.



The Link 16 x1 routing system features:

PModular Design – plug-in modules for video & audio. No active components on the frame. P Two power supply slots are accessible from the front panel. One power supply is standard. P A redundant power supply is available as an option.

P Detachable X-Y front panel control with Ethernet 10Base2 coax connection. P Analog video only models and models with audio follow video.

P Digital video only models and models with analog audio follow. P Digital video only models and models with digital audio follow. P RS-232 control standard.

P The 16X1 Video switcher is in a 1 RU and the audio follow in a 1 RU

Remote Mounting Kits for Control Panels

The supplied control panel for all switchers is shipped installed into the front of the main electronics chassis. The control panel can be removed from the electronics chassis in the field and installed into a remote mounting kit. The mounting kit hardware includes rack-mounting hardware for the control panel, a blank panel(s) that is installed onto the front of the electronics chassis, and a power supply. Order the appropriate rack mounting kit from the list below:

861-XL161D

16 x1

Analog Video Only Routing Switcher

One Rack

861-XL161G

16 x1

Analog SDI Video Routing Switcher with Stereo Audio Follow Video

One Rack

861-XL161F

16 x1

Analog SDI Video Routing Switcher with AES Audio Follow Video

One Rack

LINK ELECTRONICS, INC. g 2137 Rust Avenue g Cape Girardeau, MO 63703-7668

Phone 573 334 4433 g FAX 573 334 9255

Page 1
