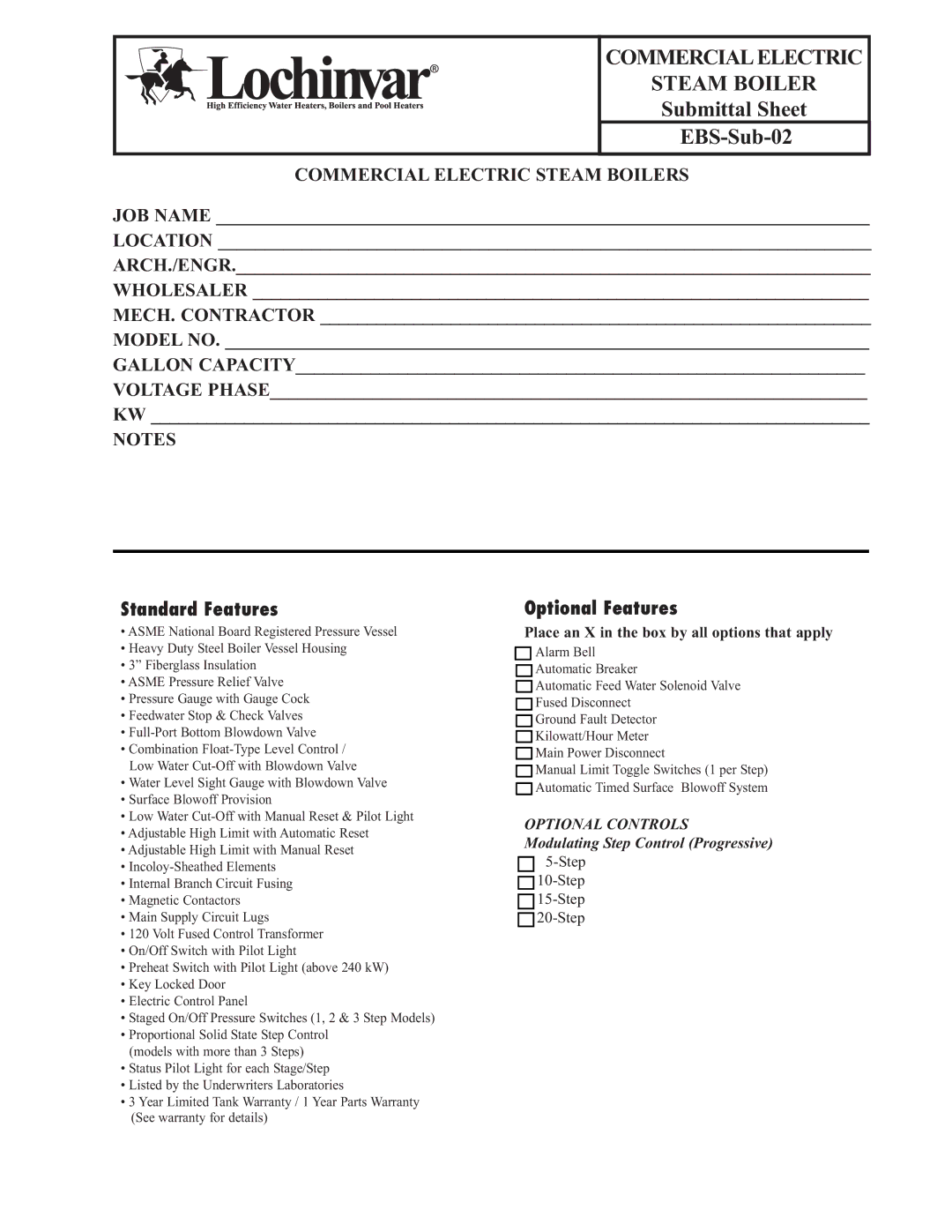

COMMERCIALELECTRIC

STEAM BOILER

Submittal Sheet

EBS-Sub-02

COMMERCIAL ELECTRIC STEAM BOILERS

JOB NAME ______________________________________________________________________

LOCATION ______________________________________________________________________

ARCH./ENGR.____________________________________________________________________

WHOLESALER __________________________________________________________________

MECH. CONTRACTOR ___________________________________________________________

MODEL NO. _____________________________________________________________________

GALLON CAPACITY_____________________________________________________________

VOLTAGE PHASE________________________________________________________________

KW _____________________________________________________________________________

NOTES

Standard Features

ASME National Board Registered Pressure Vessel

Heavy Duty Steel Boiler Vessel Housing

3” Fiberglass Insulation

ASME Pressure Relief Valve

Pressure Gauge with Gauge Cock

Feedwater Stop & Check Valves

Full-Port Bottom Blowdown Valve

Combination Float-Type Level Control / Low Water Cut-Off with Blowdown Valve

Water Level Sight Gauge with Blowdown Valve

Surface Blowoff Provision

Low Water Cut-Off with Manual Reset & Pilot Light

Adjustable High Limit with Automatic Reset

Adjustable High Limit with Manual Reset

Incoloy-Sheathed Elements

Internal Branch Circuit Fusing

Magnetic Contactors

Main Supply Circuit Lugs

120 Volt Fused Control Transformer

On/Off Switch with Pilot Light

Preheat Switch with Pilot Light (above 240 kW)

Key Locked Door

Electric Control Panel

Staged On/Off Pressure Switches (1, 2 & 3 Step Models)

Proportional Solid State Step Control (models with more than 3 Steps)

Status Pilot Light for each Stage/Step

Listed by the Underwriters Laboratories

3 Year Limited Tank Warranty / 1 Year Parts Warranty (See warranty for details)

Optional Features

Place an X in the box by all options that apply

Alarm Bell Automatic Breaker

Automatic Feed Water Solenoid Valve Fused Disconnect

Ground Fault Detector

Kilowatt/Hour Meter

Main Power Disconnect

Manual Limit Toggle Switches (1 per Step) Automatic Timed Surface Blowoff System

OPTIONAL CONTROLS Modulating Step Control (Progressive)

5-Step

10-Step

15-Step

20-Step

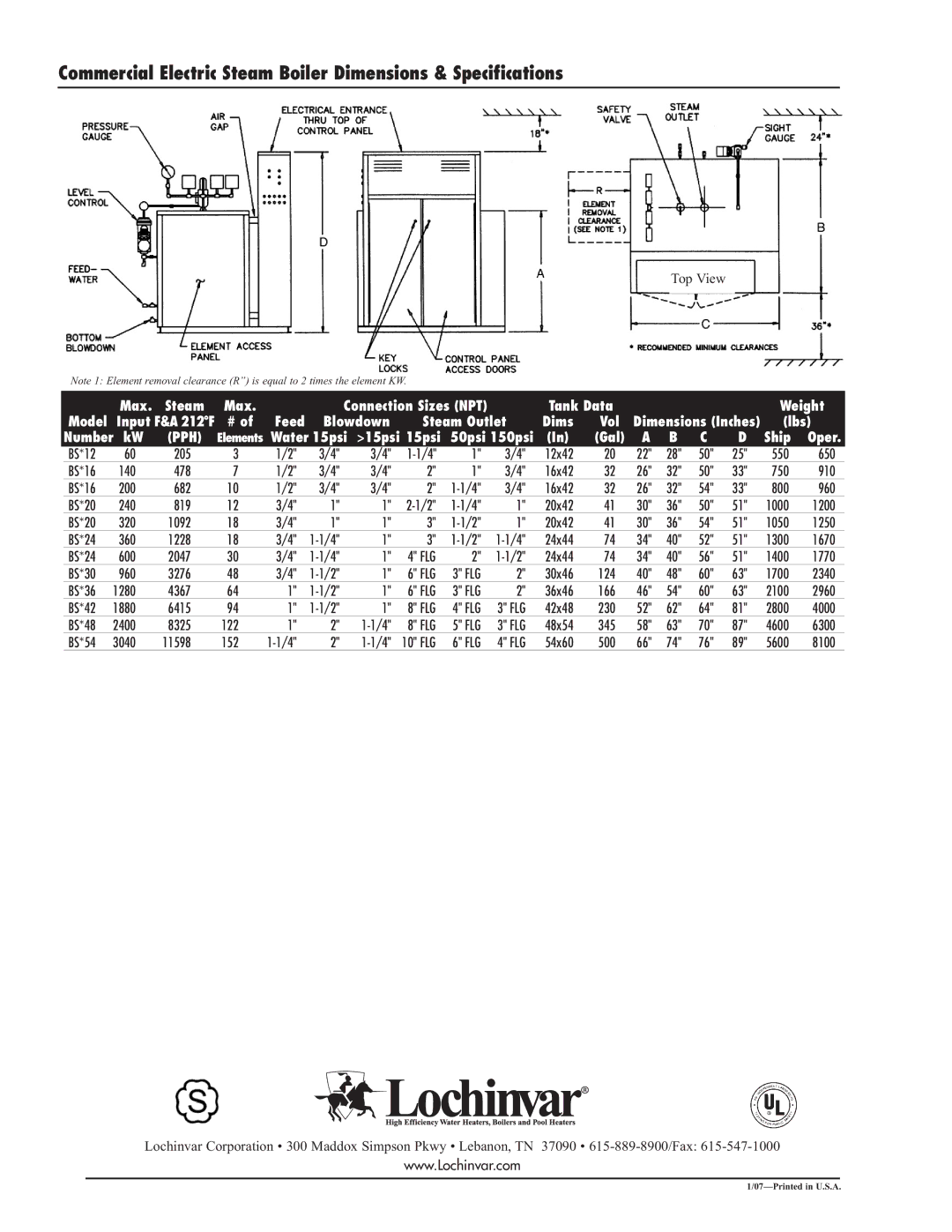

Page 1
