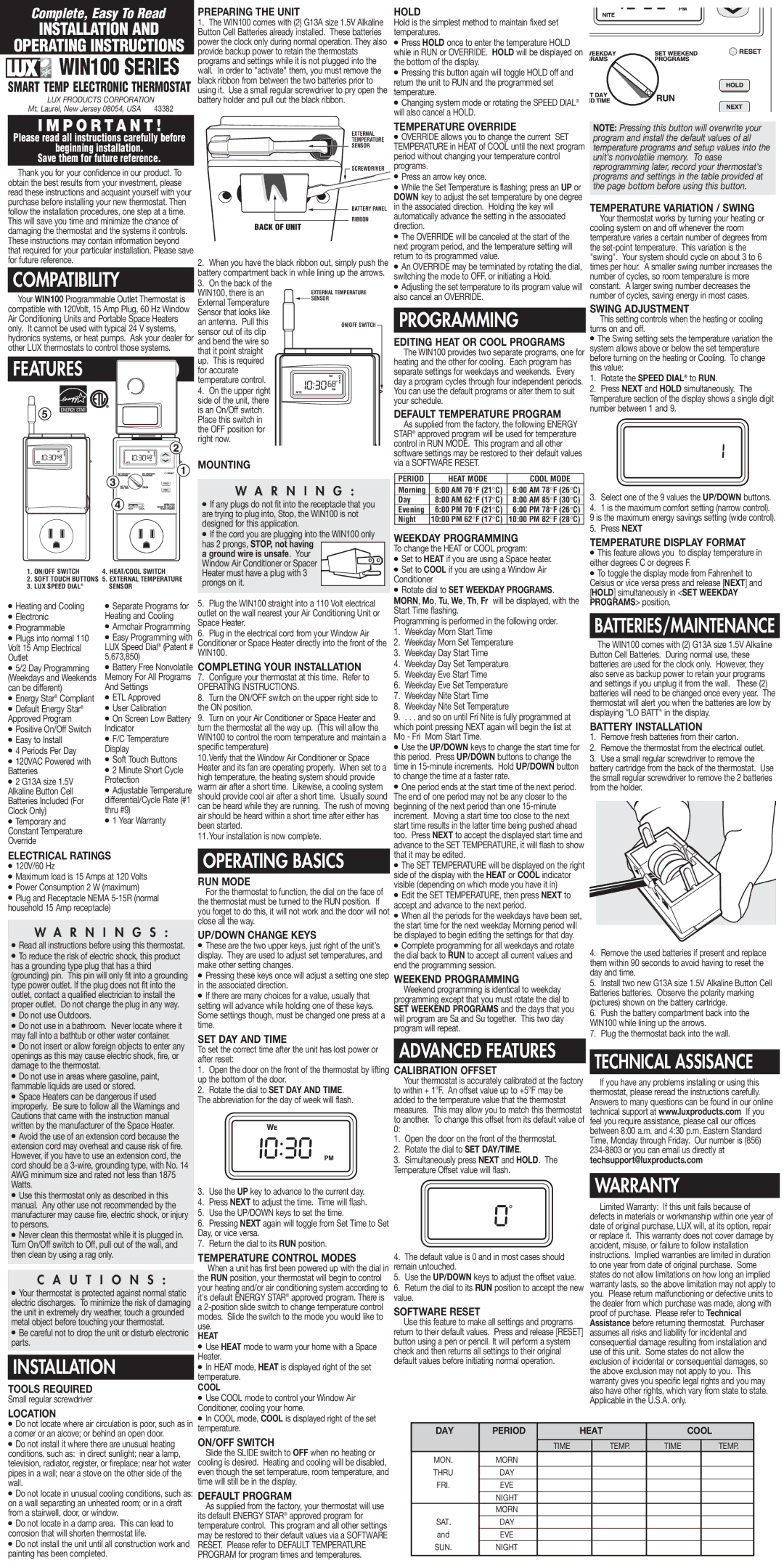

Complete, Easy To Read | PREPARING THE UNIT |
INSTALLATION AND | 1. The WIN100 comes with (2) G13A size 1.5V Alkaline |
Button Cell Batteries already installed. These batteries | |
OPERATING INSTRUCTIONS | power the clock only during normal operation. They also |
provide backup power to retain the thermostats | |
WIN100 SERIES | programs and settings while it is not plugged into the |
wall. In order to "activate" them, you must remove the | |
SMART TEMP ELECTRONIC THERMOSTAT | black ribbon from between the two batteries prior to |
using it. Use a small regular screwdriver to pry open the | |
LUX PRODUCTS CORPORATION | battery holder and pull out the black ribbon. |
Mt. Laurel, New Jersey 08054, USA 43382 |
|
I M P O R T A N T !
Please read all instructions carefully before
beginning installation.Save them for future reference.
Thank you for your confidence in our product. To obtain the best results from your investment, please read these instructions and acquaint yourself with your purchase before installing your new thermostat. Then follow the installation procedures, one step at a time. This will save you time and minimize the chance of damaging the thermostat and the systems it controls. These instructions may contain information beyond that required for your particular installation. Please save for future reference.
COMPATIBILITY
EXTERNAL
TEMPERATURE
SENSOR
SCREWDRIVER
BATTERY PANEL
RIBBON
BACK OF UNIT
2.When you have the black ribbon out, simply push the battery compartment back in while lining up the arrows.
Your WIN100 Programmable Outlet Thermostat is
3. On the back of the |
WIN100, there is an |
External Temperature |
EXTERNAL TEMPERATURE
SENSOR
HOLD
Hold is the simplest method to maintain fixed set temperatures.
●Press HOLD once to enter the temperature HOLD while in RUN or OVERRIDE. HOLD will be displayed on the bottom of the display.
●Pressing this button again will toggle HOLD off and return the unit to RUN and the programmed set temperature.
●Changing system mode or rotating the SPEED DIAL® will also cancel a HOLD.
TEMPERATURE OVERRIDE
●OVERRIDE allows you to change the current SET TEMPERATURE in HEAT of COOL until the next program period without changing your temperature control programs.
●Press an arrow key once.
●While the Set Temperature is flashing; press an UP or DOWN key to adjust the set temperature by one degree in the associated direction. Holding the key will automatically advance the setting in the associated direction.
●The OVERRIDE will be canceled at the start of the next program period, and the temperature setting will return to its programmed value.
●An OVERRIDE may be terminated by rotating the dial, switching the mode to OFF, or initiating a Hold.
●Adjusting the set temperature to its program value will also cancel an OVERRIDE.
NOTE: Pressing this button will overwrite your program and install the default values of all temperature programs and setup values into the unit's nonvolatile memory. To ease reprogramming later, record your thermostat's programs and settings in the table provided at the page bottom before using this button.
TEMPERATURE VARIATION / SWING
Your thermostat works by turning your heating or cooling system on and off whenever the room temperature varies a certain number of degrees from the
compatible with 120Volt, 15 Amp Plug, 60 Hz Window Air Conditioning Units and Portable Space Heaters only. It cannot be used with typical 24 V systems, hydronics systems, or heat pumps. Ask your dealer for other LUX thermostats to control those systems.
FEATURES
5
2
Sensor that looks like |
an antenna. Pull this |
sensor out of its clip |
and bend the wire so |
that it point straight |
up. This is required |
for accurate |
temperature control. |
4. On the upper right |
side of the unit, there |
is an On/Off switch. |
Place this switch in |
the OFF position for |
right now. |
ON/OFF SWITCH
1 3
4
1. ON/OFF SWITCH | 4. HEAT/COOL SWITCH |
2. SOFT TOUCH BUTTONS | 5. EXTERNAL TEMPERATURE |
3. LUX SPEED DIAL® | SENSOR |
MOUNTING
W A R N I N G :
●If any plugs do not fit into the receptacle that you are trying to plug into, Stop, the WIN100 is not designed for this application.
●If the cord you are plugging into the WIN100 only has 2 prongs, STOP, not having
a ground wire is unsafe. Your
Window Air Conditioner or Spacer Heater must have a plug with 3 prongs on it.
●Heating and Cooling
●Electronic
●Programmable
●Plugs into normal 110 Volt 15 Amp Electrical Outlet
●5/2 Day Programming (Weekdays and Weekends can be different)
●Energy Star® Compliant
●Default Energy Star® Approved Program
●Positive On/Off Switch
●Easy to Install
●4 Periods Per Day
●120VAC Powered with Batteries
●2 G13A size 1.5V Alkaline Button Cell Batteries Included (For Clock Only)
●Temporary and Constant Temperature Override
●Separate Programs for Heating and Cooling
●Armchair Programming
●Easy Programming with LUX Speed Dial® (Patent # 5,673,850)
●Battery Free Nonvolatile Memory For All Programs And Settings
●ETL Approved
●User Calibration
●On Screen Low Battery Indicator
●F/C Temperature Display
●Soft Touch Buttons
●2 Minute Short Cycle Protection
●Adjustable Temperature differential/Cycle Rate (#1 thru #9)
●1 Year Warranty
5.Plug the WIN100 straight into a 110 Volt electrical outlet on the wall nearest your Air Conditioning Unit or Space Heater.
6.Plug in the electrical cord from your Window Air Conditioner or Space Heater directly into the front of the WIN100.
COMPLETING YOUR INSTALLATION
7.Configure your thermostat at this time. Refer to
OPERATING INSTRUCTIONS.
8.Turn the ON/OFF switch on the upper right side to the ON position.
9.Turn on your Air Conditioner or Space Heater and turn the thermostat all the way up. (This will allow the WIN100 to control the room temperature and maintain a specific temperature)
10.Verify that the Window Air Conditioner or Space Heater and its fan are operating properly. When set to a high temperature, the heating system should provide warm air after a short time. Likewise, a cooling system should provide cool air after a short time. Usually sound can be heard while they are running. The rush of moving air should be heard within a short time after either has been started.
11.Your installation is now complete.
ELECTRICAL RATINGS
●120V/60 Hz
●Maximum load is 15 Amps at 120 Volts
●Power Consumption 2 W (maximum)
●Plug and Receptacle NEMA
W A R N I N G S :
● Read all instructions before using this thermostat. |
● To reduce the risk of electric shock, this product |
has a grounding type plug that has a third |
(grounding) pin. This pin will only fit into a grounding |
type power outlet. If the plug does not fit into the |
outlet, contact a qualified electrician to install the |
proper outlet. Do not change the plug in any way. |
● Do not use Outdoors. |
● Do not use in a bathroom. Never locate where it |
may fall into a bathtub or other water container. |
OPERATING BASICS
RUN MODE
For the thermostat to function, the dial on the face of the thermostat must be turned to the RUN position. If you forget to do this, it will not work and the door will not close all the way.
UP/DOWN CHANGE KEYS
●These are the two upper keys, just right of the unit’s display. They are used to adjust set temperatures, and make other setting changes.
●Pressing these keys once will adjust a setting one step in the associated direction.
●If there are many choices for a value, usually that setting will advance while holding one of these keys. Some settings though, must be changed one press at a time.
SET DAY AND TIME
PROGRAMMING
EDITING HEAT OR COOL PROGRAMS
The WIN100 provides two separate programs, one for heating and the other for cooling. Each program has separate settings for weekdays and weekends. Every day a program cycles through four independent periods. You can use the default programs or alter them to suit your schedule.
DEFAULT TEMPERATURE PROGRAM
As supplied from the factory, the following ENERGY STAR® approved program will be used for temperature control in RUN MODE. This program and all other software settings may be restored to their default values via a SOFTWARE RESET.
PERIOD | HEAT MODE | COOL MODE |
Morning | 6:00 AM 70°F (21°C) | 6:00 AM 78°F (26°C) |
Day | 8:00 AM 62°F (17°C) | 8:00 AM 85°F (30°C) |
Evening | 6:00 PM 70°F (21°C) | 6:00 PM 78°F (26°C) |
Night | 10:00 PM 62°F (17°C) | 10:00 PM 82°F (28°C) |
WEEKDAY PROGRAMMING
To change the HEAT or COOL program:
●Set to HEAT if you are using a Space heater.
●Set to COOL if you are using a Window Air Conditioner
●Rotate dial to SET WEEKDAY PROGRAMS. MORN, Mo, Tu, We, Th, Fr will be displayed, with the Start Time flashing.
Programming is performed in the following order.
1. Weekday Morn Start Time
2. Weekday Morn Set Temperature
3. Weekday Day Start Time
4. Weekday Day Set Temperature
5. Weekday Eve Start Time
6. Weekday Eve Set Temperature
7. Weekday Nite Start Time
8. Weekday Nite Set Temperature
9. . . . and so on until Fri Nite is fully programmed at which point pressing NEXT again will begin the list at Mo - Fri Morn Start Time.
●Use the UP/DOWN keys to change the start time for this period. Press UP/DOWN buttons to change the time in
●One period ends at the start time of the next period. The end of one period may not be any closer to the beginning of the next period than one
●The SET TEMPERATURE will be displayed on the right side of the display with the HEAT or COOL indicator visible (depending on which mode you have it in)
●Edit the SET TEMPERATURE, then press NEXT to accept and advance to the next period.
●When all the periods for the weekdays have been set, the start time for the next weekday Morning period will be displayed to begin editing the settings for that day.
●Complete programming for all weekdays and rotate the dial back to RUN to accept all current values and end the programming session.
WEEKEND PROGRAMMING
Weekend programming is identical to weekday programming except that you must rotate the dial to SET WEEKEND PROGRAMS and the days that you will program are Sa and Su together. This two day program will repeat.
SWING ADJUSTMENT
This setting controls when the heating or cooling turns on and off.
●The Swing setting sets the temperature variation the system allows above or below the set temperature before turning on the heating or Cooling. To change this value:
1. Rotate the SPEED DIAL® to RUN.
2. Press NEXT and HOLD simultaneously. The Temperature section of the display shows a single digit number between 1 and 9.
3.Select one of the 9 values the UP/DOWN buttons.
4.1 is the maximum comfort setting (narrow control).
9is the maximum energy savings setting (wide control).
5.Press NEXT
TEMPERATURE DISPLAY FORMAT
●This feature allows you to display temperature in either degrees C or degrees F.
●To toggle the display mode from Fahrenheit to Celsius or vice versa press and release [NEXT] and [HOLD] simultaneously in <SET WEEKDAY PROGRAMS> position.
BATTERIES/MAINTENANCE
The WIN100 comes with (2) G13A size 1.5V Alkaline Button Cell Batteries. During normal use, these batteries are used for the clock only. However, they also serve as backup power to retain your programs and settings if you unplug it from the wall. These (2) batteries will need to be changed once every year. The thermostat will alert you when the batteries are low by displaying "LO BATT" in the display.
BATTERY INSTALLATION
1.Remove fresh batteries from their carton.
2.Remove the thermostat from the electrical outlet.
3.Use a small regular screwdriver to remove the battery cartridge from the back of the thermostat. Use the small regular screwdriver to remove the 2 batteries from the holder.
4.Remove the used batteries if present and replace them within 90 seconds to avoid having to reset the day and time.
5.Install two new G13A size 1.5V Alkaline Button Cell Batteries batteries. Observe the polarity marking (pictures) shown on the battery cartridge.
6.Push the battery compartment back into the WIN100 while lining up the arrows.
7.Plug the thermostat back into the wall.
● Do not insert or allow foreign objects to enter any |
openings as this may cause electric shock, fire, or |
damage to the thermostat. |
● Do not use in areas where gasoline, paint, |
flammable liquids are used or stored. |
● Space Heaters can be dangerous if used |
improperly. Be sure to follow all the Warnings and |
Cautions that came with the instruction manual |
written by the manufacturer of the Space Heater. |
● Avoid the use of an extension cord because the |
extension cord may overheat and cause risk of fire. |
However, if you have to use an extension cord, the |
cord should be a |
AWG minimum size and rated not less than 1875 |
To set the correct time after the unit has lost power or after reset:
1.Open the door on the front of the thermostat by lifting up the bottom of the door.
2.Rotate the dial to SET DAY AND TIME.
The abbreviation for the day of week will flash.
WE
ADVANCED FEATURES |
| ||
TECHNICAL ASSISANCE | |||
CALIBRATION OFFSET | |||
| Your thermostat is accurately calibrated at the factory | If you have any problems installing or using this | |
to within + 1°F. An offset value up to +5°F may be | thermostat, please reread the instructions carefully. | ||
added to the temperature value that the thermostat | Answers to many questions can be found in our online | ||
measures. This may allow you to match this thermostat | technical support at www.luxproducts.com If you | ||
to another. To change this offset from its default value of | feel you require assistance, please call our offices | ||
0: |
| between 8:00 a.m. and 4:30 p.m. Eastern Standard | |
1. | Open the door on the front of the thermostat. | Time, Monday through Friday. Our number is (856) | |
2. | Rotate the dial to SET DAY/TIME. | ||
3. | Simultaneously press NEXT and HOLD. The | techsupport@luxproducts.com | |
Temperature Offset value will flash.
Watts. |
● Use this thermostat only as described in this |
manual. Any other use not recommended by the |
manufacturer may cause fire, electric shock, or injury |
to persons. |
● Never clean this thermostat while it is plugged in. |
Turn On/Off switch to Off, pull out of the wall, and |
then clean by using a rag only. |
●Your thermostat is protected against normal static electric discharges. To minimize the risk of damaging the unit in extremely dry weather, touch a grounded metal object before touching your thermostat.
●Be careful not to drop the unit or disturb electronic parts.
INSTALLATION
TOOLS REQUIRED
Small regular screwdriver
LOCATION
3.Use the UP key to advance to the current day.
4.Press NEXT to adjust the time. Time will flash.
5.Use the UP/DOWN keys to set the time.
6.Pressing NEXT again will toggle from Set Time to Set Day, or vice versa.
7.Return the dial to its RUN position.
TEMPERATURE CONTROL MODES
When a unit has first been powered up with the dial in the RUN position, your thermostat will begin to control your heating and/or air conditioning system according to it's default ENERGY STAR® approved program. There is a
HEAT
● Use HEAT mode to warm your home with a Space |
Heater. |
● In HEAT mode, HEAT is displayed right of the set |
temperature. |
COOL |
● Use COOL mode to control your Window Air |
Conditioner, cooling your home. |
● In COOL mode, COOL is displayed right of the set |
4.The default value is 0 and in most cases should remain untouched.
5.Use the UP/DOWN keys to adjust the offset value.
6.Return the dial to its RUN position to accept the new value.
SOFTWARE RESET
Use this feature to make all settings and programs
return to their default values. Press and release [RESET] button using a pen or pencil. It will perform a system check and then returns all settings to their original default values before initiating normal operation.
WARRANTY
Limited Warranty: If this unit fails because of defects in materials or workmanship within one year of date of original purchase, LUX will, at its option, repair or replace it. This warranty does not cover damage by accident, misuse, or failure to follow installation instructions. Implied warranties are limited in duration to one year from date of original purchase. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Please return malfunctioning or defective units to the dealer from which purchase was made, along with proof of purchase. Please refer to Technical Assistance before returning thermostat. Purchaser assumes all risks and liability for incidental and consequential damage resulting from installation and use of this unit. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state. Applicable in the U.S.A. only.
●Do not locate where air circulation is poor, such as in a corner or an alcove; or behind an open door.
●Do not install it where there are unusual heating conditions, such as: in direct sunlight; near a lamp, television, radiator, register, or fireplace; near hot water pipes in a wall; near a stove on the other side of the wall.
●Do not locate in unusual cooling conditions, such as: on a wall separating an unheated room; or in a draft from a stairwell, door, or window.
●Do not locate in a damp area. This can lead to corrosion that will shorten thermostat life.
●Do not install the unit until all construction work and painting has been completed.
temperature. |
ON/OFF SWITCH
Slide the SLIDE switch to OFF when no heating or cooling is desired. Heating and cooling will be disabled, even though the set temperature, room temperature, and time will still be in the display.
DEFAULT PROGRAM
As supplied from the factory, your thermostat will use its default ENERGY STAR® approved program for temperature control. This program and all other settings may be restored to their default values via a SOFTWARE RESET. Please refer to DEFAULT TEMPERATURE PROGRAM for program times and temperatures.
DAY | PERIOD |
| HEAT |
| COOL | ||
|
| TIME |
| TEMP. | TIME |
| TEMP. |
MON. | MORN |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
THRU | DAY |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FRI. | EVE |
|
|
|
|
|
|
| NIGHT |
|
|
|
|
|
|
| MORN |
|
|
|
|
|
|
SAT. | DAY |
|
|
|
|
|
|
and | EVE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SUN. | NIGHT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
