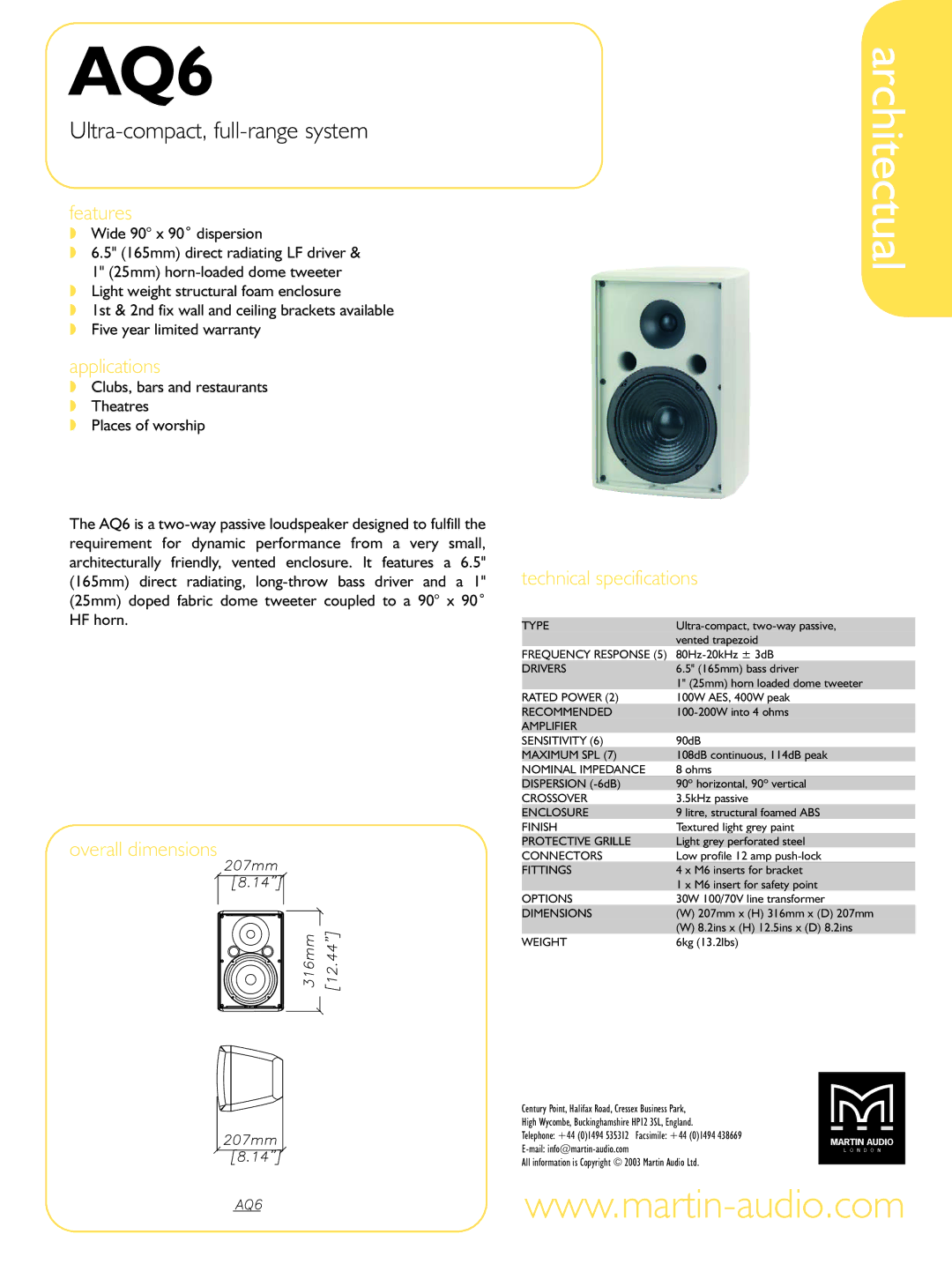

AQ6
Ultra-compact, full-range system
features
Wide 90° x 90˚ dispersion
6.5" (165mm) direct radiating LF driver &
1" (25mm) horn-loaded dome tweeter
Light weight structural foam enclosure
1st & 2nd fix wall and ceiling brackets available
Five year limited warranty
applications
Clubs, bars and restaurants
Theatres
Places of worship
Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669
E-mail: info@martin-audio.com
All information is Copyright © 2003 Martin Audio Ltd.
The AQ6 is a two-way passive loudspeaker designed to fulfill the
requirement for dynamic performance from a very small,
architecturally friendly, vented enclosure. It features a 6.5"
(165mm) direct radiating, long-throw bass driver and a 1"
(25mm) doped fabric dome tweeter coupled to a 90° x 90˚
HF horn.
architectual
www.martin-audio.com
overall dimensions
technical specifications
TYPE Ultra-compact, two-way passive,
vented trapezoid
FREQUENCY RESPONSE (5) 80Hz-20kHz ±3dB
DRIVERS 6.5" (165mm) bass driver
1" (25mm) horn loaded dome tweeter
RATED POWER (2) 100W AES, 400W peak
RECOMMENDED 100-200W into 4 ohms
AMPLIFIER
SENSITIVITY (6) 90dB
MAXIMUM SPL (7) 108dB continuous, 114dB peak
NOMINAL IMPEDANCE 8 ohms
DISPERSION (-6dB) 90º horizontal, 90º vertical
CROSSOVER 3.5kHz passive
ENCLOSURE 9 litre, structural foamed ABS
FINISH Textured light grey paint
PROTECTIVE GRILLE Light grey perforated steel
CONNECTORS Low profile 12 amp push-lock
FITTINGS 4 x M6 inserts for bracket
1 x M6 insert for safety point
OPTIONS 30W 100/70V line transformer
DIMENSIONS (W) 207mm x (H) 316mm x (D) 207mm
(W) 8.2ins x (H) 12.5ins x (D) 8.2ins
WEIGHT 6kg (13.2lbs)
